I've run into a problem using a layout sketch part in a top-downdesign.

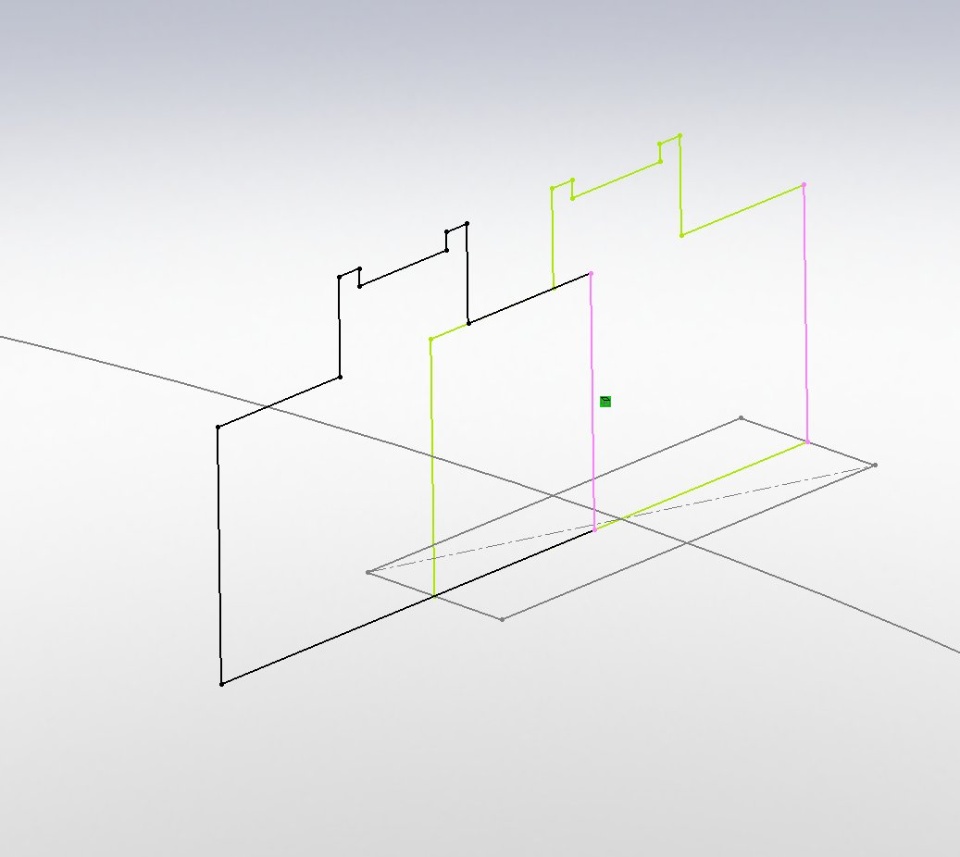

I have a layout sketch with various sections on it that I save as apart. I then insert the layout part into other components. In theother components, I convert layout sketch entities to new sketchesand then make features from the new sketches. However, if I changethe layout sketch, the new sketches do not change. The image showsan example. The black sketch entities are all made by convertingthe green sketch. After the layout part is changed, the "on edge"relation exists as shown, but the geometry is not "on edge".(Although I am)
What is wrong here?
