Hi there
I have a case that came up on the exam here I couldnt really figure out a reasonable way to do.

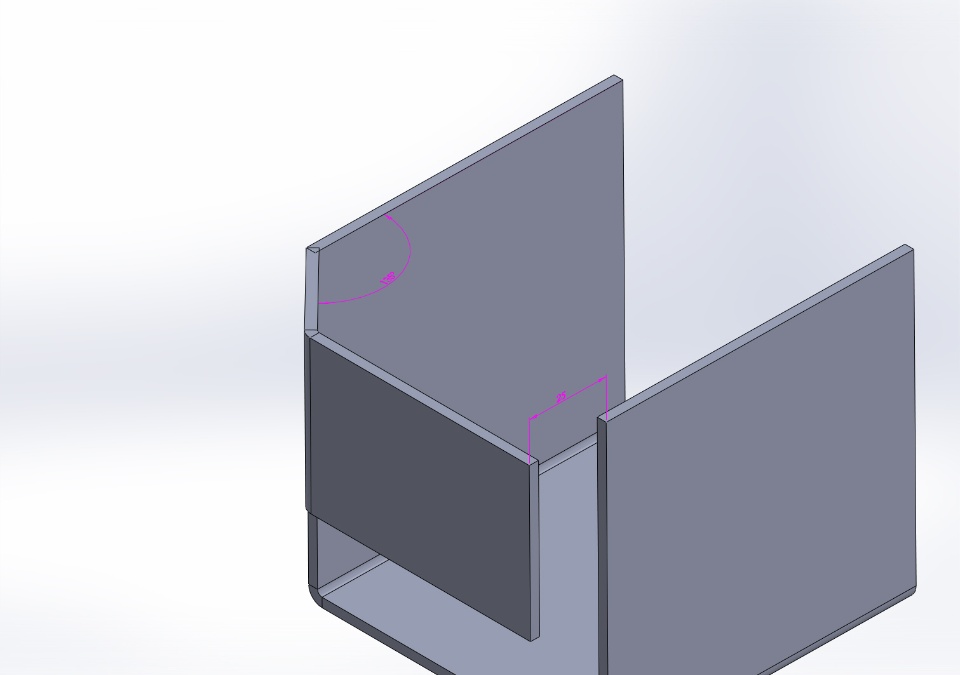

As my example show to create the two highlighted flanges with only the parallell distance and angle given. Intersection not given.
See attached file, done with a a new Base-Flange to illustrate but it doesnt merge and create bend. I only feel dumb now even I passed it took me a whole lotta time. Its late and Im sure there are several ways to do it.
Thanks
