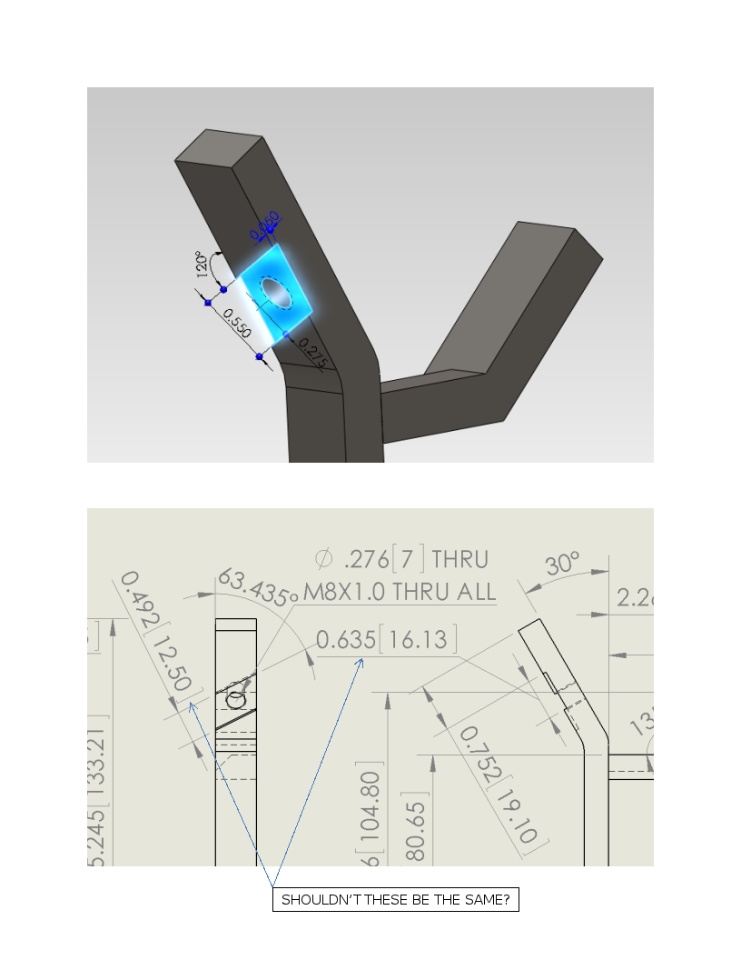

I need help dimensioning the slot on the angled bracket. I noticed the dimensions on the drawing are not matching up to each other. I have pointed out the two dimensions. I am guessing SW is having problems with the complex angles. Any suggestions on how to call this slot out? Any help is appreciated.
Thanks,
Mark
SolidworksDrawings And Detailing
