Hello,

I need to calculate the temperature of a mediaplayer with a heat sink. It can be placed in four different positions:

- cooling fins vertical

- cooling fins horizontal

- heat sink flat on the bottom

- heat sink flat on the top

I already have the mediaplayer and a report, but when I want to create a cut plot it won't work. How do I create the cut plots of the four positions? The power output is 12W.

Hope some one can help me with the pictures, I've tried numerous solutions for the past couple of hours. I tried to work with this: http://www.solidworks.com/sw/docs/flow_sim_studentwb_2011_eng.pdf and this http://web.vtc.edu/elm/projects/2010-2011/HotAirControlVent/Senior%20Project%20II/SolidWorks/Tutorials/Computer%20Cooling%20FloWorks.pdf

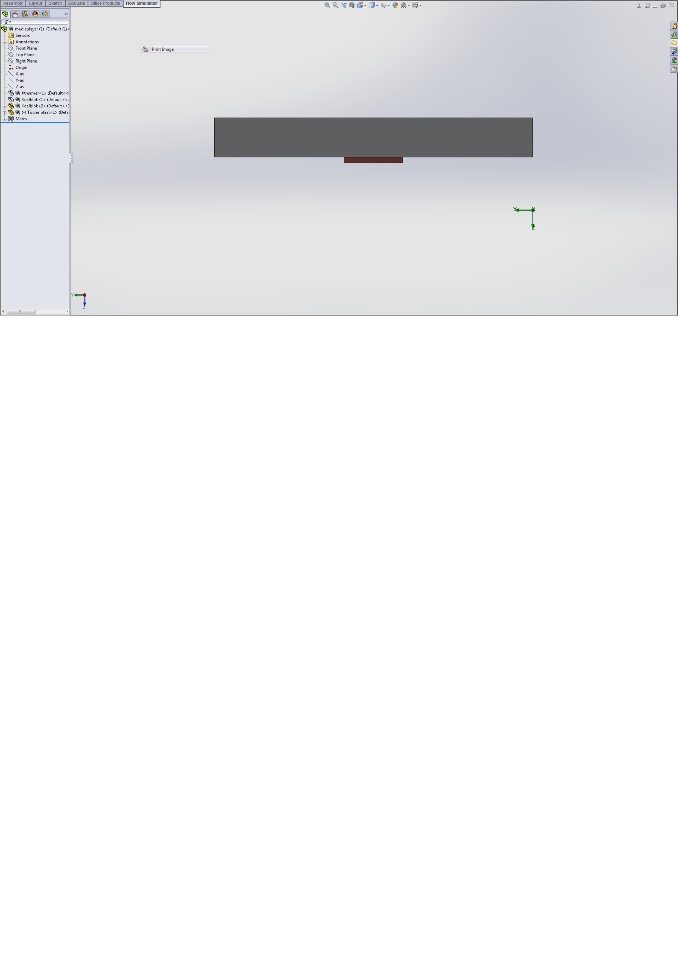

I've attached a picture of my failed result.
