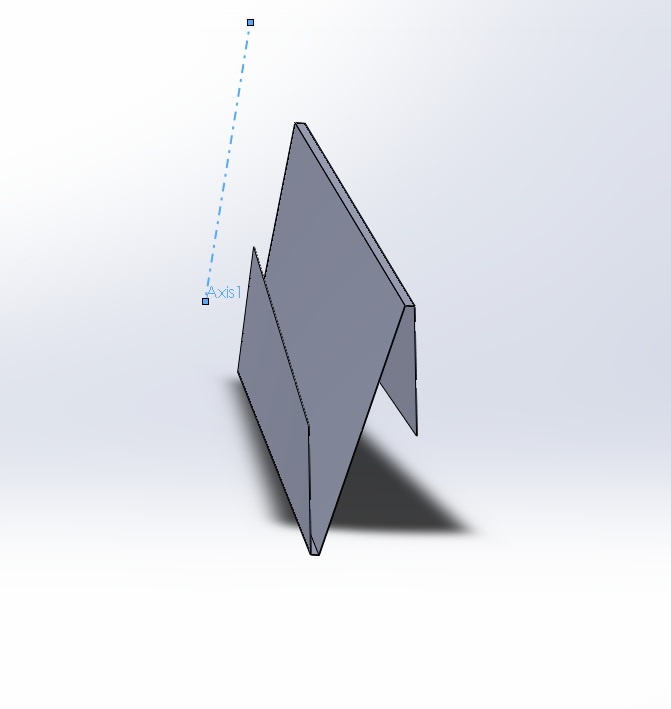

I am trying to create a circular pattern around the axis shown in the below picture.

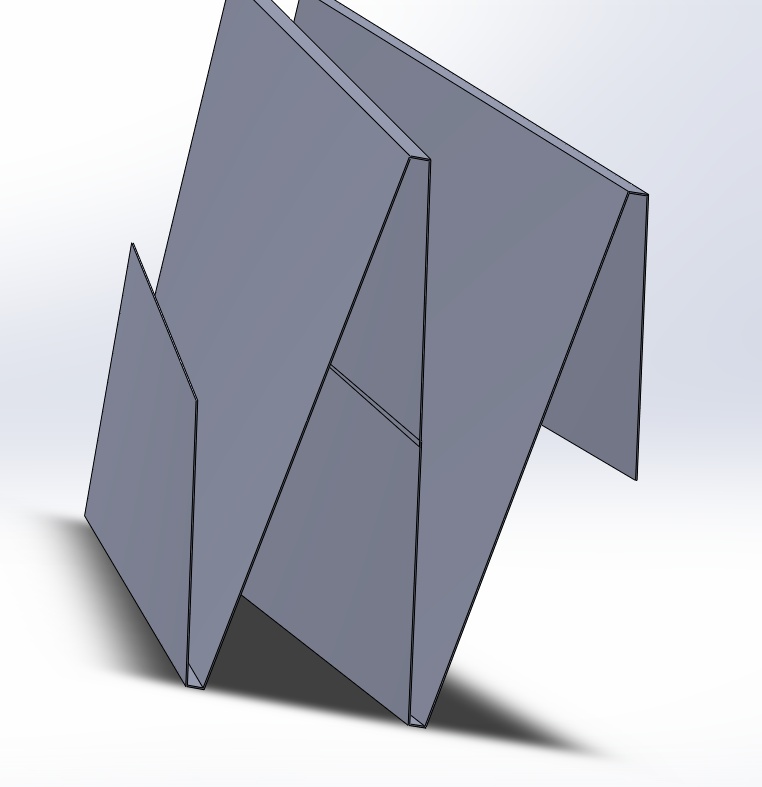

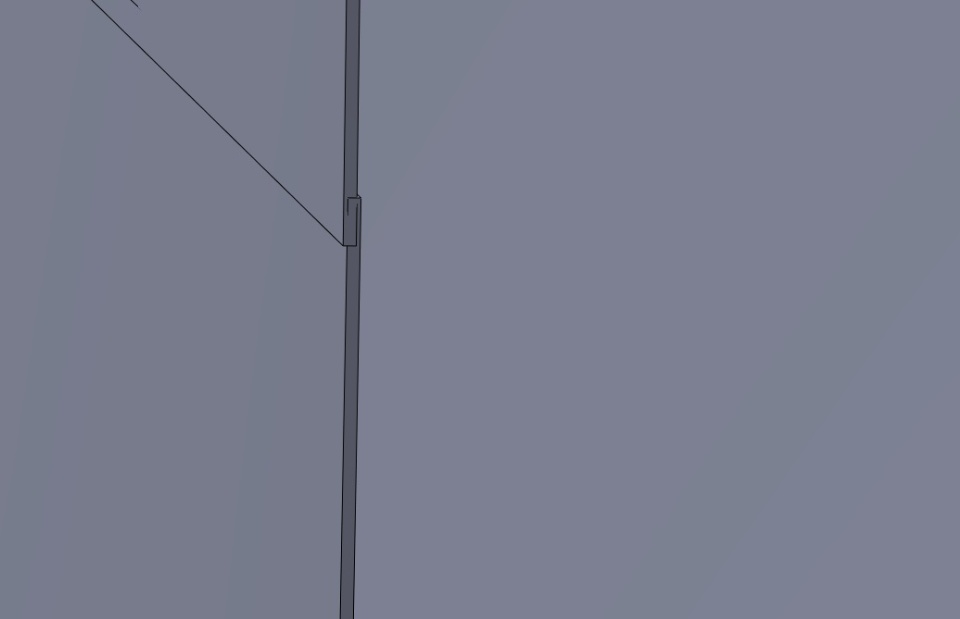

When I create a pattern, the edges do not co incide. Below pictures show this .
This feature has been created using loft, with three planes and a single guide plane. The sketches are such that they are not supposed to co incide, but they do when pattern is created.
Any help appreciated.
Thanks.
