Hey folks, I’m trying to implement DimXpert dimensions on a part that I want to do a tolerance analysis on. However, none of the dimensions I try to add are visible in the graphics area.

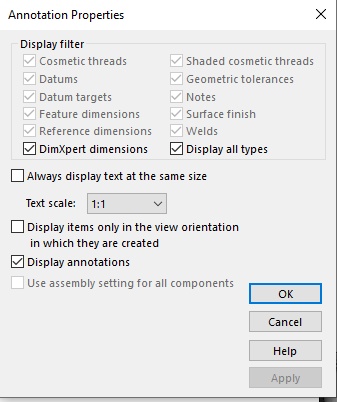

I’ve already checked that my annotation display options are correct:

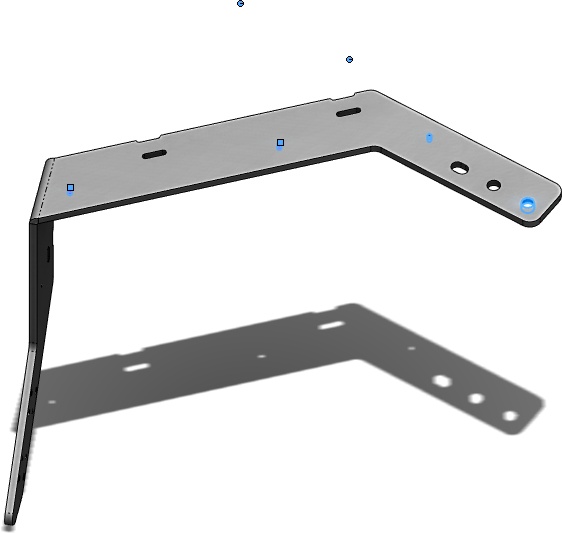

If I click in just the right spot, I get the “shadow” of a dimension, but can’t get it to really appear:
