Hello all,

I am working on line diagram on Solidwork Electrical.

I have completed symbol insertion. Now I am drawing cables and facing two problems as below-

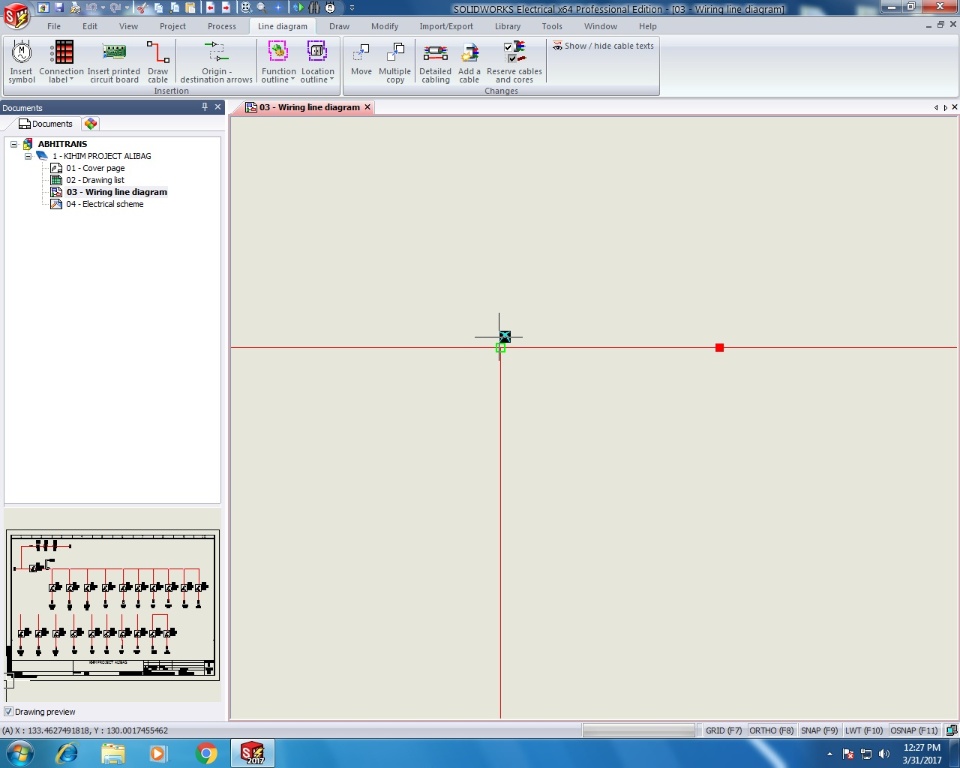

1) I am getting this mark near cursor while drawing the cable. What does this mean? ( Refer image "cable")

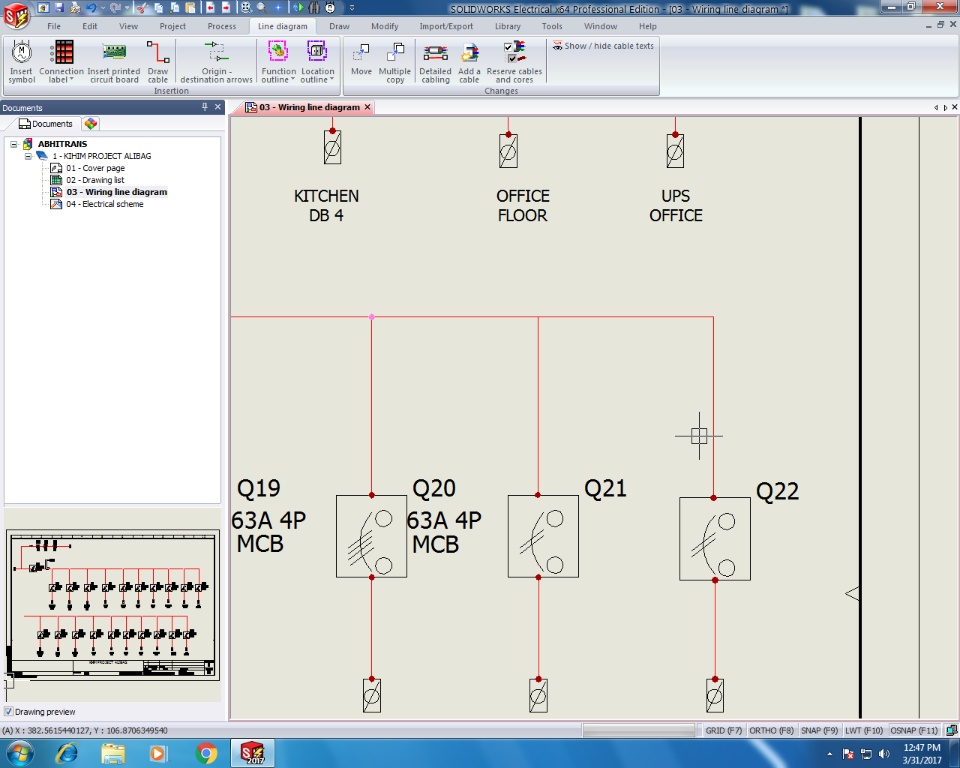

2) For some cables, I am getting correct junction point ( pink dot) at the junction. But for some cables at junction points I am not getting the pink dot. Eg- In the image , above component Q21 junction point is not getting created. What should be the reason? ( Please refer image "cable 2")

Thanks in advance!
