Hello all,

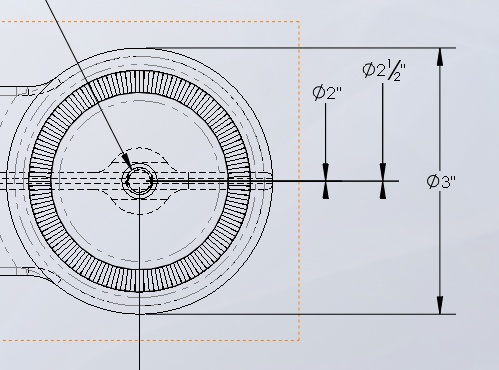

I'm trying to dimension two circles, and when I put the dimensions on, the following happens (the circles are 2" and 2.5" - the numbers are correct, but the lines aren't to the edge of the circles):

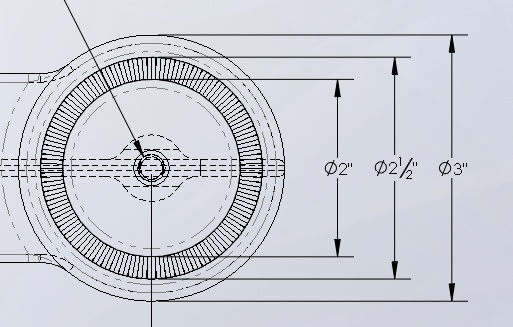

When I take out the break view, they instantly "snap" into the position I want them to appear:
I need the broken out view so the part fits on the sheet, but I need the dimension to look like the 2nd picture... any way I can fix this?
