Hi there,

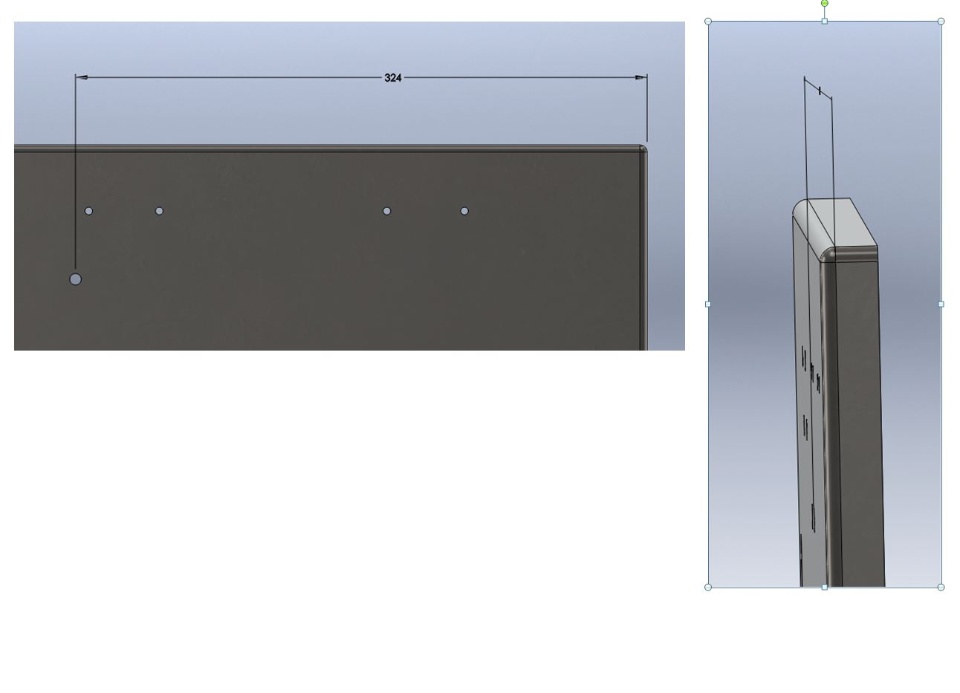

Is there any way to get round this problem I'm getting when doing an reference dimension. I want the dimension to be normal to the top plane so as to give the true dimension of the hole, but as you can see from the image it gives it to the edge of the fillet. One workaround I’ve used before was to draw some sketch geometry to attach the dim to, however I was wondering if there was a more elegant solution?

Thanks,

Jack
