I want to create a dimension as shown for a revolved component. Since the required deminsion cannot be specified by smart dimension, I went for creation a construction line and placed the dimension from there.

But when i rebuild, the dimension goes out of drawing view. This frustrates me everytime I encounter this.

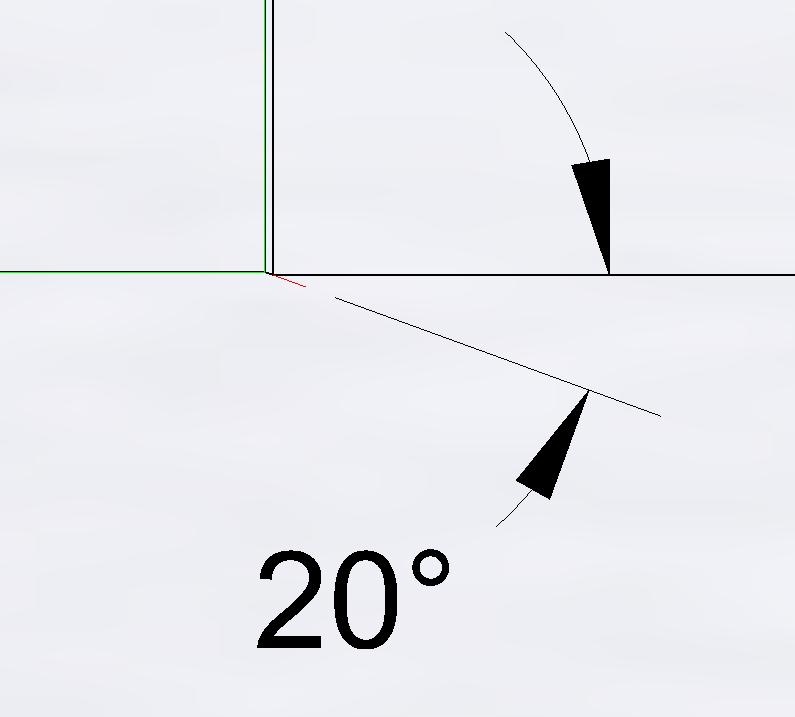

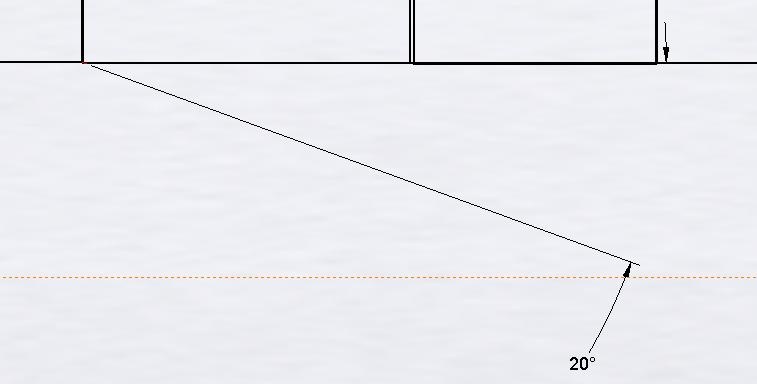

See attached pics.

Is there any solutiom or turn around method to show this dimension?
