I just moved from 2014 SW to 2016 sp5. I love the option to "align dim to edge", but it doesn't break the dimension line around the dim text.
The 15.94 dim is easy to create with a virtual sharp (there is a small radius on the corners), but I don't want that.

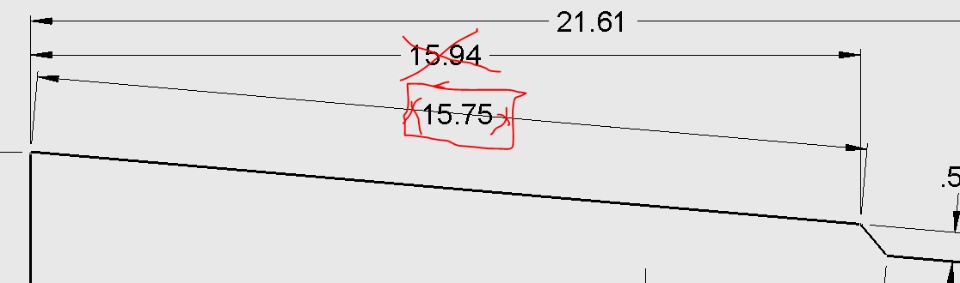

I want the 15.75 dimension but the dimension line runs thru the text. I've tried all I know in options & can't get what I want.
The dim "outside" option looks like this: Yuck!
Any help?
Thanks
