Tip of the day: Consistent balloon sizes

3DVIA Composer: Tip of the day

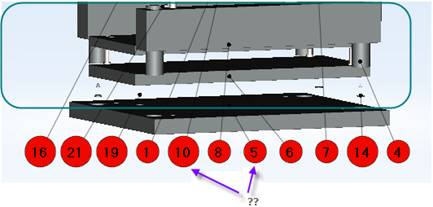

Have you noticed that when you create balloons in 3DVIA Composer,invariably you get inconsistent diameters depending on # ofcharacters in Bom-ID. (see balloon-1)


Solution:

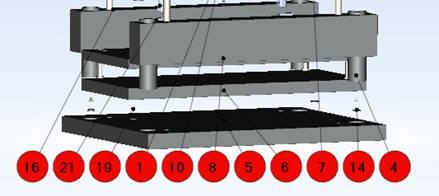

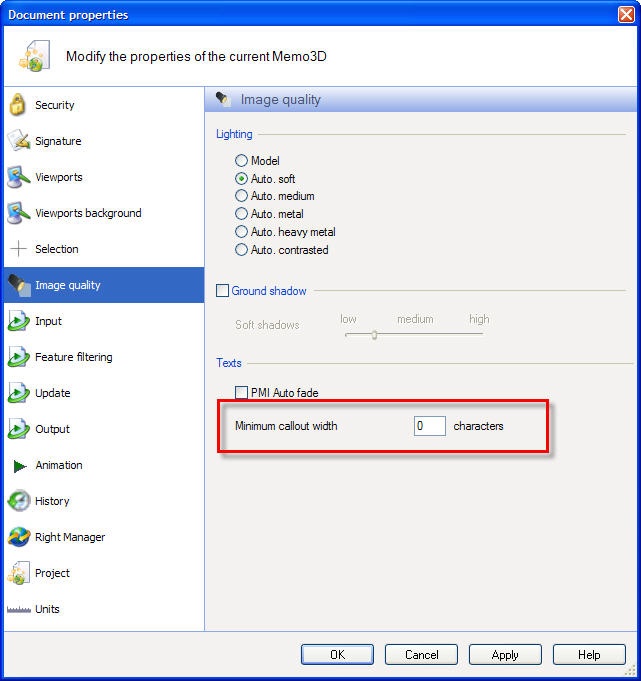

You can create consistent size balloons (see Balloon-2) by changingthe Document properties (under Edit menu). (see Balloon-3).
To apply this setting to all documents, change the same settings in"Default Document Properties" (under settings menu).

Best Regards


SolidworksComposer
