I have a problem with the creation of an sectionview of anpart.

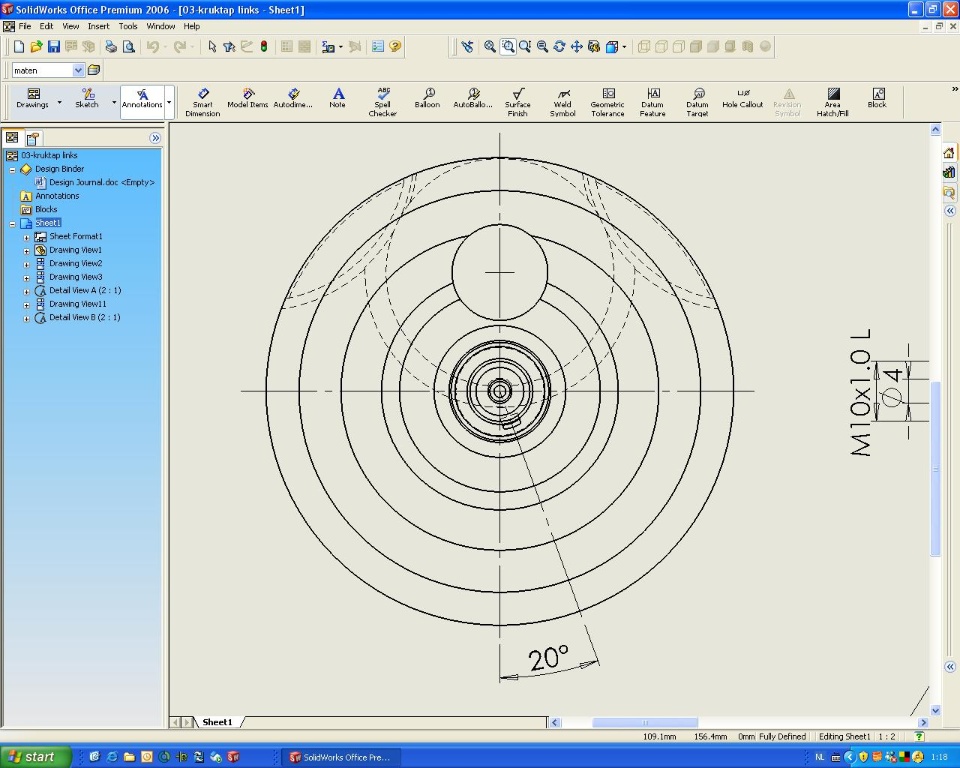

I have the part posted as an attachment (image)
Normally when you make an aligned section view it would be normalto seclect the upper vertical center-line and the line on the 20degree angle. When all is selected you must be able to drag thesection view to the bottom/top or left/right.

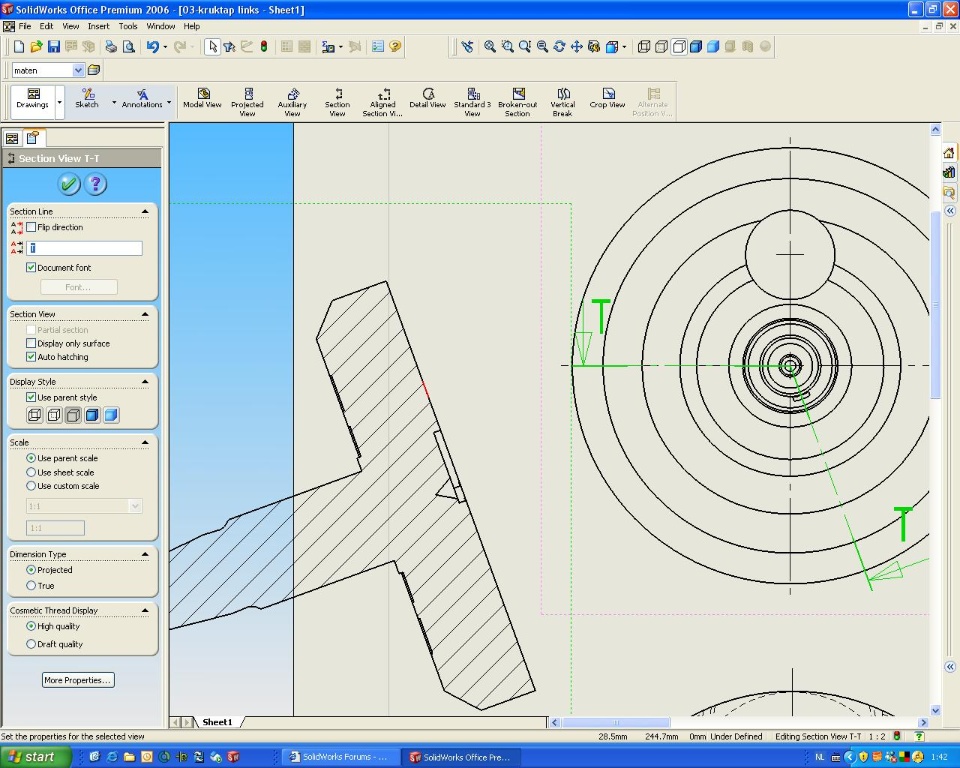

When I choose the aligned section view function and select theupperpoint, centerpoint and the point on the bottom right (under20degrees) I get the section view (cutted out) but when I drag itto the right, it only can be placed under an angle of 20 degrees.
How can I simply drag it down or to the right?
The story is a little bit hard to understand, but with the imageattached, it must be clearer.
Thanks in advance!
JoostSolidworksDrawings And Detailing
