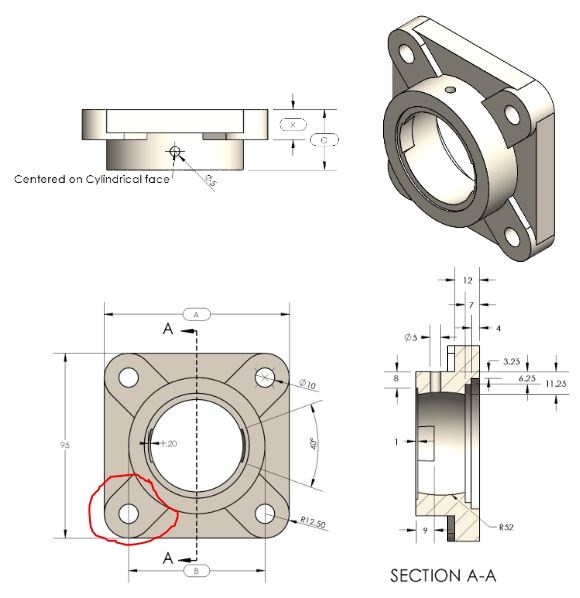

I am trying to model the following part. However, I don't really understand how to read the part circled by a red pen. For example, what is the width and how to draw the R12.50 arc(It doesn't seem to give enough information)?
