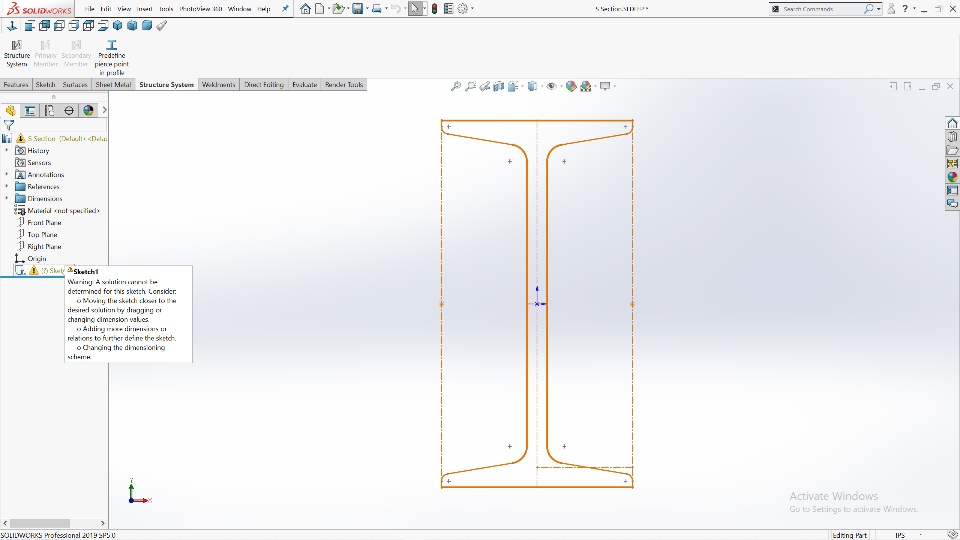

I understand sometimes basing geometry on "construction lines", however, the construction line seen highlighted in the attached image is needless for defining the profile.

Does use of this construction line serve any purpose relative to the ANSI STANDARD?

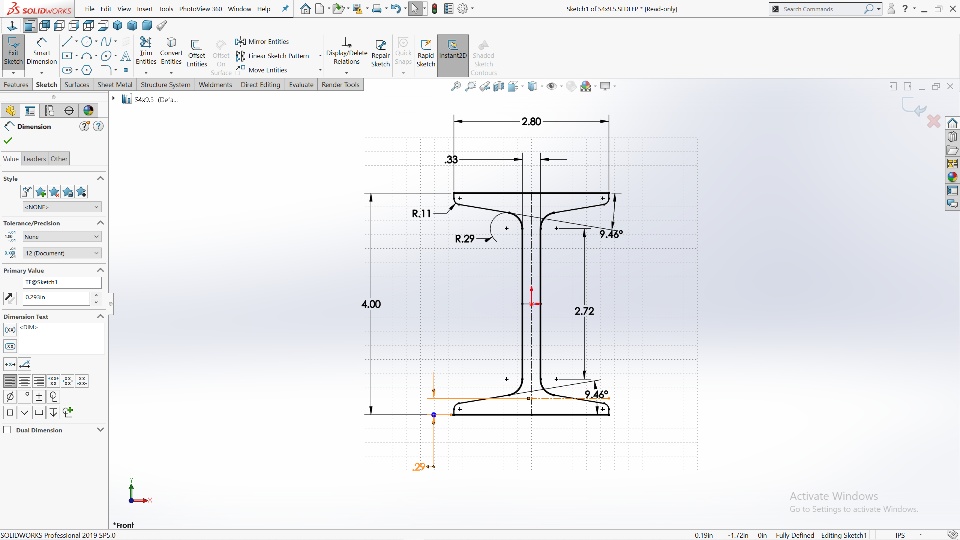

I am curious whether it is leading to the error seen in Image 2 when applying a Design Table?
