Hi,

I have a engraver that has 4 plates acting as a dust shield, I want to add the configurations to place the tip from the Home position to the following:

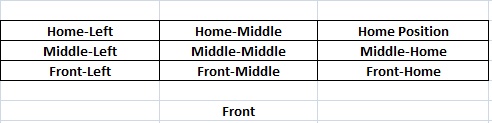

Here is a list of configurations I want:

Front-Home-Tip Extended

Front-Home-Tip Retracted

Front-Left-Tip Extended

Front-Left-Tip Retracted

Front-Middle-Tip Extended

Front-Middle-Tip Retracted

Home Position-Tip Extended

Home Position-Tip Retracted

Home-Left-Tip Extended

Home-Left-Tip Retracted

Home-Middle-Tip Extended

Home-Middle-Tip Retracted

Middle-Left-Tip Extended

Middle-Left-Tip Retracted

Middle-Home-Tip Extended

Middle-Home-Tip Retracted

Middle-Middle-Tip Extended

Middle-Middle-Tip Retracted

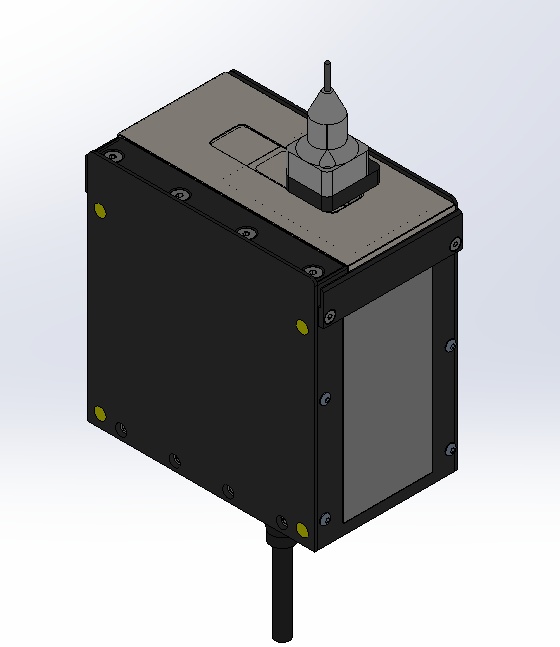

I have added limited constraints from each plate to the enclosure and to the nose of the engraver, I am not sure if it is SolidWorks being confused or what, but I keep having mates flip either alignment or dimensions and really at my wits ends as this really shouldn't be that difficult as I had it working once in a free state and could drag the tip anywhere I wished.

Attached are the files and data sheet for the unit, all the mates are present just need to add additional configurations and unsuppress the mates, I have tried reordering the mates and components, and nothing seems to work.

Let me know if I am asking solidworks to do something beyond its capabilities and fighting myself or if there is a better trick vs laying out the exact position of each plate at each position, I have seen this type of guarding on many things and can't imagine I am the first to attempt to mate it so it behaves like real life.

Thanks for any insight in advance,

Files are in solidworks 2016 SP 5.0

Regards,
