I have a PCB component that uses a single chamfer in its pad. I'm trying to make the footprint in Solidworks PCB 2018.
- Pads can only have chamfers on all 4 corners by choosing Octagonal shape
- Solid Regions can be made into custom shapes, but cannot be assigned a pad designator
-Fills Cannot be given custom shapes or designators.

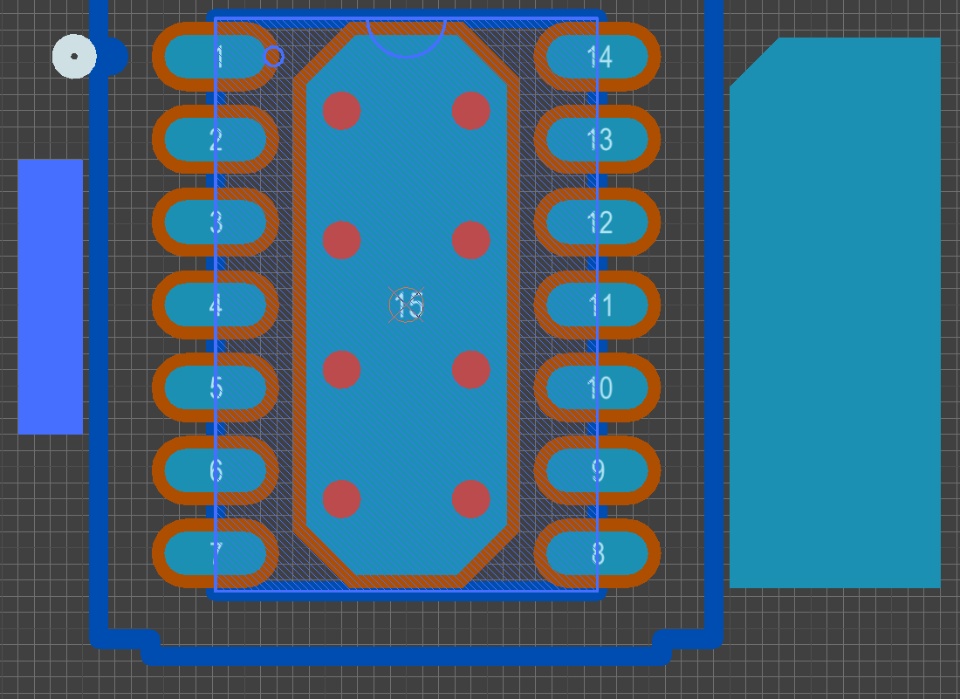

The only thing I've tried that sort of worked was making multiple pads of the same designator, and superimposing them. I made an octagonal shaped pad that had 4 chamfers, and then I made small square pads of the same designator to cover the 3 unwanted corner chamfers. But this feels like a bad practice.
