Hi , I would like to quick add the suffix "TYP", "MIN", "MAX" to my dimension. In order to achieve that I modified the gtol.sym file as follows:
;;
;; ---------------------------------------------------------------------------
;;
;; Custom GudelUK symbols
;;
#Cust-GUK,Custom GUK Symbols
*TYP,Typical
A,TEXT 0,0,
*MAX,Maximum
A,TEXT 0,0,
*MIN, Minimum
A,TEXT 0,0,

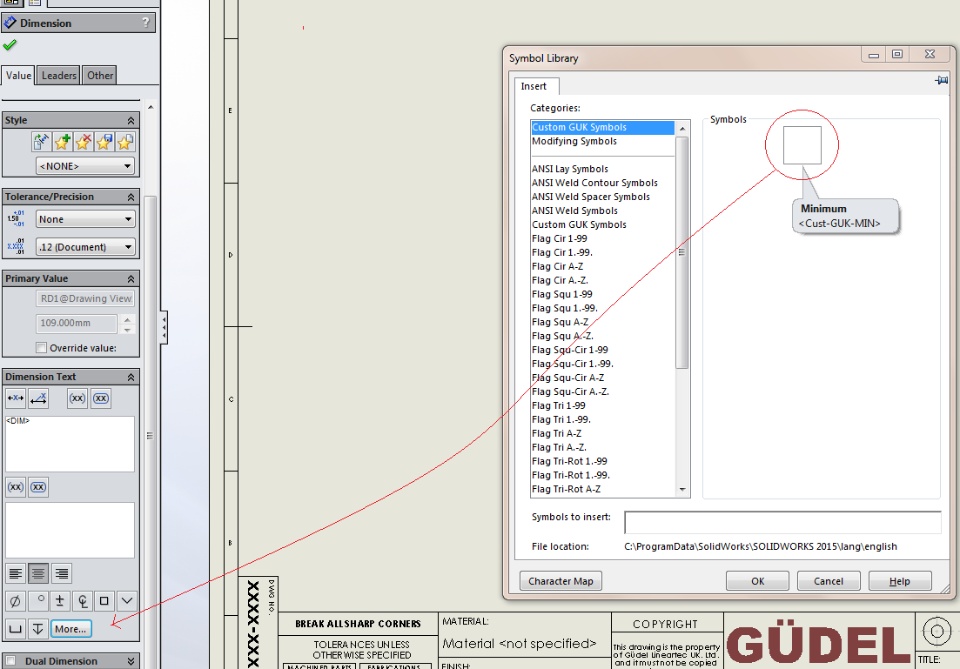

I can see the new "library" on the list but the three new symbols are empty. What am I doing wrong?
If I manage to put it right, is it possible to add the symbol to the bottom of "Dimension Text" window, next to the "More" button?
