Due to the limitation of Solidworks to allow the creation offorshortened linear dimensions for use in cropped views, etc. Ihave created a double arrow symbol to be used un conjunction withhiding a dimension/extension line in a linear dimension.

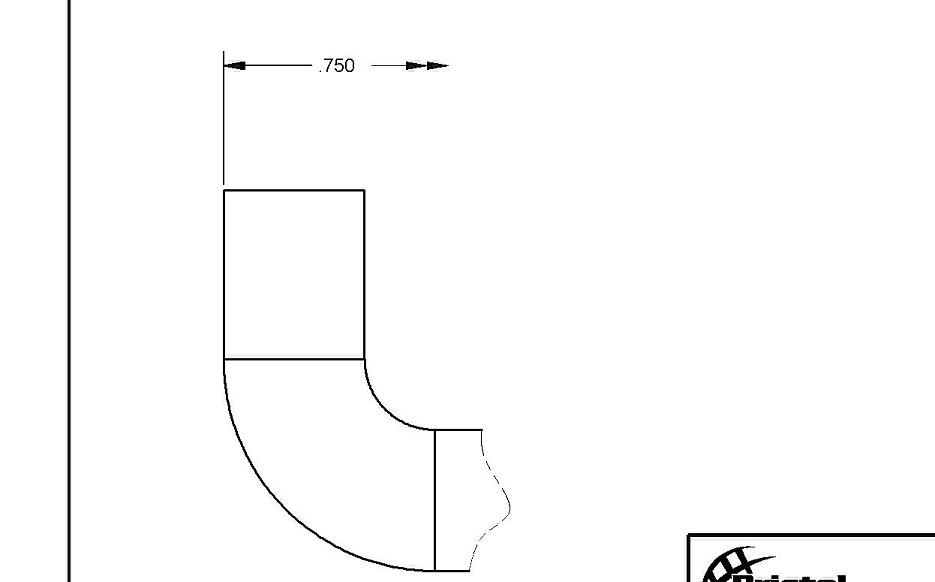

It looks fine, except that the line weight appears to be slightlyless than the opposite dimension line. Since it is a text symbolthe line weight, etc. appears to be controlled by the text font andnot the line font.
Does anyone know of a way to heavy this up?SolidworksDrawings And Detailing
