I'm still working on the macro described in this post:

I've implemented a sort of roundabout workaround that was described therein. Now the existence of silhouette edges has introduced a new problem.

Part of my macro's functionality is to update existing machine mark annotations so that they agree with the values saved into the face to which they are attached. Those values could change after the annotations are created so it is necessary to traverse all annotations and update their style (single,double, triple nabla).

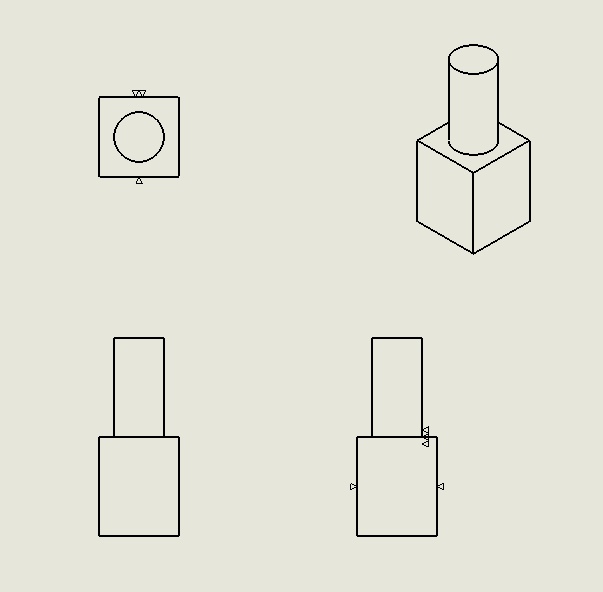

This worked fine until I started inserting machine marks on silhouette edges. With marks attached to silhouette edges, I'm getting type mismatch errors.

In order to determine which face a machine mark corresponds to, I need to call Annotation::GetAttachedEntities3. This function returns an array of entities. The type of those entities is obtained by calling Entity::GetType on each entity in that array or by calling Annotation::GetAttachedEntityTypes. The latter returns an "Array of longs or integers (see Long vs. Integer) that indicate the attached entity types as defined in swSelectType_e".

The bold line in the following function is where "type mismatch" is being thrown. Clearly I am checking whether or not this is an edge before attempting to assign it to swEntity.

Public Function getExistingMark(swVisibleEdge As SldWorks.edge, existingMarks As Variant) As SldWorks.SFSymbol
    Dim swAnnotation    As SldWorks.Annotation
    Dim swSFSymbol      As SldWorks.SFSymbol
    Dim swEntity    As SldWorks.Entity
    Dim swEdge      As SldWorks.edge

    Dim swAttachedEntityType    As swSelectType_e

    Dim vSFSymbol   As Variant
    Dim vAttachedEntityTypes    As Variant
    Dim vAttachedEntity         As Variant
    Dim vAttachedEntities       As Variant

    Dim i As Integer
    Dim which_mark As Integer
    Dim oldID As Integer
    Dim newID As Integer


    oldID = swVisibleEdge.GetID
    newID = oldID + 11
    swVisibleEdge.SetId newID

    Set getExistingMark = Nothing
    which_mark = 0

    If IsArrayAllocated(existingMarks) Then
        For Each vSFSymbol In existingMarks
            Set swSFSymbol = vSFSymbol
            If Not swSFSymbol Is Nothing Then
                Set swAnnotation = swSFSymbol.GetAnnotation
                vAttachedEntityTypes = swAnnotation.GetAttachedEntityTypes
                vAttachedEntities = swAnnotation.GetAttachedEntities3
                If IsArrayAllocated(vAttachedEntityTypes) And IsArrayAllocated(vAttachedEntities) Then
                    For i = LBound(vAttachedEntityTypes) To UBound(vAttachedEntityTypes)

                        If vAttachedEntityTypes(i) = swSelectType_e.swSelEDGES Then
                            Set swEntity = vAttachedEntities(i)
                            Set swEdge = swEntity
                            If swEdge.GetID = swVisibleEdge.GetID Then
                                Set getExistingMark = swSFSymbol
                                Set existingMarks(which_mark) = Nothing
                                Exit For
                            End If
                        End If
                    Next i
                End If
                If Not getExistingMark Is Nothing Then
                    Exit For
                End If
            End If
            which_mark = which_mark + 1
        Next vSFSymbol
    End If
    swVisibleEdge.SetId oldID
End Function

Upon further investigation, I can see that there is no guarantee of correspondence between the types returned by GetAttachedEntityTypes and the type of the objects that are returned by GetAttachedEntities3.

a) I would expect this function to always return an array of entities. The fact that there are objects in that returned array that raise a type mismatch when I attempt to assign them to entities would indicate that the function was given the wrong name.

b) When the function manages to return actual entities, I would expect the order of entities returned to correspond to the order of types returned by the two aforementioned functions.
