I am pleased to invite you to hear my presentation on the Eurocentral 3DEXPERIENCE Virtual Conference, on November 26-27th.

​​​​​​​

My presentation

Lightweight Engineering is just a must today: one wants to reduce the weight of non-critical components to provide the best experience to the customers by adding new services.

In parallel, one can see the emergence of new manufacturing technology such as Additive Manufacturing: one can now manufacture parts, lighter, as they just use micro-structures (so-called lattices) in place of plain material (heavier by nature).

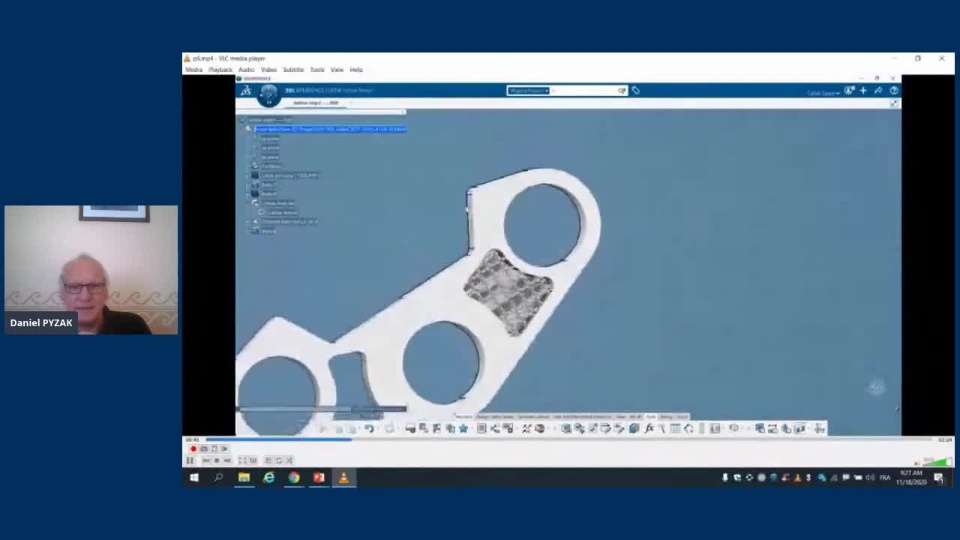

3DEXPERIENCE 2021XFD03 (available since 3rd week of November 2020) allows (Controlled Availability only for now)  to design these lattices but also validate the latticed product by FEA and of course, 3D print them. This is wat will be shown live and discussed in the session.

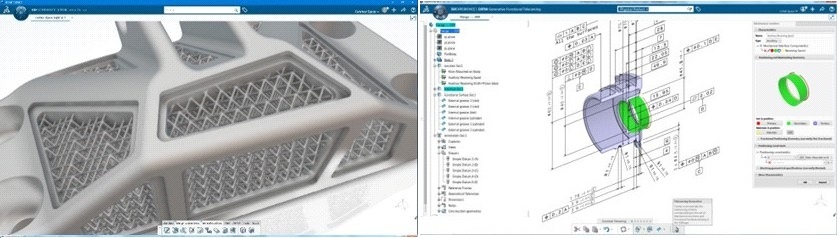

The second part of the live talk si around 3D Master: most of  the delivered drawings and their 3D models parents are inconsistent and the consequence is a lot of errors occurring at the manufacturing stage. So the idea of dimensioning and tolerancing directly on the 3D model has been adopted since many years by the Aerospace industry and in the last 5 years by more and more  other industries. But it’s not that easy to dimension and create tolerances in 3d as the big constraint is to stick to strict standards: only this compliancy with standards avoids misinterpretations  leading to the same inconsistency when 2D drawings were the master. Good news, since this summer, CATIA deliver a paradigm shift capability to automatically generate this fully standards compliant dimensioning and tolerancing schema from the description of the various mechanical interfaces between the parts of a given assembly. Interested? Curious? Let’s attend this session to discover what is possible now in 3DEXPERIENCE CATIA2021X​​​​​​​
