Project Description:
This belt conveyor designed for transfer material between different machines  in the factory. This system optimizes production by smoothly transporting wasted material to recycling area.

Considerations/Achievements:
Designed for stability, efficiency, and ease of operation, ensuring seamless integration into production workflows. The structure is engineered to handle varying shapes while prioritizing safety, and adaptability to different working environments.

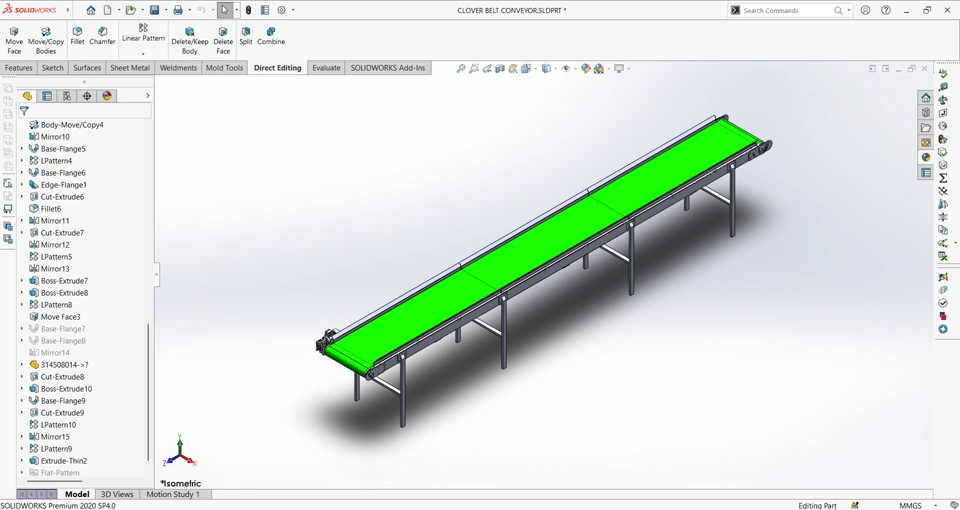

Utilized SolidWorks for design and development, incorporating weldment and sheet metal features. SolidWorks simulations (structural analysis, motion study) were conducted to assess stress distribution, deformation, and system stability before manufacturing.

#SolidWorks #MechanicalDesign #MaterialHandling #Logistics #Engineering

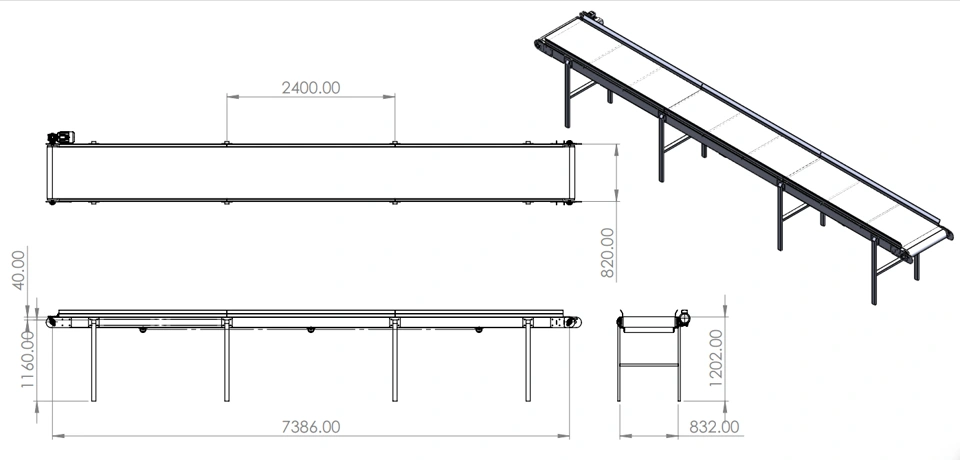

dimentions

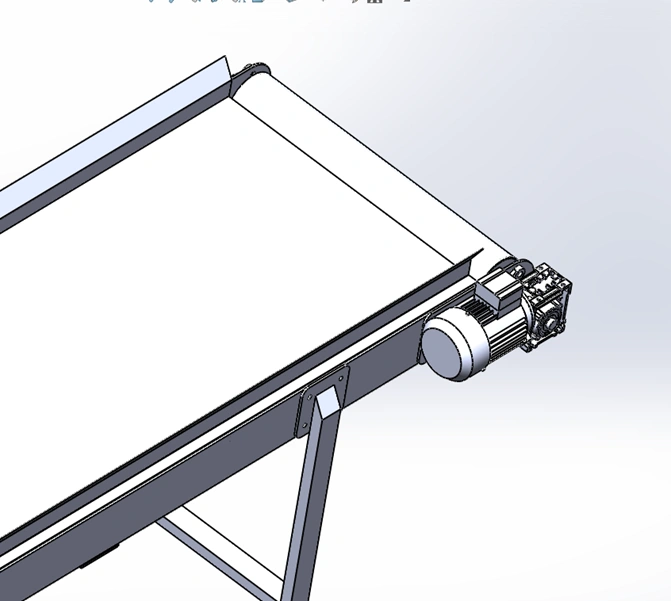

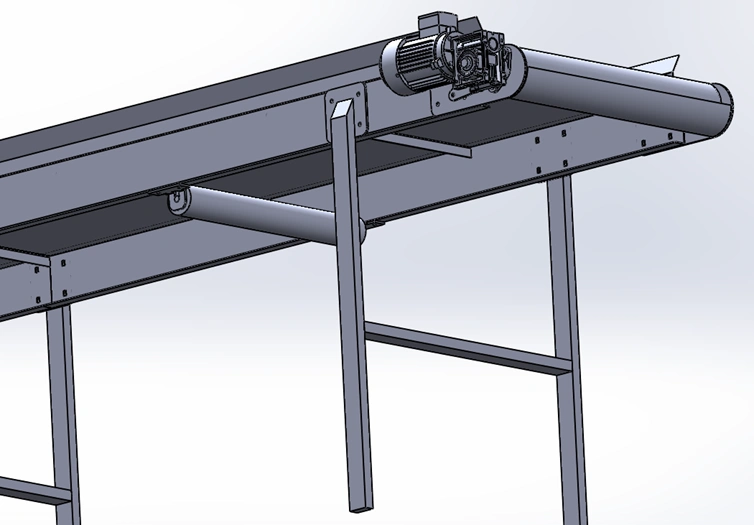

worm gear motor side

Idler

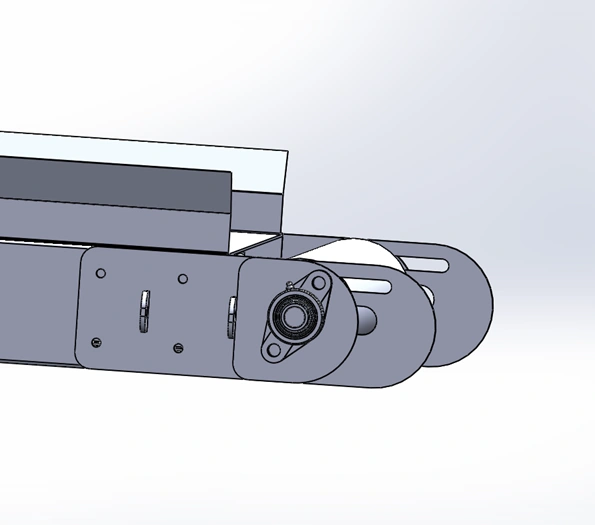

pulley tension and UCFL bearing type
