Surpac Tip - How to export drillholes with labels as a 3D PDF

When working in GEOVIA Surpac, drillholes can not be directly exported out to PDF with colour or text, but there is a tip to achieve the same results.


Part 1. Using the Planes Method.

Open up the drillhole database

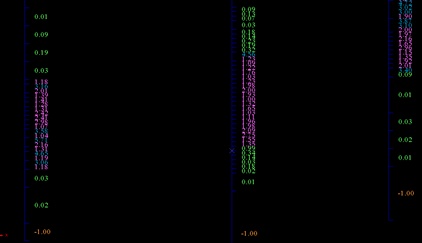

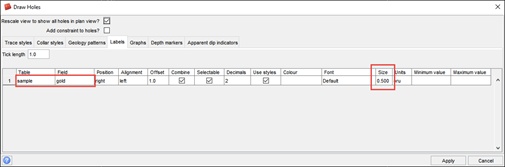

  • Display the drillholes with a white default colour trace and the labels. Make sure you have set the text size within the drillhole display form

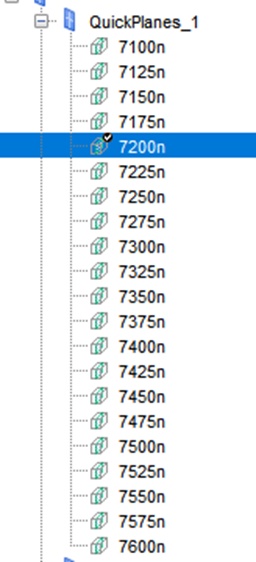

  • Set up the section via planes and activate a section.

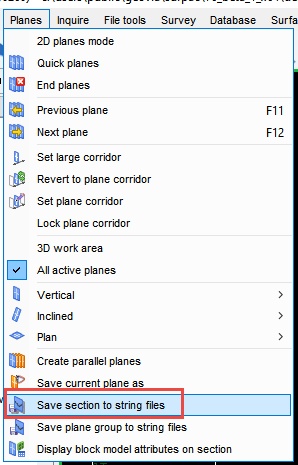

  • Planes>save section as string file.

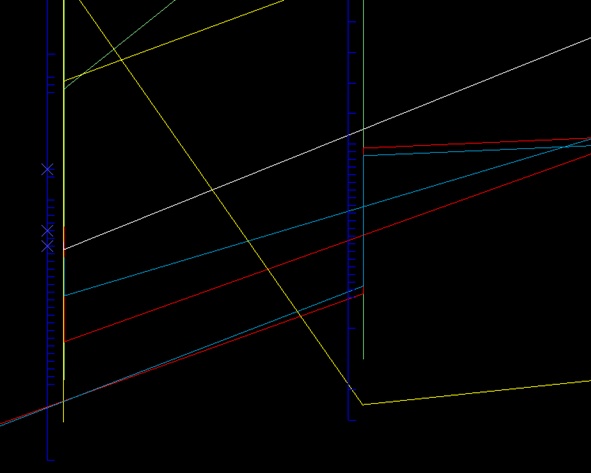

  • Open up the string file and adjust the styles so the Dfields are displayed.

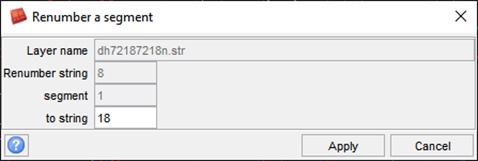

  • Edit>string>renumber.. renumber all the ticks and the drillhole trace to string 2.

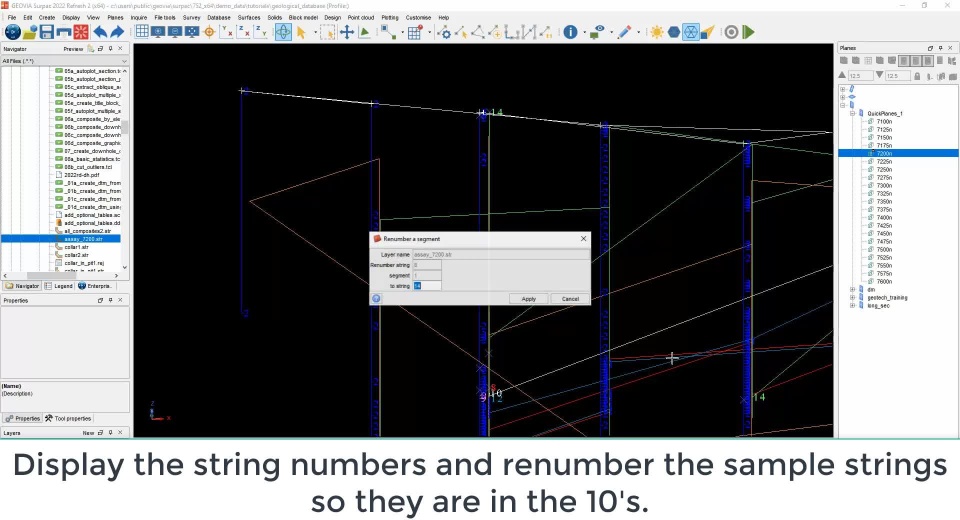

  • Renumber all the text strings to be in the 10’s. For example string 8 will be 18. This will leave the tick strings the same numbers.

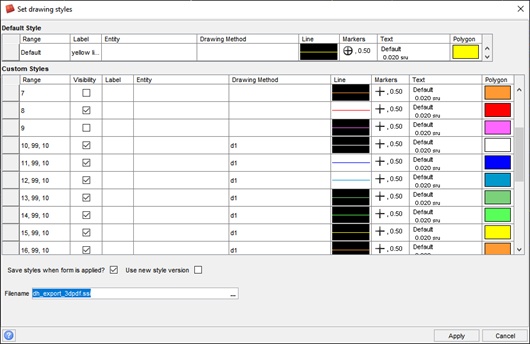

  • Customise>Display Properties>Strings and Points. Adjust all the styles for the strings in the 10’s to display as D1. Save the styles file to a new name and then save the string file.

  • Save the styles file to a new name and then save the string file.

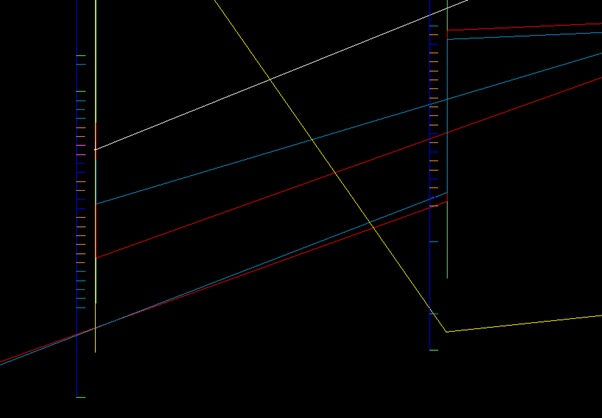

  • Reset graphics and open up the string file and make sure its opening and displaying correctly in the graphics window.


  • Delete the string at the top which is the collar string

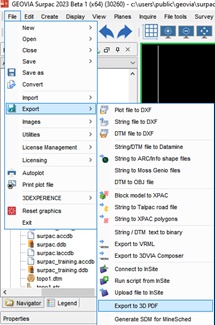

  • ​​​​​​​File>export>export to 3D PDF​​​​​​​

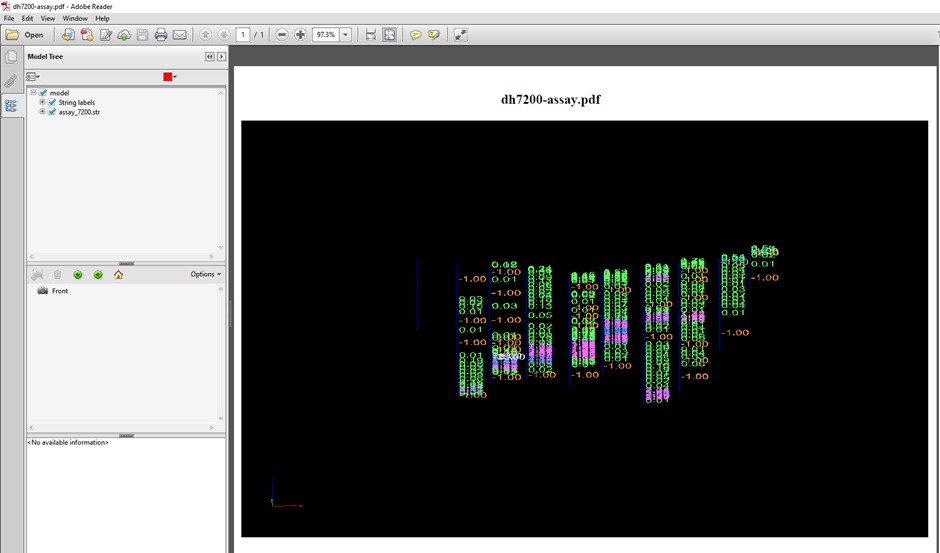

  • Open up the pdf.

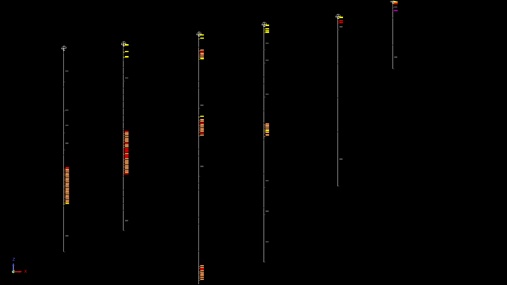

  • The drillhole data is now exported to a 3D PDF with Labels.


See video tutorial:

If you have any questions please reach out to @KF ​​​​​​​via the conversations tab or leave a comment below.
