This article, as part of the serie of article about UDO​​​​​​​, will describe each part of the UDO Procedure file that should be deployed to the server for a new UDO.

Note: this manual way of creating a new UDO (javascript file) is On-Premise only

A. File structure

​​​​​​​
​​​​​​​

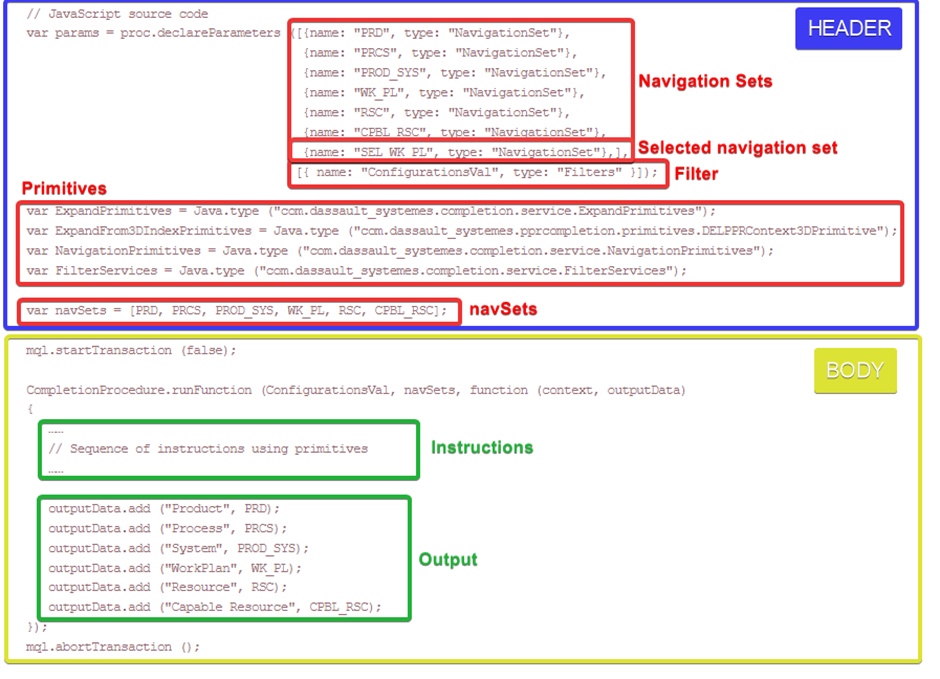

Header section

This part of the procedure contains a declaration of the types of Navigation Sets that are used and shared with the command to open data in an authoring session, and a declaration of the classes where primitives and auxiliary instructions are used.

It contains 3 main elements:

1. Parameters used in the Body:

a. Navigation Sets declaration: sets of objects categorized by type

• “PRD” for Products
• “PRCS” for MBOM objects
• “WK_PL” for Workplans and Operations
• “PROD_SYS” for General Systems and Operations
• “RSC” for Resources
• “CPBL_RSC” for Capable Resource References (different from RSC, cannot be mixed)

​​​​​​​b. Selected occurrence’s navigation set: set of objects the user will select when starting the prodedure

• “SEL_PRD” : for selected EBOM objects
• “SEL_PRCS” : for selected MBOM objects
• “SEL_WK_PL” : for selected Worplans/Operations
• “SEL_PROD_SYS” : for selected General Systems/Operations
• “SEL_RSC” : for selected resources
• “SEL_CPBL_RSC” : for selected Capable resources

​​​​​​​​​​​​​​c. Filter declaration: when using configuration and volume filters

• "ConfigurationsVal" : type “filter”

2. Class for Primitives: classes that will be used in the Body for navigating/expanding/manipulating the Navigation Set

• ExpandPrimitives: to expand nodes of an object structure
• ExpandFrom3DIndexPrimitives: to expand nodes of an object structure based on 3D index information (expand with a 3D volume filter for example)
• NavigationPrimitives: to navigate in the PPR through the different links
• AdvancePrimitives: to use advance functions (create 3D Filter and get first upper scope of an EBOM)
• FilterServices: to filter or remove objects from Navigation Sets

3. NavSets

Indicates which types of Navigation Sets will be populated in the procedure and opened or explored.

Body Section

It contains 2 main elements:

1. Instructions : Contains the sequences of instructions using the primitives. The primitives will be explained in the next chapter of this document.
2. Output: end section which defines what which Navigation Set will be opened/explored

• Important: Instructions in the End Section must remain consistent with the declarations made in the Header Section.
