Please find an overview of improvements available for other brands delivered in the 3DEXPERIENCE platform R2018x FD04 update.

[New Feature] App CATIA Piping & Tubing 3D Part Design

Available in role:

• Fluid 3D Systems Designer (FLG)

Description:

• It is now able to create and modify 3D Route in EKL. This function will help user to create Pipe/ HVAC duct/ Raceway trays and allow adding piping geometry related things like AddNode, RemoveNode, SetShape etc., using the knowledge rule APIs. Following functions are delivered under this functionality:
  • Add3DPoint(), RemoveNode(), GetNodeType(), GetSectionOrientation(), SetSectionOrientation(), SetShape(), SetDefaultBendRadius(), GetDefaultBendRadius(), SetNodeBendRadius(), GetNodeBendRadius(), ResetNodeBendRadiustoDefault(), SetMinimunStraightLength(), GetMinimunStraightLength(), PropagateReferenceToGeometry(), SetNewReference()
• It is now able to manage type of fluidic part during in FBDI/DBDI

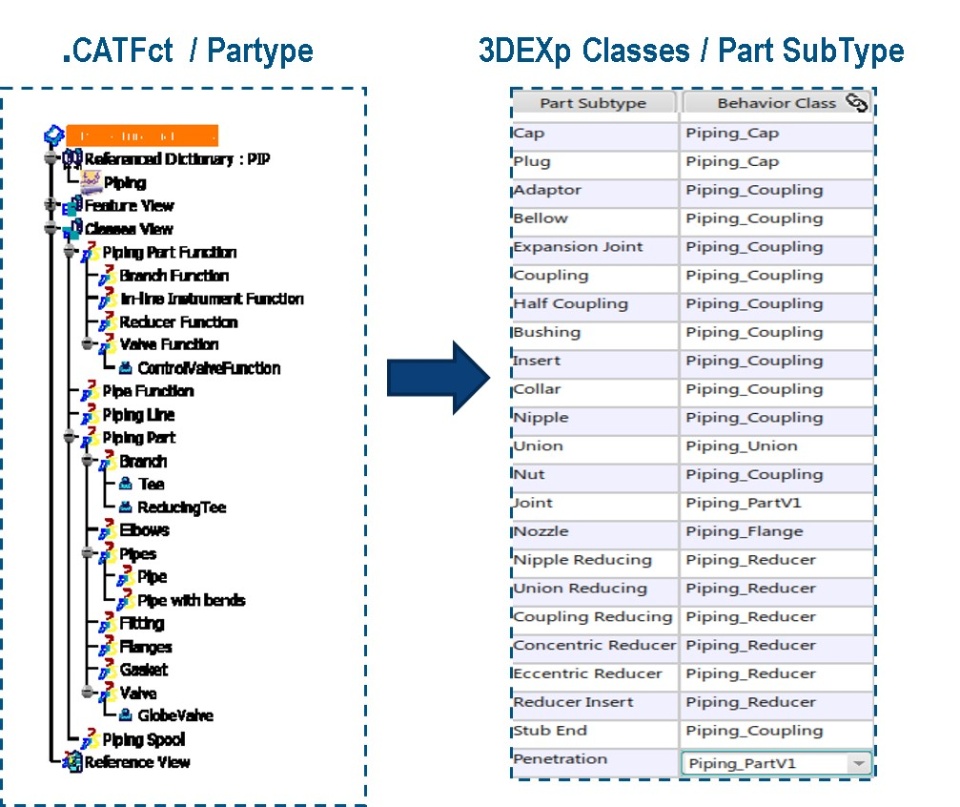

  • While importing a 3D part, it gets created of “Miscellaneous” type irrespective of its part type. With this new capability, the user can choose the creation type of the migrated 3D part depending on :
    • The Part Subtype techno table definition
    • The options given in “Me->Preference->Equipment->FBDI/DBDI Object Type Creation”
  •  Following are the option a user gets while FBDI/DBDI:
    • 1. “Use Subpart Type Table”: Uses the Subpart Type Table and creates the 3D parts        according to the Strong Type mentioned in the table.
    • 2. “Miscellaneous”: Creates the 3D part of “Miscellaneous” type (earlier behavior).

[New Role] Converter for Revit* (FOV)

App provided:

• Converter for Revit

Description:

• Import of REVIT format files to 3DEXPERIENCE as NEW Models
  • User import on demand with interactive mode
  • Create new 3D Part
  • Supports product structure and geometry transfers
  • REVIT supported versions are: [2015-2018]

*Autodesk Revit is building information modeling software for architects, landscape architects, structural engineers, MEP engineers, designers and contractors developed by Autodesk.

[New Feature] App ENOVIA Collaborative Tasks / ENOVIA Project Planning

Available in role:

• Industry Innovation (CSV)
• Project Planner (XPP)

Description:

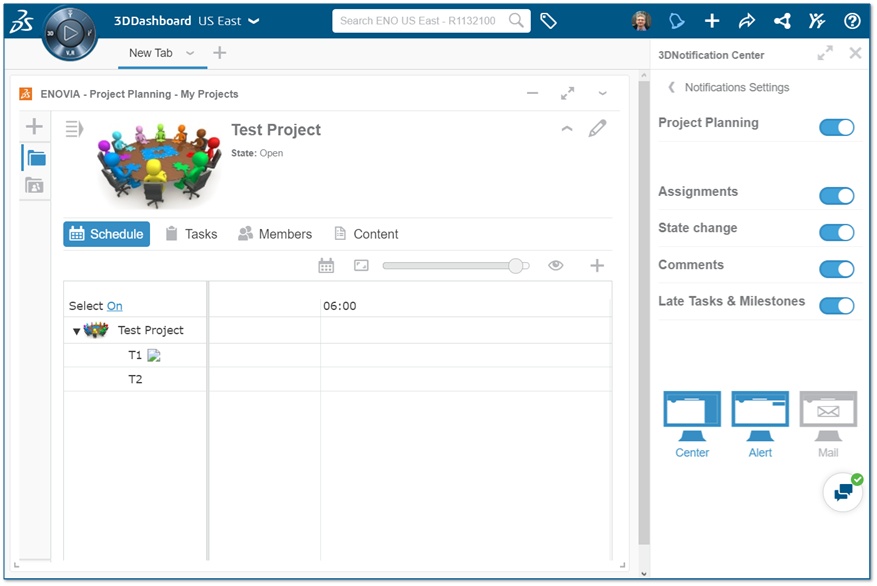

• Improved Schedule authoring & Tasks execution

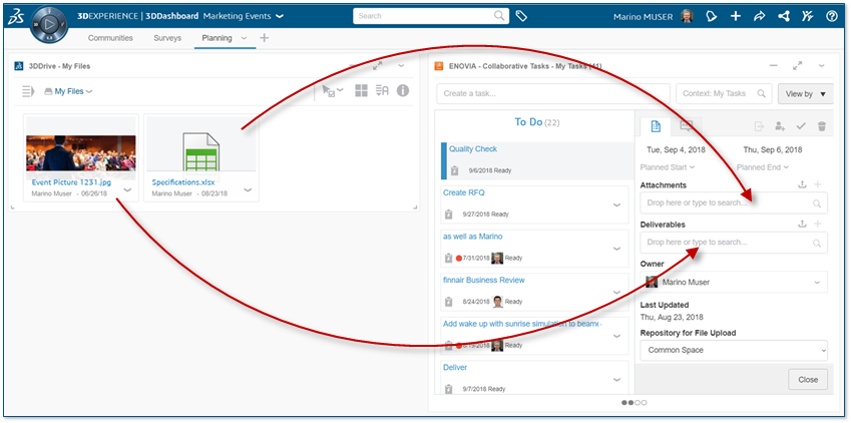

  • Support 3DDrive documents for attachments and deliverables

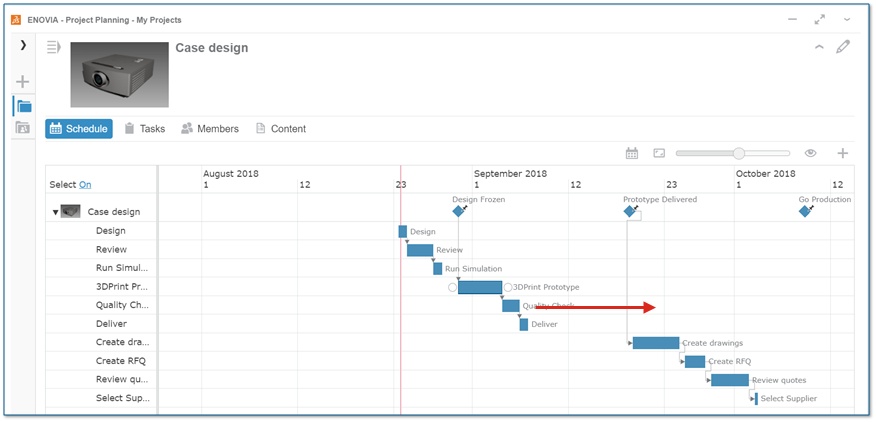

• Support task drag in timeline for manual scheduling

• Benefit from a richer set of notifications with user settings in the notification center

[New Feature] App ENOVIA Project Management

Available in role:

• Project Manager (DPM)

Description:

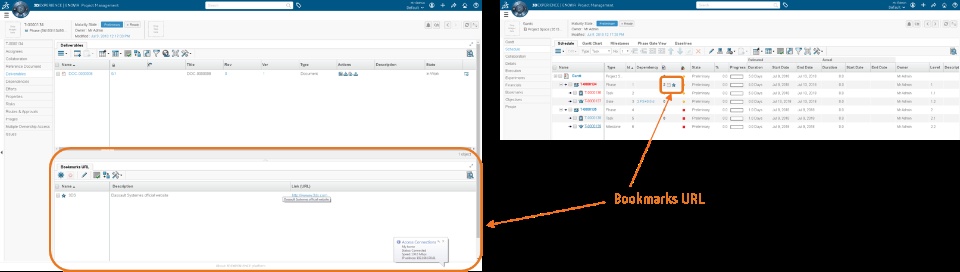

• Productivty improvement. In addition to 3DEXPERIENCE artifacts, Bookmarks URL can be managed as deliverables in Deliverables menu and accessible from the Schedule table. For example 3DSwym content can be referenced through Bookmarks URL

[New Feature] App ENOVIA Change Action

Available in role:

• ENOVIA Change Management (CHG)

Description:

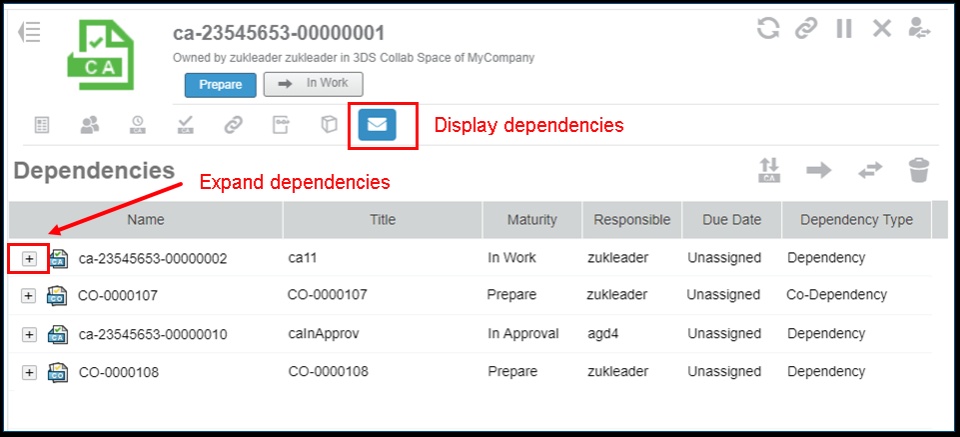

• Change process execution and traceability improved:
  • Force ordering of change objects completion: Customer having two change objects should be able to declare that the first one should be completed before the second one.
  • Force common completion of change objects: Customer having two change objects should be able to declare that the first and the second one should be completed at the same time.
  • Perform different opened change objects modifications on the same configured instance or relationship : Customer having two opened change objects should be able to create one instance with the first change object and perform modification on the same instance with second change object while the first one is not yet completed.

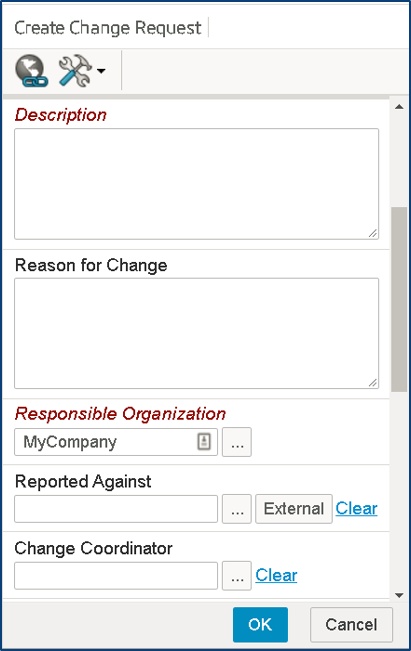

• Cross systems change management process : OSCL integration
  • It is now able to:
    • Connect external OSLC Change to ours.
    • Consume external OSLC Change in our various apps.
    • Reference external OSLC resource to our change.
    • Reference 3DEXPERIENCE resource in an external 3DEXPERIENCE Change.
  • The benefit of the integration is no duplication of the data, the data remains in the original system while being dynamically linked by various OSLC consumers.

[New Feature] App ENOVIA 3D Merchandising

Available in role:

• 3D Merchandiser (MEC)

Description:

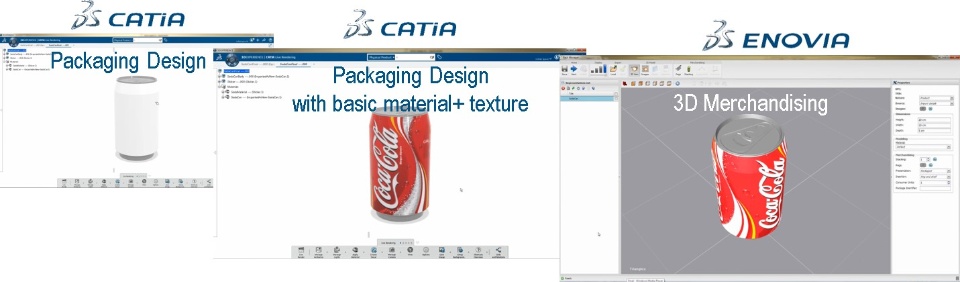

• Native reuse of CATIA model with Materials in 3D Merchandising
  • Share 3D models with « basic material+ » between CATIA Design and ENOVIA 3D Merchandising Apps
  • No data re-creation

[New Role] Simulation Methods Developer (PES)

Description:

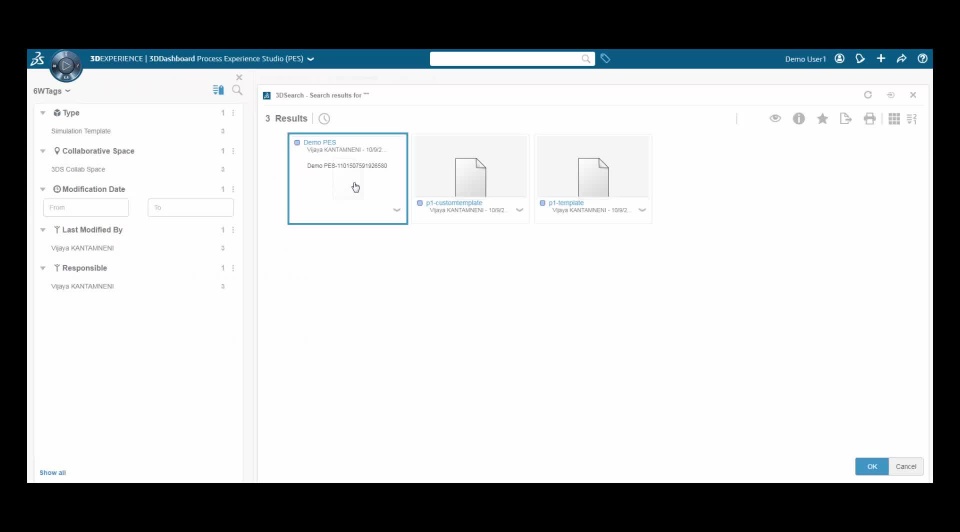

Provides analysts and methods developers a cost-effective way to democratize
their expertise, making it accessible to all of the users involved in the design process

• Build replicable experiences to democratize simulation
  • Integrate with the Simulation Process & Optimization (SPI-OC) role for drag-and-drop process authoring to democratize simulation
  • No user programming required to build custom experiences
  • Deployment governance included
• Enhanced functionally:
  • New UI components: XYPlot, Table, Content Viewer, & Media Viewer
  • Flexible Layout
  • Rule Builder

[New Role] Multiscale System Specialist (MCK)

Description:

Collaboratively Create, Execute, Explore & Manage Experiments and associated artifacts
for multiple Physics over multiple Scales across a wide range of Experimental intent

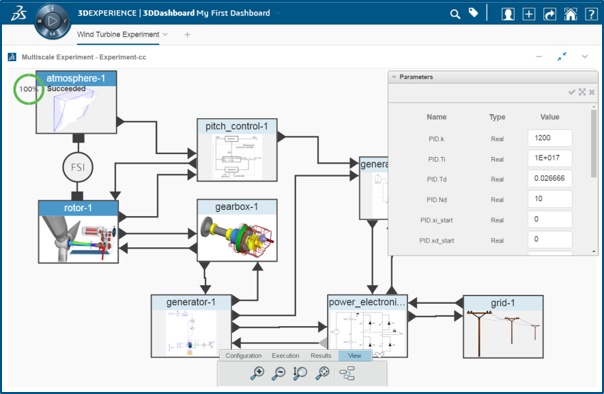

• Assemble & execute multi-physics, multi-scale experiments, including Dymola
• Enhanced functionality
  • 3DPlay validation view of co-simulation region
  • XY Plotting enhancements
  • Formatted reporting of Abaqus status files
  • Experiment Behavior diagnostics
  • Web-to-Win authoring context switching
  • Fluid Ports supporting Fluids Scenario app
  • Ramping – Ramp on for excitations
  • Abaqus Specialist (PXA-OC) support for co-simulation experiments
  • Runtime station selection availability

[New App] SIMULIA Performance Study

Available in role:

• Simulation Foundation (SEI)

Description:

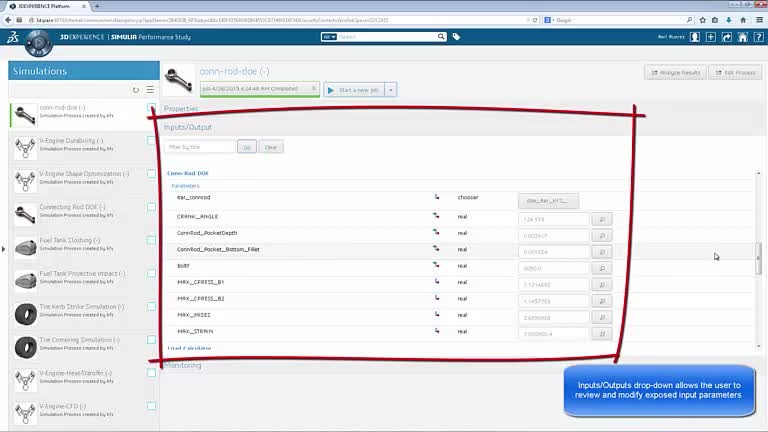

Enable all users with realistic insight, giving them access to your library of simulation
methods and a single location to find and monitor all simulation studies

• A platform option providing simulation process and data access for all users
  • Entry point for the Simulation Process Management solution providing simulation democratization
  • Gain realistic insight throughout all phases of design
  • Empower all users to leverage standardized methods
  • Understand the pedigree of the data
• Enhanced functionality
  • Open DRM support
  • Ability to run an process activity from Performance Study
  • Compute Orchestration enhancements
  • NEW – Cloud support  for Performance Study (R2018x FD04)

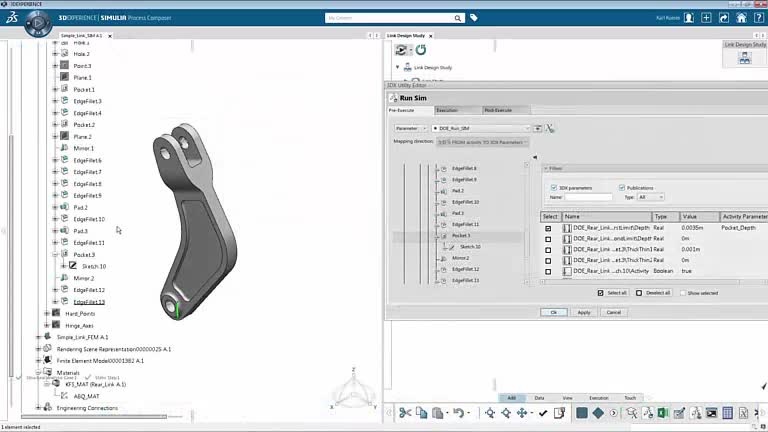

[New App] SIMULIA My Simulations

Available in role:

• Simulation Process & Optimization (SPI)

Description:

Foundation for all simulation authors in 3DEXPERIENCE, integrating simulation tools for use cases from ad-hoc through design exploration

• A platform option providing simulation process capture & execution
  • Capture your simulation methods & best practices
  • Scalable experience to add automation, explore designs
  • Openness: Connect any tool to 3DEXPERIENCE
  • End-to-end traceability to understand result context
• Enhancements include all from SEI plus:
  • Text Parser Enhancements
  • Enhanced 3DEXPERIENCE Physics adapter
  • Script Adaptor Enhancements
  • Monte Carlo Adapter Enhancements
  • Monitor Parameter History and Graphs directly form Process Composer Native

[New App] QUINTIQ Collaborative Forecasting

Available in role:

• Collaborative Forecaster (QCO)

Description:

New web app integrated in R2018x FD04 and replacing former app “Collaborative Forecasting”

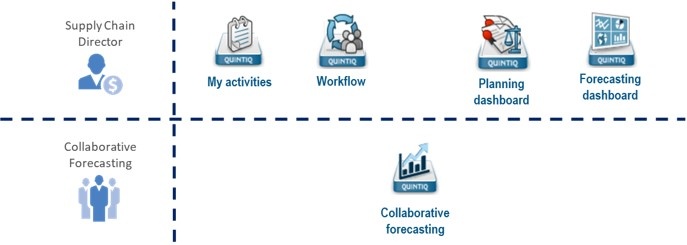

[New App] 4 new QUINTIQ apps

Available in role:

• Supply Chain Director (QSF)

Description:

New web apps integrated in R2018x FD04 and replacing former app “Supply Chain Director”. These web apps are :

• My Activities
• Workflow
• Planning dashboard
• Forecasting dashboard

​​​​​​​
