Defining Topology Optimization
Topology optimization is a computational design method used to determine the optimal material distribution within a defined design space, under specific loading and boundary conditions. The goal is to achieve the best possible performance with minimal material usage while ensuring the design satisfies mechanical requirements such as strength, stiffness, and safety. It represents a significant departure from traditional design approaches by enabling designers to generate organic, efficient structures tailored for their functions.
The process involves:
- Defining a design space and loading conditions.
- Applying constraints such as volume reduction or maximum stress.
- Using iterative algorithms to optimize the structure.
The result is typically an irregular, lightweight design that would be impractical to conceptualize using traditional engineering methods.
Case Study 1: Aluminum metal bracket
Material:
Alloy: 1060 Aluminum
Density: 2.70 g/cm³
Optimization Results:

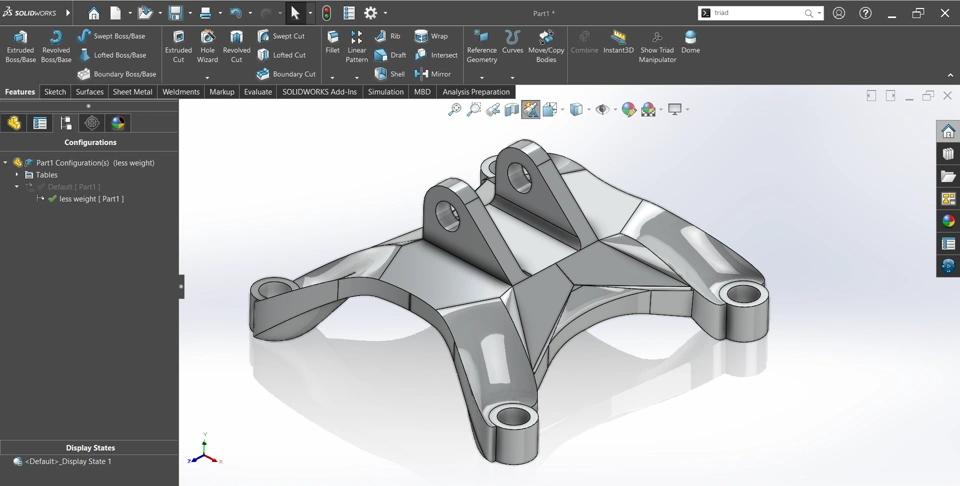

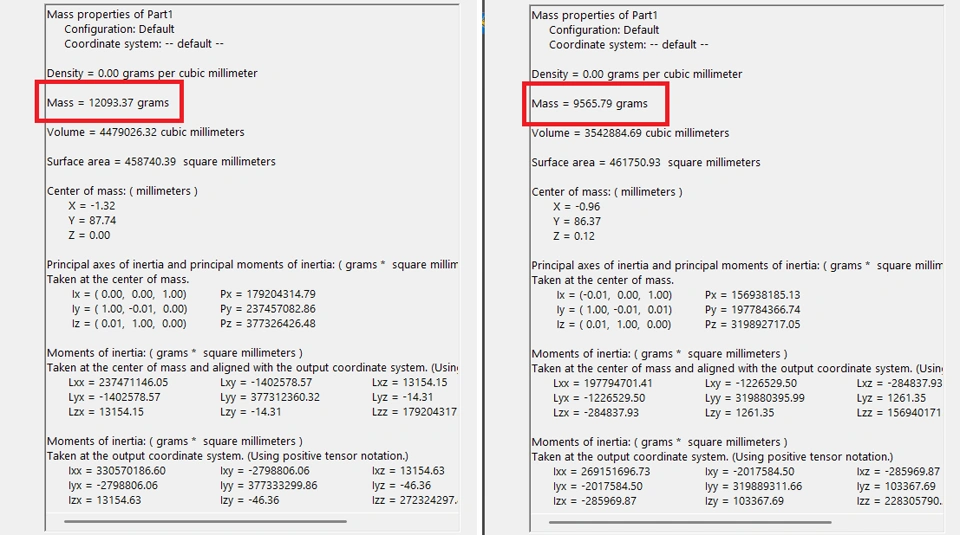

Original Mass: 12.093 kg (12,093.37 grams)
Optimized Mass: 9.566 kg (9,565.79 grams)
Mass Reduction: 21%

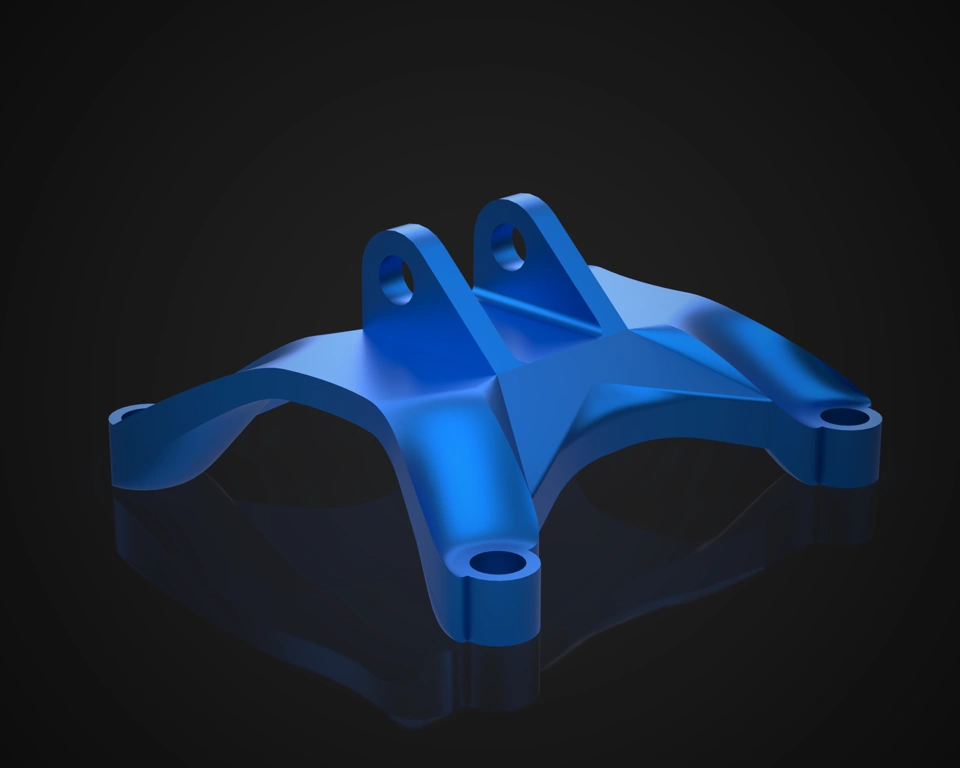

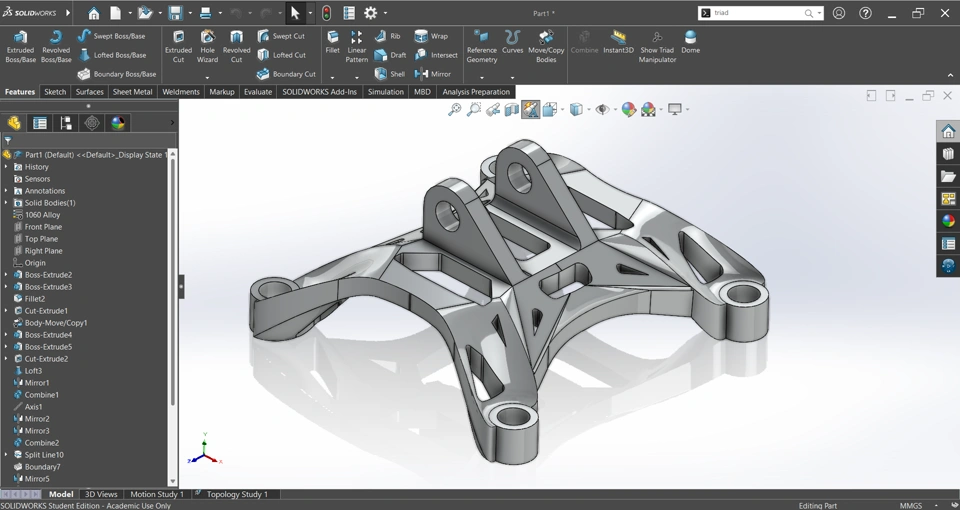

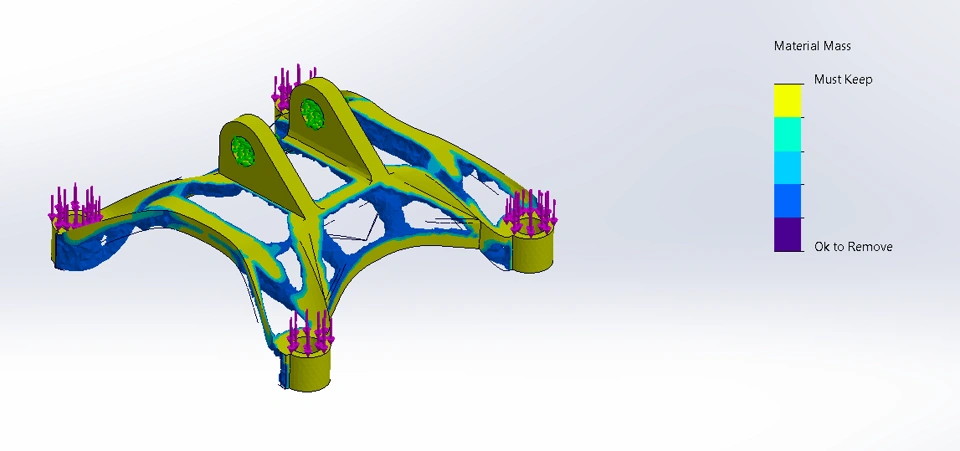

The optimization process identified regions where material could be safely removed without compromising the integrity of the structure. Using SOLIDWORKS Simulation, the final design retained the necessary material in high-stress areas (highlighted in yellow), while the optimized sections (highlighted in blue) were minimized.
Here are the steps to perform a Topology Study in SOLIDWORKS:
1. Activate the Simulation Add-In
- Go to the SOLIDWORKS Add-Ins tab.
- Check the box for SOLIDWORKS Simulation to activate it.
2. Set Up a New Study
- Go to the Simulation tab.
- Click on Study Advisor > New Study.
- Select Topology Study from the list and click OK.
3. Define the Material
- Right-click on Parts under the study tree.
- Choose Apply/Edit Material.
- Select the desired material (we will use the 1060 Aluminum in our study) from the SOLIDWORKS material library.
4. Apply Fixtures
- Click on Fixtures in the study tree.
- Define where the model is fixed or constrained (we will fix the horizontal pin holes in our study).
5. Apply Loads
- Click on External Loads.
- Select the appropriate type of load (Force, Pressure, etc.).
- Apply the load to the desired faces, edges, or vertices of the model.
6. Set Goals and Constraints
- Under the Goals and Constraints section:
- Define the Mass Constraint (e.g., reduce mass by 80%).
- Set any geometric constraints, such as stiffness or displacement.
7. Refine the Topology Settings
- Under the Options in the study tree, set the optimization options:
- Manufacturing Controls (e.g., Symmetry, Thickness control, or Preserved Regions).
- Check Mesh Options for desired accuracy.
8. Run the Study
- Click on Run Study in the toolbar.
- SOLIDWORKS will optimize the material layout based on the defined goals and constraints.
9. Review the Results
- Once the simulation completes, view the results:

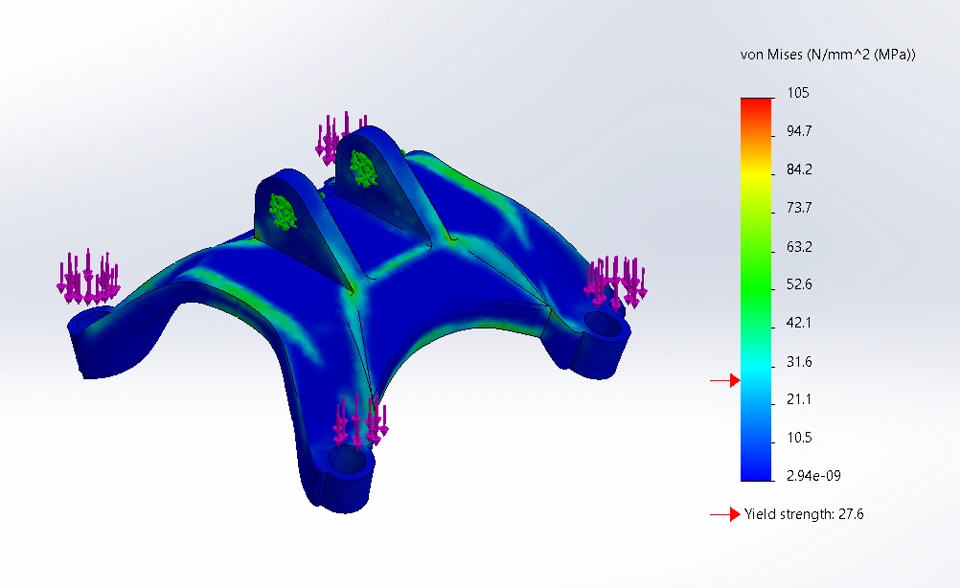

- Use Displacement, Stress, and Mass plots to analyze the optimized shape.
- Interpret the topology optimization results for further design refinement.
The topology optimization results highlight:
🔹 Blue Regions: Material that can be removed
🔸 Yellow Regions: Critical areas that must be kept
|
|
Final Results:
The final design achieves a 21% mass reduction, enhancing material efficiency while maintaining structural integrity. This is crucial for industries like aerospace, automotive, and robotics, where reducing weight without sacrificing strength is essential for performance and fuel efficiency. The optimization also benefits 3D printing by using less material, resulting in faster production times and less waste. Additionally, it promotes sustainability by reducing material usage and environmental impact, aligning with the growing emphasis on eco-friendly practices in engineering.
