Did you know that instead of applying a direct force in SolidWorks Simulation, you can use the Prescribed Displacement feature to simulate real-world loading conditions more accurately?
🔹 Why Use Distant Load?
✅ Simulates a load applied from a remote location rather than directly on the surface.
✅ More realistic for structures where forces come from fixtures, bolts, or suspended components.
✅ Helps reduce stress concentrations and provides more accurate results.
🔹 How to Apply Distant Load in SolidWorks Simulation?

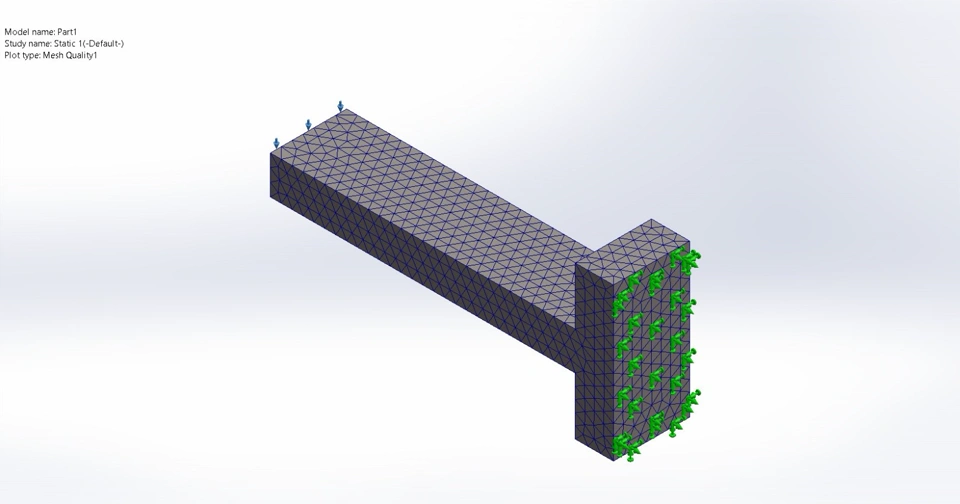

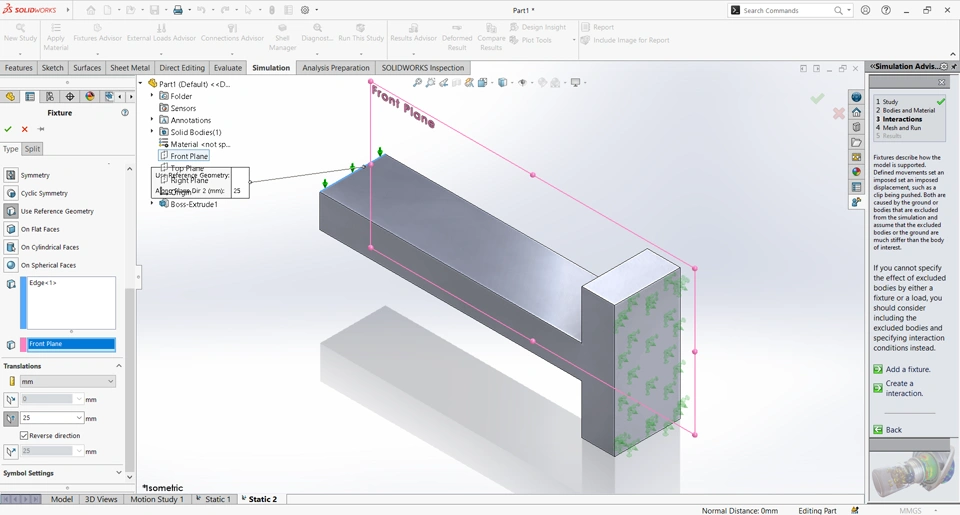

1️⃣ Start a Static Simulation and ensure your model is properly constrained.
2️⃣ Go to External Loads → Select Prescribed Displacement.
3️⃣ Two options will appear:
- Face, edge, or vertex: Select where the force originates.
- Face, edge, plane, or axis: Choose the direction of the force.
4️⃣ If you select a reference plane, you can define the direction along X, Y, or Z.
5️⃣ Set the magnitude of the displacement.

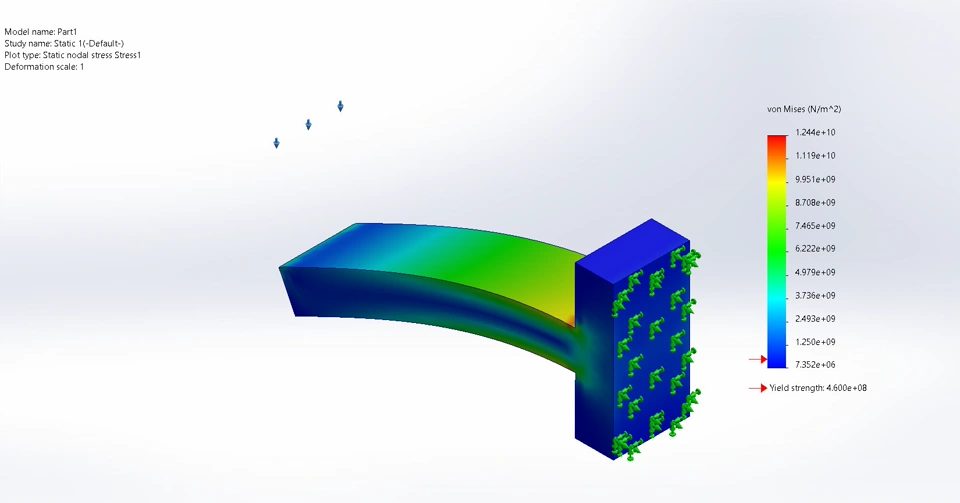

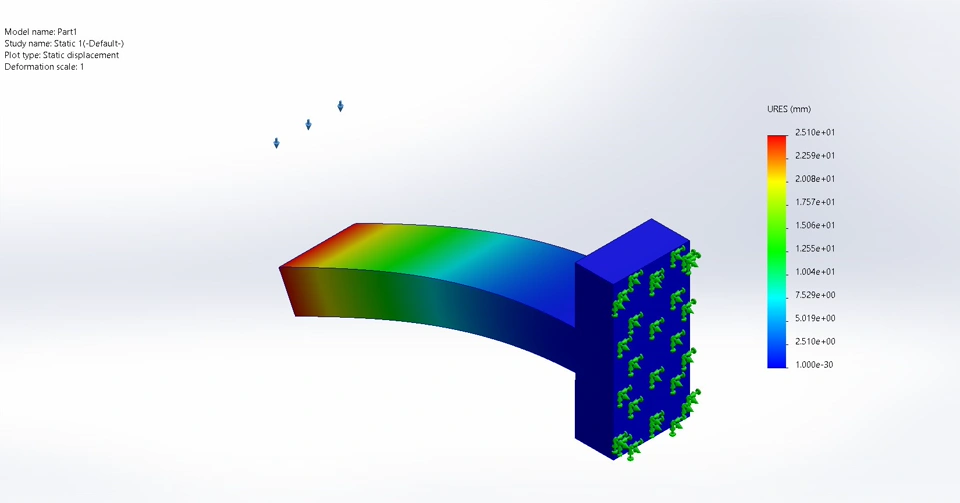

6️⃣ Run the simulation and analyze results like stress, displacement, and safety factor.
🎯 Pro Tip: Use Remote Displacement if you need to control movement at a distance!
This method is perfect for frames, machinery, and suspended structures, where forces don’t act directly on the part but originate elsewhere.
🔧 Have you used Distant Load in your simulations before? Let’s discuss your experience in the comments!
