What is SolidWorks Piping and Routing?
Imagine you’re designing a complex network of pipes for a chemical plant, or perhaps you’re routing electrical cables in a high-tech machine. Doing this manually would be time-consuming and prone to errors. Enter SolidWorks Piping and Routing—a specialized toolset within SolidWorks that automates and simplifies the creation of 3D models for piping, tubing, and electrical systems. It’s like having a smart assistant that knows all the rules of routing and helps you build systems faster and more accurately.
Why Should You Care About Piping and Routing?
If you work in industries like oil and gas, HVAC, or manufacturing, you know how critical it is to design systems that are efficient, cost-effective, and error-free. SolidWorks Piping and Routing helps you achieve this by:
Saving Time: Automating repetitive tasks like placing fittings and routing pipes.
Reducing Errors: Ensuring your design adheres to industry standards and avoids clashes.
Improving Collaboration: Generating detailed documentation that everyone on your team can understand.
How Does It Work? Let’s Break It Down
1. Setting Up Your Project
Before you start, you need to define the scope of your project. Are you designing a piping system for a factory, a tubing system for a hydraulic machine, or an electrical harness for a vehicle?
SolidWorks provides templates and libraries tailored to each type of system, so you don’t have to start from scratch.
2. Using Component Libraries🔩 ⚙️

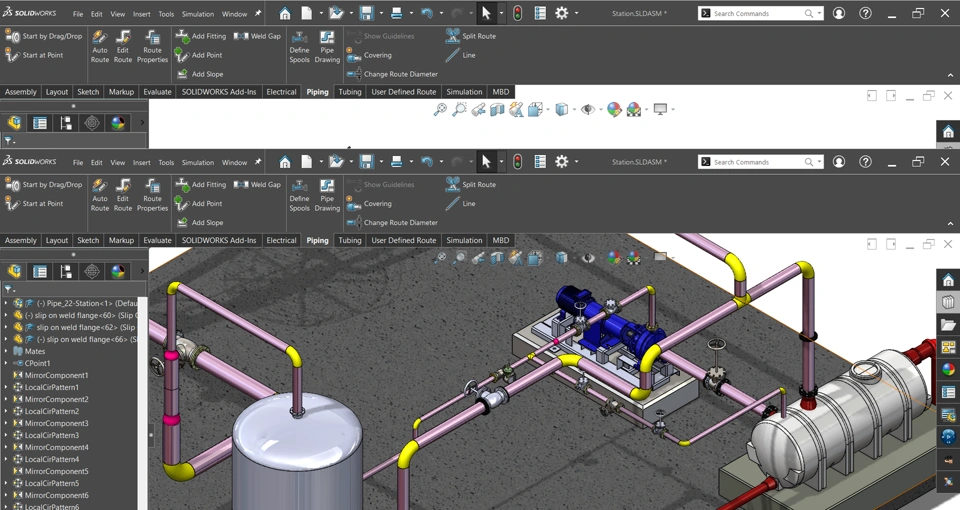

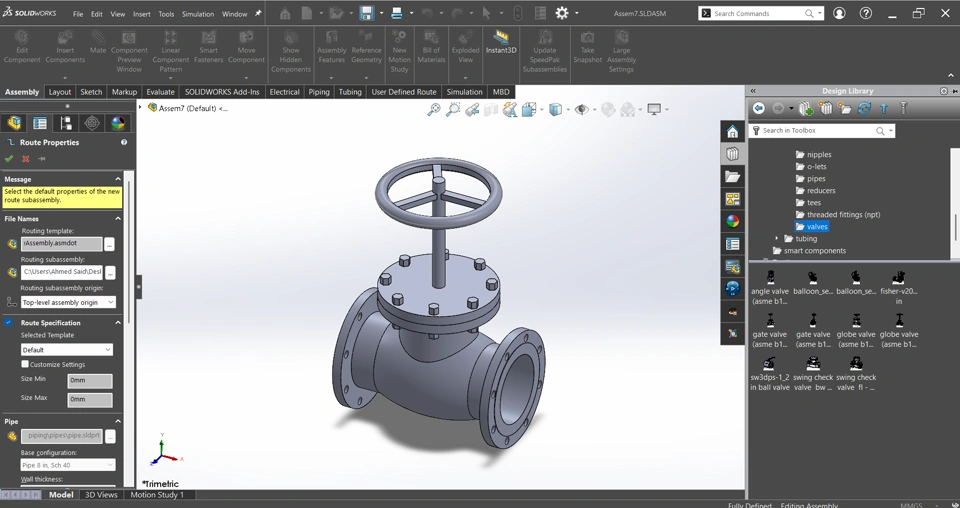

Think of this as your toolbox. SolidWorks comes with prebuilt libraries of standard components like pipes, elbows, valves, connectors, and more. These libraries are based on industry standards (e.g., ASME, DIN, ISO).

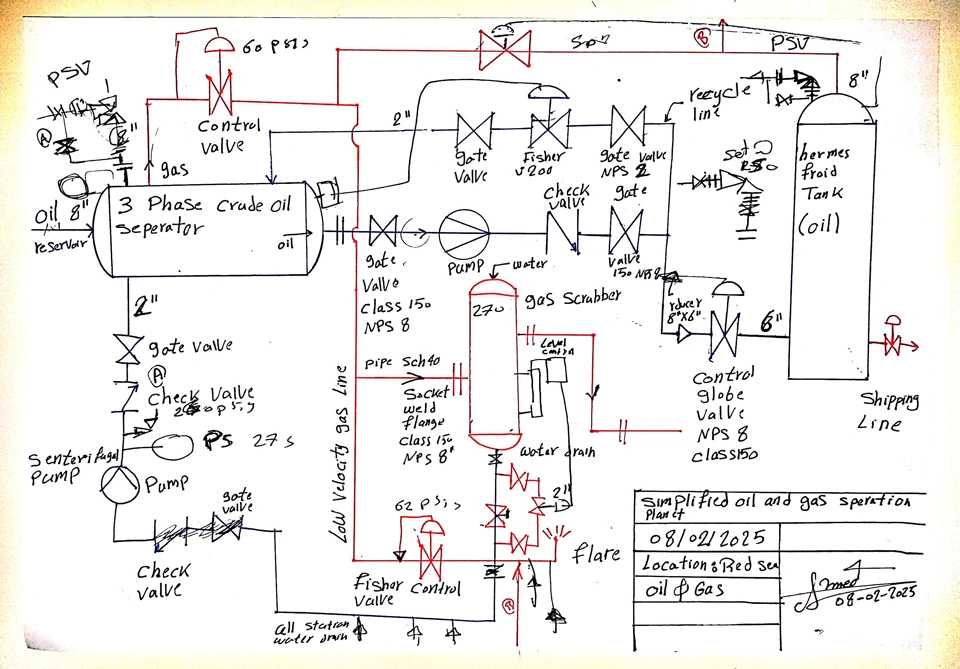

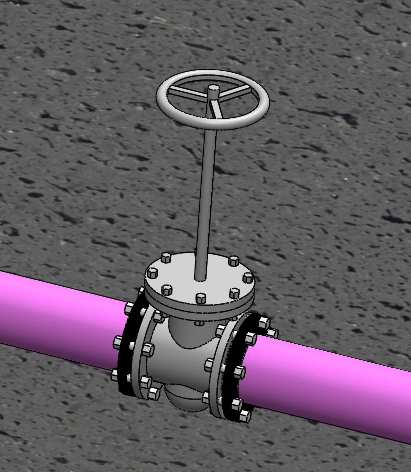

For example, if you’re designing a piping system, you can drag and drop a 90-degree elbow or a gate valve directly into your assembly. No need to model these parts manually!
You can also create custom components and add them to your library for future use. This is especially useful if you’re working with proprietary or non-standard parts.
Some useful links🔗 :
3. Creating the Route
This is where the magic happens! You start by defining the start and end points of your route. For example, you might start at a pump and route the pipe to a tank.

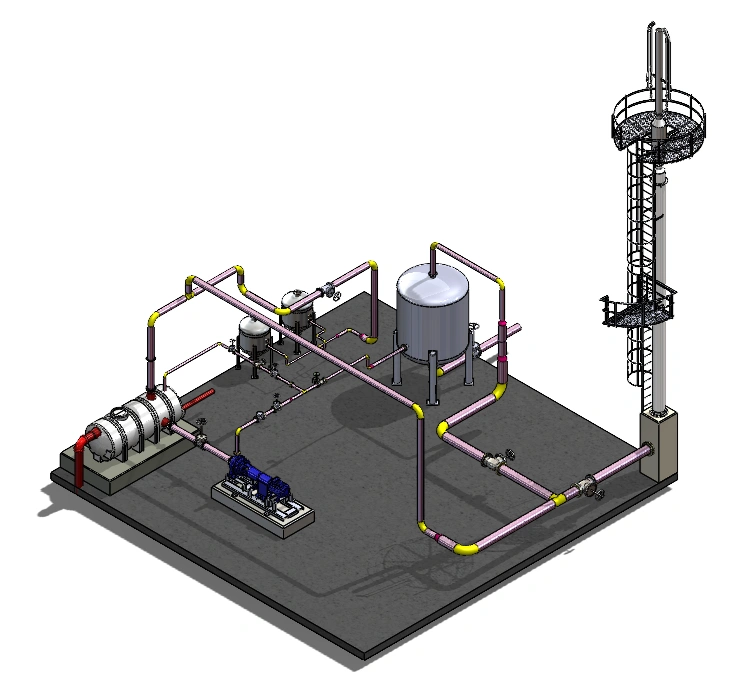

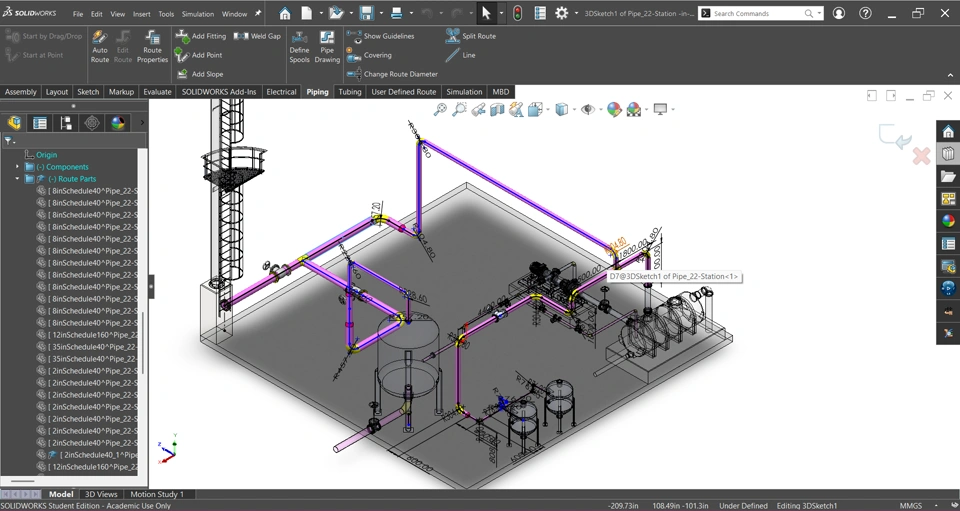

SolidWorks uses 3D sketching to define the path of your route. You can sketch lines, arcs, and splines in 3D space, and the software will automatically add fittings (like elbows or tees) at bends and intersections.
If you’re not sure how to route the system, SolidWorks can auto-route for you based on the components you’ve placed. It’s like having a GPS for your pipes or cables!
4. Editing and Optimizing
Once the route is created, you can easily modify it. Need to move a pipe or change the diameter? No problem! SolidWorks updates the entire system dynamically, including all connected fittings.
Use interference detection to check for clashes between components. This ensures your design is feasible and avoids costly mistakes during manufacturing or installation.
5. Generating Documentation
After your 3D model is complete, SolidWorks helps you create 2D drawings, Bill of Materials (BOM), and flattened views of your routes.
For example, if you’re designing a tubing system, you can generate a flattened view of the tube layout for manufacturing. If you’re working on an electrical harness, you can create a wiring diagram for the assembly team.
Real-World Applications
Let’s look at some examples to see how SolidWorks Piping and Routing can be used in different industries:
Oil and Gas:
Design complex piping systems for refineries or offshore platforms.
Ensure compliance with safety standards and optimize the layout for efficiency.
HVAC:
Route ductwork and piping for heating, ventilation, and air conditioning systems.
Minimize space usage and avoid clashes with structural elements.
Tips for Getting Started
Learn the Basics of 3D Sketching:
Since routing is based on 3D sketches, it’s important to get comfortable with sketching in 3D space. Practice creating lines, arcs, and splines.
Explore the Component Libraries:
Spend some time familiarizing yourself with the standard components available in the libraries. This will save you time when designing.
Use Auto-Route for Quick Designs:
If you’re new to routing, start with the auto-route feature. It’s a great way to see how SolidWorks handles routing logic.
Check for Interferences:
Always run interference detection before finalizing your design. This will help you catch any issues early.
Experiment with Custom Components:
If you’re working with unique parts, try creating custom components and adding them to your library. This will make future projects faster.
Why SolidWorks Piping and Routing Stands Out
User-Friendly Interface: Even if you’re new to routing, SolidWorks makes it easy to learn and use.
Seamless Integration: It works perfectly with other SolidWorks tools like Simulation (for stress analysis) and PDM (for managing design data).
Industry-Specific Solutions: Whether you’re designing for oil and gas, HVAC, or automotive, SolidWorks has the tools and libraries you need.
Pipeline Fundamentals
Pipe Class: Defines the pressure rating and material of the pipe. Common classes include 150, 300, 600, etc.
Schedule: Refers to the wall thickness of the pipe. Common schedules are SCH 40, SCH 80, SCH 160. Higher schedules mean thicker walls and higher pressure handling.
Valves: Control the flow of fluids. Common types include gate valves, ball valves, and check valves.
Flanges: Connect pipes, valves, and equipment. They come in types like weld neck, slip-on, and blind flanges.
NPS (Nominal Pipe Size): A North American standard for pipe diameter.
DN (Diameter Nominal): The metric equivalent.Standards: Pipelines follow strict standards like ASME B31.4 (liquid pipelines) and ASME B31.8 (gas pipelines).
API (American Petroleum Institute): Provides guidelines for design, materials, and testing (e.g., API 5L for pipeline steel).
Final Thoughts
SolidWorks Piping and Routing is more than just a design tool—it’s a game-changer for engineers and designers. By automating complex tasks and providing powerful tools for optimization, it allows you to focus on creativity and innovation rather than getting bogged down by tedious details.
So, whether you’re designing a massive piping network for a chemical plant or routing delicate electrical cables for a high-tech device, SolidWorks Piping and Routing has your back. Give it a try, and you’ll see how it can transform your workflow and take your designs to the next level!
Understanding these concepts is crucial for anyone in the oil and gas industry. As a 3DEXPERIENCE Champion, I’m proud to leverage these platforms to drive innovation in the energy sector.
