Introduction

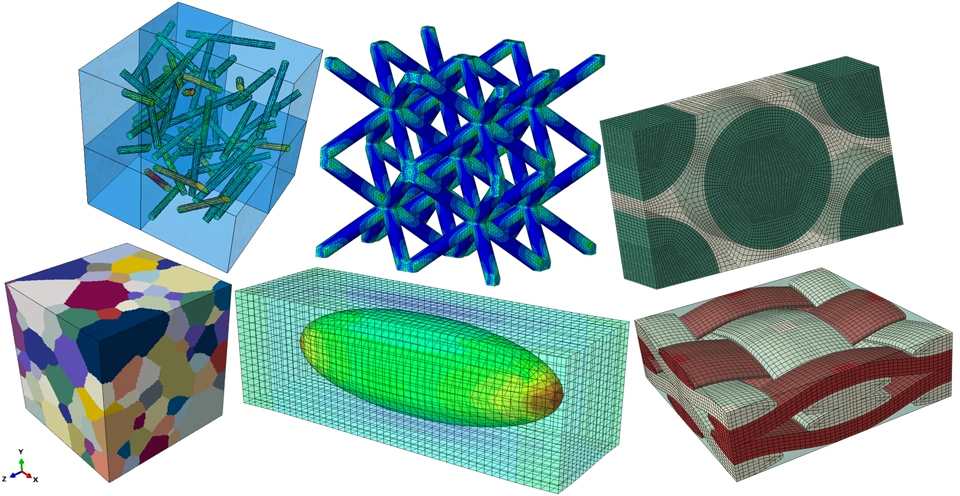

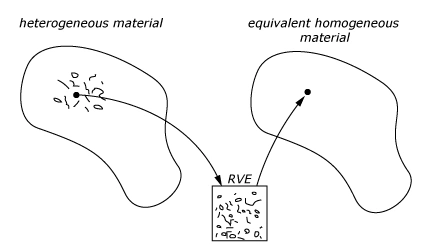

A Representative Volume Element (RVE) is an idealized portion of a structure used to capture its average mechanical response. While the RVE is typically much smaller than the overall structure, it must be sufficiently large to yield a statistically meaningful representation of the material's behavior. Common examples include material microstructures, lattice unit cells, or segments of laminated composites.

Defining an RVE involves:

• Specifying the region of the model that constitutes the RVE.
• Identifying the total volume of the RVE, including any unmeshed or void regions.
• Applying constraints that link the imposed average loading to the local RVE response.

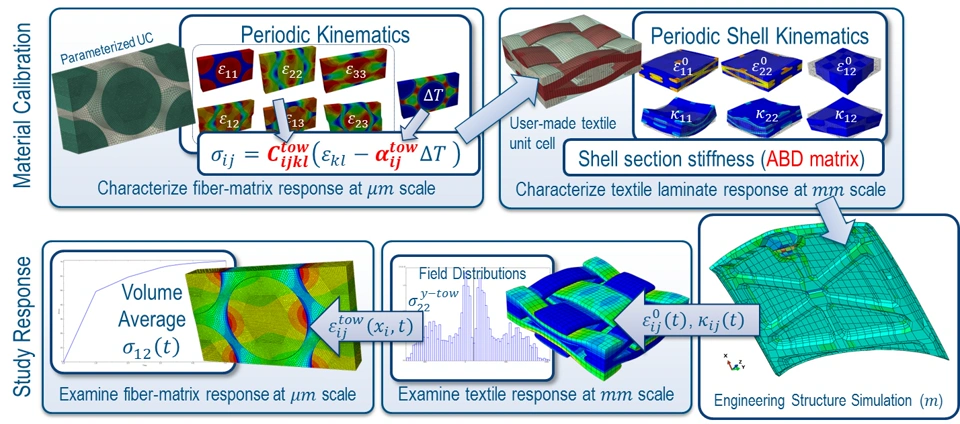

The RVE capabilities in the Structural Model Creation module support 3D periodic boundary conditions. These constraints simulate the effect of a repeating array of identical unit cells by applying average field conditions (representing far-field loading) to a single cell. Periodic constraints are defined by pairing opposing surfaces of the RVE boundary that are geometrically and physically equivalent.
