Introduction:
Extreme sports enthusiast Rob Gavin incurred severe face injuries in a 2008 snowboarding accident, when an avalanche left him buried in snow. Realizing his wounds could have been prevented if he was wearing a more protective helmet, but unable to find anything suitable on the market, Gavin set about designing his own. This led to him founding Ruroc – a UK-based company with a following of over four million extreme sports enthusiasts.

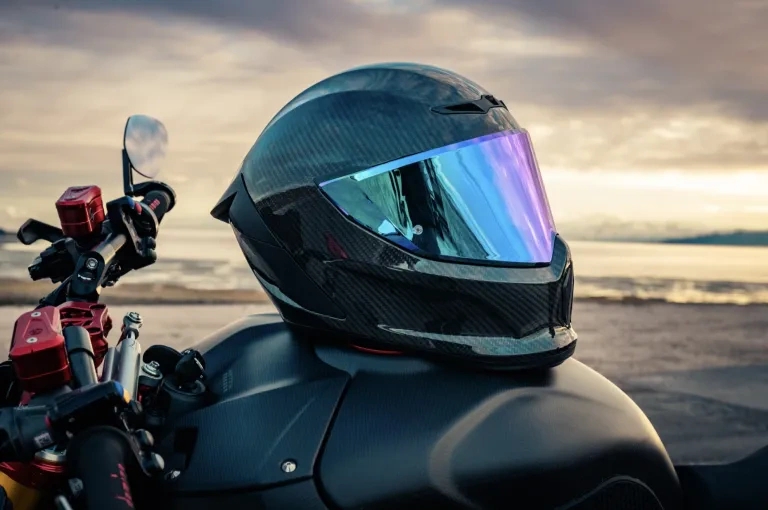

Renowned for its high-performance and cutting-edge design, Ruroc creates helmets at the forefront of head protection. (Photo © Ruroc) |
A Streamlined Approach with the 3DEXPERIENCE platform
◾Meeting Consumer Expectations
Selling directly to end users, rather than through retailers, Ruroc prides itself on reacting to direct customer feedback. To develop ideas and iterate designs faster than the competition, Ruroc sought a single integrated design solution that would make collaboration easy.
With 3DEXPERIENCE as a solid foundation, Ruroc continuously innovates. As soon as a brief has been formulated, initial sketches are made and customer feedback is incorporated. Ruroc’s design process is now much more streamlined.
“My goal is to listen to customers' feedback and develop something in a conceptual space,” said Jason Esson, Ruroc’s senior industrial designer. “And then, when that data does go over to the other design engineers, they will use the platform to take the designs through to manufacturing without having to backtrack too much.”

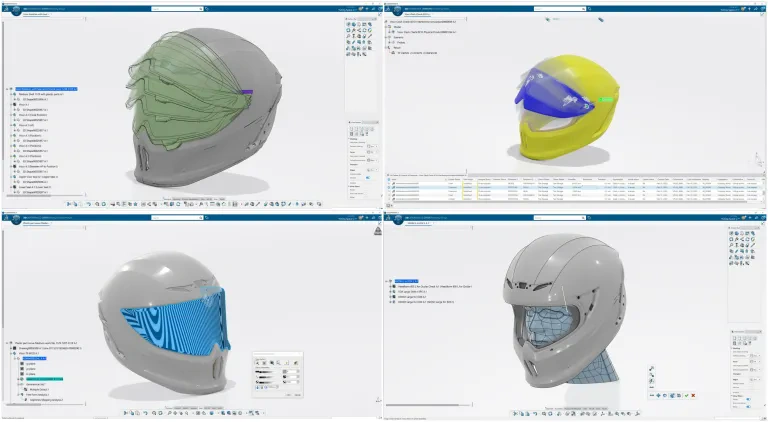

Esson’s sketches are imported into SOLIDWORKS or CATIA so that complex surfaces can be developed. Once the surfaces are created, the helmet’s design is further refined. Using CATIA’s Part Design and Generative Shape Design apps, for example, designers can engineer precise 3D mechanical parts and assess the comfort and thermal properties of the helmets.
“The good thing with the 3DEXPERIENCE platform is that, when we’ve built one size of helmet, we can use the parameter function to scale the design up and down to create other helmet sizes,” said Yuting Bai, Ruroc’s design engineer. “That saves us a lot of time.”
By generating a products library of existing parts on the 3DEXPERIENCE platform |
◾Meeting High Regulations
“The latest Economic Commission for Europe (ECE) 22.06 safety standard, for example, pinpoints rotational energy absorption,” said Tom Savage, Ruroc’s head of design and engineering. “It also requires high levels of penetration resistance and positional stability. This means our helmets must be tested under various angles of impact at a range of different speeds.”
For Ruroc to succeed, it needs close collaboration between its multidisciplinary teams as well as with Generative Parametrics. However, until recently these parties were working independently using a file-based system. With designs stored locally and in different formats, collaboration was proving difficult. Moving towards a data- and process-driven environment based on the 3DEXPERIENCE platform has turned things around.
◾Seamless Integration
“Because the 3DEXPERIENCE platform is cloud based, we now have good cross-collaboration between teams. We can work together with our design for manufacturing sub-contractor Generative Parametrics seamlessly in real time and from the same file structure.”
“Everyone at Ruroc has different skillsets, some people are brought up on CATIA V5 and others prefer to use SOLIDWORKS. Meanwhile, our design for manufacturing sub-contractor Generative Parametrics was using Dassault Systèmes’ 3DEXPERIENCE platform on the cloud with CATIA as the design application", Savage said.
Ruroc found that adopting the 3DEXPERIENCE platform itself could enable its designers to utilize the application they are most comfortable with.
“Everyone can lean into their own skills,” Savage said. “Learning the platform was straightforward. Each member of the team had personalized onboarding. We also had help from the Dassault Systèmes User Communities, a forum where we can post questions and get answers back incredibly quickly.”
◾The Path to Virtual Prototyping
Ruroc is now focused on building its material library inside the 3DEXPERIENCE platform, which will allow it to calculate the weights of the components within the different helmets’ shells. In the future, this data, along with the platform’s computational fluid dynamics capabilities, would help Ruroc calculate drag and flow, as well as thermal and acoustics properties. By virtually simulating product performance, Ruroc could reduce its reliance on physical prototyping.
“It currently takes a long time to get prototypes from the factory,” Bai said. “With physical prototyping, we can only test a helmet once – after that it is ruined. It's just like with car crash testing. It will be interesting to see how simulation compares to the real live results.”
“It will be great to see the initial first analysis of what we can expect from the performance of our 3D parts when we go into the wind tunnel and start collecting real world data,” Savage added. “Virtual testing through the 3DEXPERIENCE platform would help us to correlate that data and make more informed decisions rather than waiting for the first prototypes.”
This will enable Ruroc save time and money, and also diversify its product portfolio quicker to meet demand from new markets.
It’s an exciting time for Ruroc, and – thanks to the 3DEXPERIENCE platform – the company is on the way to realizing its vision: to become the go-to brand for head protection, for every extreme sport.
Modeled on the 3DEXPERIENCE platform, the EOX high-performance helmet completely redefines the iconic Ruroc design, but also marks a new era in terms of safety, comfort and connectivity. (Photo © Ruroc) |
