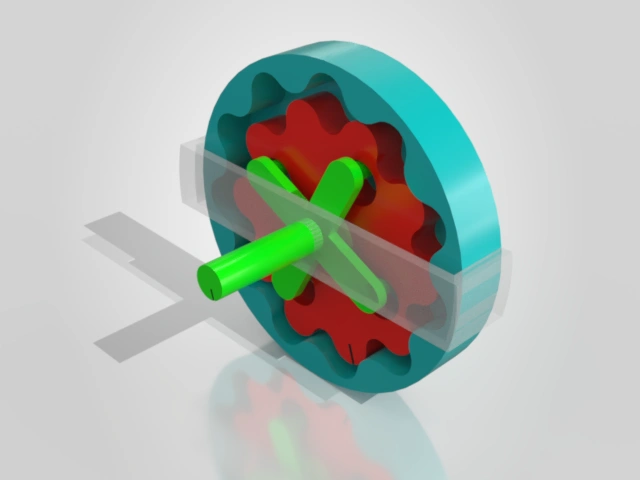

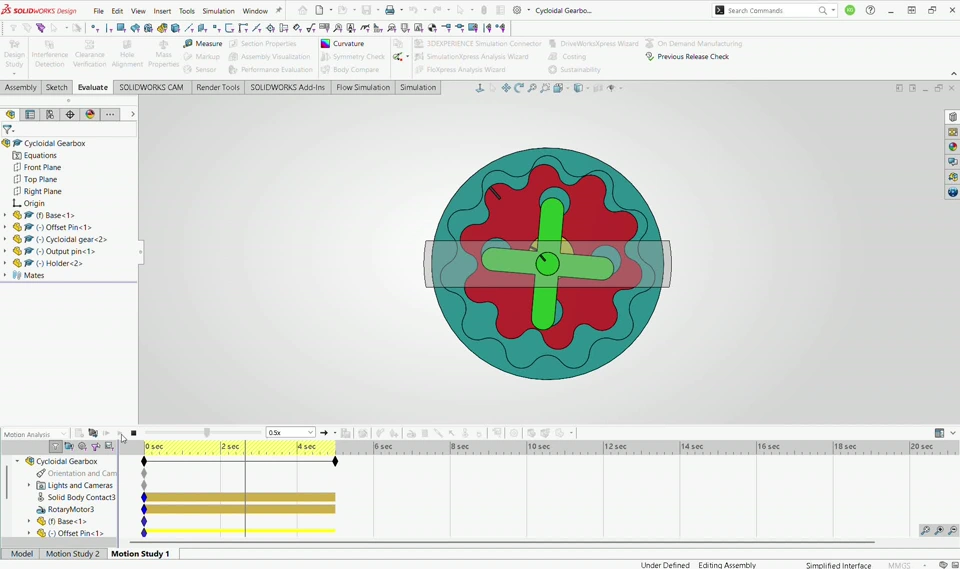

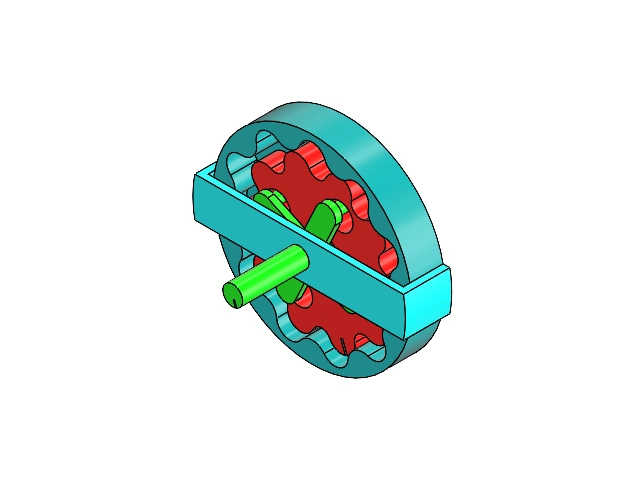

Most of us are familiar with spur and planetary gearboxes, but cycloidal drives achieve high reduction ratios using a completely different motion mechanism. For this study, I modeled and simulated a single-disc cycloidal gearbox in SOLIDWORKS Motion Analysis to understand how the theoretical reduction ratio compares with the actual kinematic response. |
🔹 How it works
As the eccentric shaft rotates, the cycloidal disc undergoes a characteristic wobbling motion inside the fixed ring. Since the disc has one fewer lobe than the surrounding ring, each orbit produces a small reverse rotation of the disc. This difference in lobe count is what creates the speed reduction.
Theoretical Reduction Ratio:
10 / (11 - 10) = 10:1
Therefore, a 60 RPM input should ideally produce a 6 RPM output.
📊 Motion Analysis Results

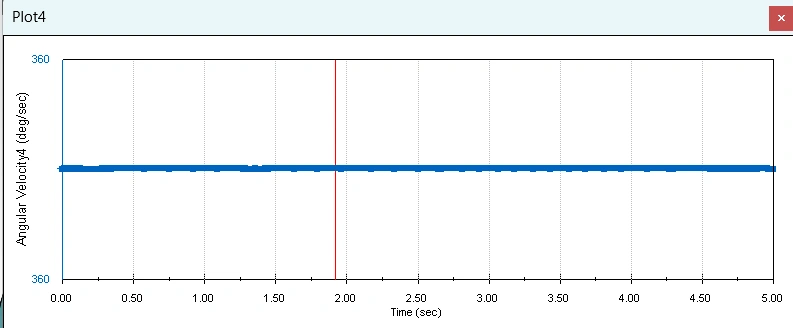

✅ Input angular velocity remained constant at approximately 360 deg/s (60 RPM)
✅ Output angular velocity averaged approximately 35.5 deg/s (5.9 RPM)

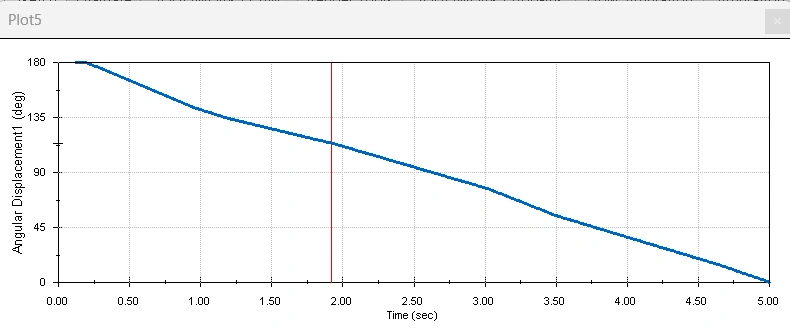

✅ Output displacement reached approximately 180° over the 5-second simulation
The simulated results closely matched the theoretical prediction, validating the gearbox geometry and kinematic behavior.
🔍 Interesting Observation

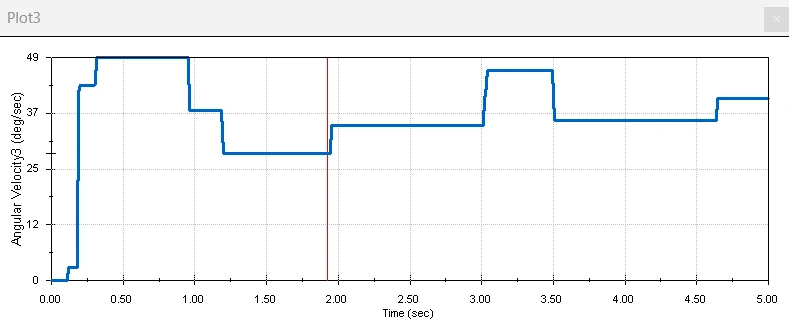

While the average output speed matched the expected 10:1 reduction ratio, the output velocity was not perfectly constant. Small cyclic fluctuations were observed throughout the motion due to the cycloidal engagement mechanism and changing load transfer between contact points.
This highlights one of the unique characteristics of cycloidal drives: the output motion is generated through a complex orbital movement rather than conventional gear tooth meshing.
Cycloidal gearboxes are widely used in robotics, automation, and precision motion systems because they offer:
• High reduction ratios in compact packages
• Excellent shock-load resistance
• Multiple simultaneous contact points for load sharing
• High torque density
Thanks for reading! Have you worked with cycloidal reducers in your designs, or do you prefer planetary gearboxes for high-ratio applications?
To Play with the motion yourself you can download SOLIDWORKS file from below.
| 3DPlay Model | Model Zip |
