Mold design is the process of creating a precision tool (mold or die) used in manufacturing to produce parts in large volumes through processes like injection molding, die casting, blow molding, and compression molding. The mold consists of two or more halves (core and cavity) that shape molten material (plastic, metal, rubber, etc.) into the desired form when clamped together under pressure.
Software Used in Mold Design
SolidWorks Mold Tools (Core/Cavity, Parting Lines, Ejector Pins)
SOLIDWORKS Plastics (Flow & Cooling Simulation)
1. Core Mold Design Tools in SolidWorks
SolidWorks provides specialized tools under the Mold Tools tab, which include:
A. Part Analysis & Preparation
Draft Analysis: Checks for sufficient draft angles to ensure part ejection.
Undercut Detection: Identifies areas that may cause molding issues.
Scale Feature: Adjusts part dimensions to account for material shrinkage.

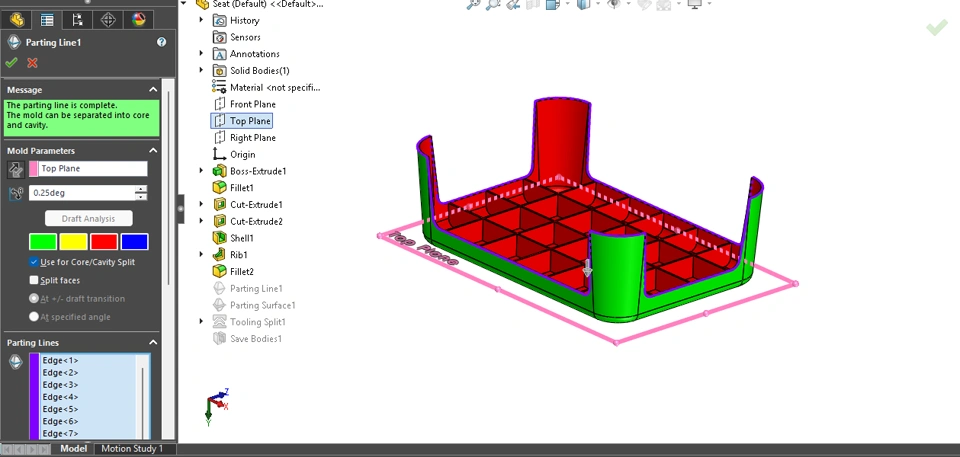

Parting Line: Defines the separation between core and cavity.
B. Core & Cavity Creation
Shut-off Surfaces: Closes open gaps in the part for proper mold separation.

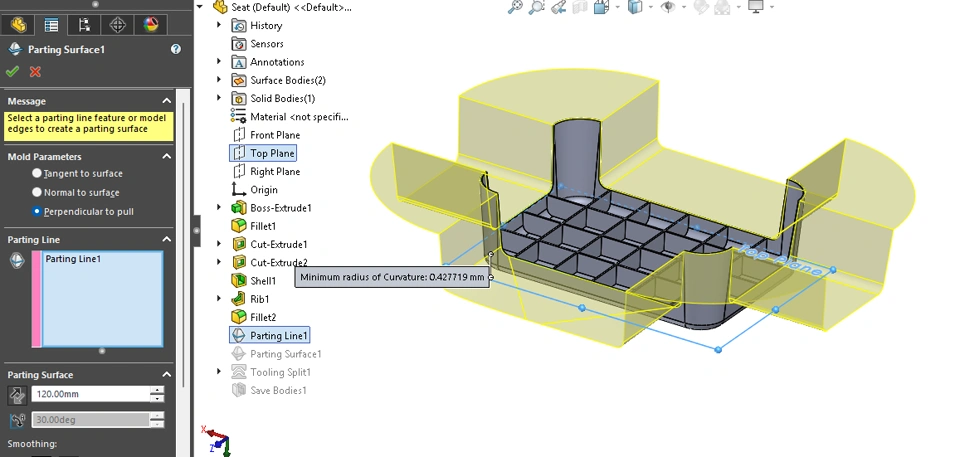

Parting Surfaces: Extends the parting line to create surfaces for mold separation.

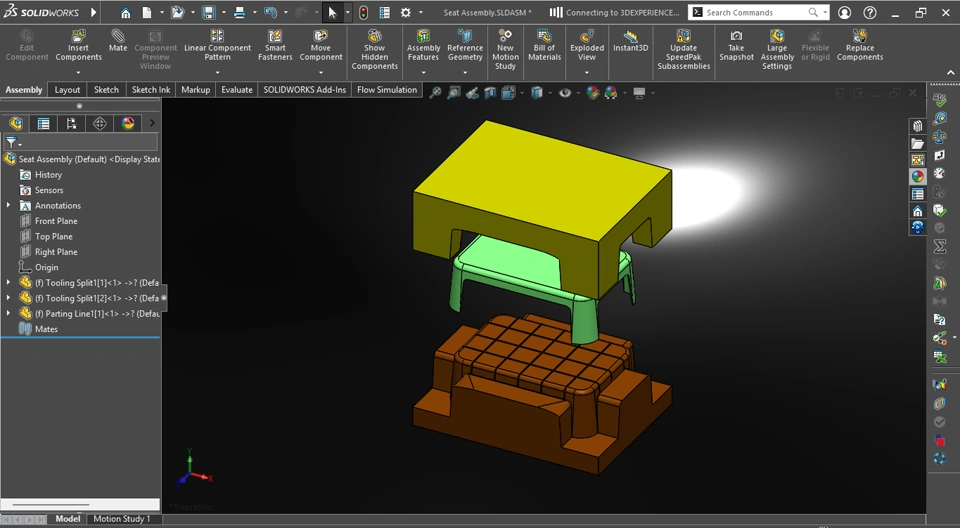

Tooling Split: Generates the core and cavity blocks automatically.
Interlock Surfaces: Adds locking features to ensure proper mold alignment.
C. Mold Base & Components
Mold Base Library: Standard mold bases (DME, HASCO, FUTABA, etc.) for quick assembly.
Ejector Pins, Sprue, Runners, & Cooling Channels: Automates insertion of standard mold components.
Side Cores & Lifters: Handles undercuts with sliding mechanisms.
2. Advanced Features in SolidWorks Mold Design
A. SOLIDWORKS Plastics (Simulation Add-on)
Flow Simulation: Predicts plastic filling patterns to avoid defects (warping, air traps, sink marks).
Cooling Analysis: Optimizes cooling channel layout for uniform part cooling.
Gate Location Advisor: Recommends optimal injection points.
B. 3D Interconnect (Import & Repair)
Supports imported CAD files (STEP, IGES) and repairs geometry for moldability.
C. Configurations & Family Molds
Allows multiple part variations in a single mold (family molds).
3. Workflow for Mold Design in SolidWorks
Import/Design Part → Check for draft, undercuts, and shrinkage.
Define Parting Line & Surfaces → Split into core and cavity.
Insert Mold Base → Select from standard libraries.
Add Ejectors, Cooling, & Feed System → Customize as needed.
Validate with SOLIDWORKS Plastics (if available).
Generate Drawings & CNC Data for manufacturing.
4. Benefits of Using SolidWorks for Mold Design
✔ Seamless Integration with SolidWorks CAD (no need for third-party software).
✔ Automated Tools reduce manual work (core/cavity splitting, mold base insertion).
✔ Simulation-Driven design minimizes trial and error.
✔ Standard Component Libraries speed up design.
When to Use It?
Injection Molding (Plastic parts)
Die Casting (Metal parts)
Blow Molding & Rubber Molding
Why is Mold Design Important?
✔ Mass Production – Enables high-volume manufacturing with consistency.
✔ Precision & Complexity – Can produce intricate geometries with tight tolerances.
✔ Cost Efficiency – Reduces per-unit cost for large batches.
✔ Material Flexibility – Works with plastics, metals, ceramics, and composites.
Industries That Rely on Mold Design
Automotive (bumpers, dashboards, engine parts)
Consumer Goods (electronics casings, kitchenware)
Medical (syringes, implants, surgical tools)
Aerospace (lightweight components, ducting)
Packaging (bottles, caps, containers)
