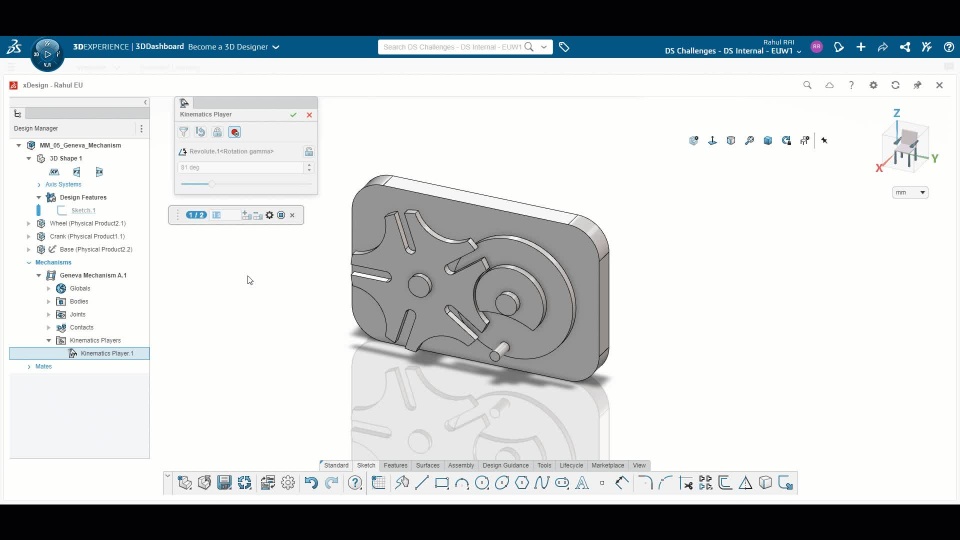

Simulation of Geneva Drive using Contacts

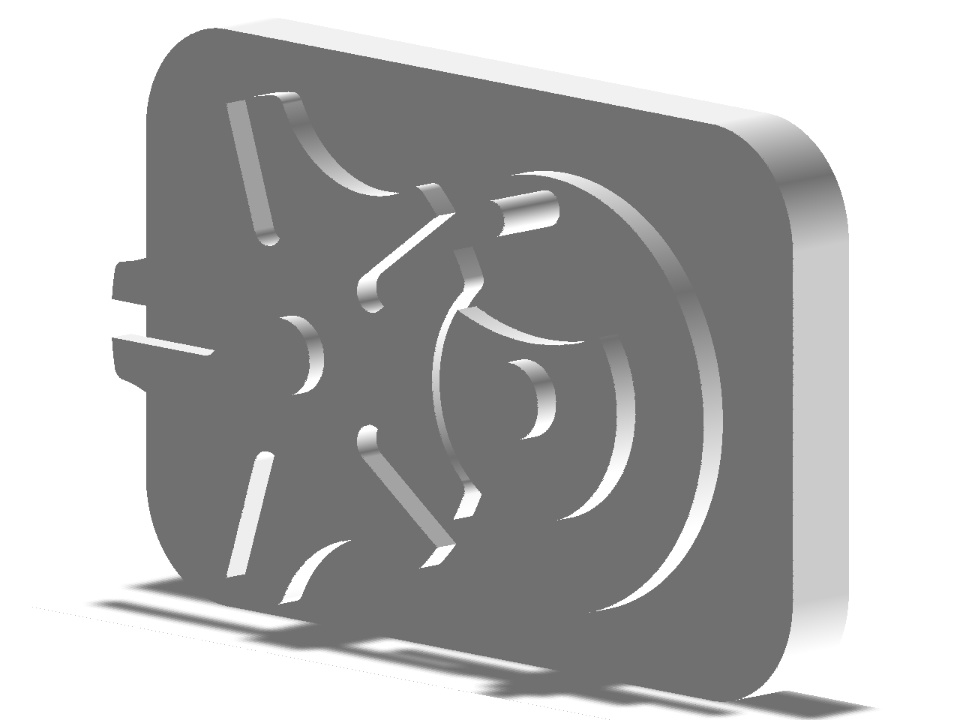

Geneva Mechanism: The Geneva drive or Maltese cross is a gear mechanism that translates a continuous rotation movement into intermittent rotary motion. The rotating drive wheel is usually equipped with a pin that reaches into a slot located in the other wheel that advances it by one step at a time.

Using xDesign

App Used: xDesign (Cloud CAD App)

Capabilities of xDesign:
✅Parts designed
✅Assembly created
✅Mechanism created

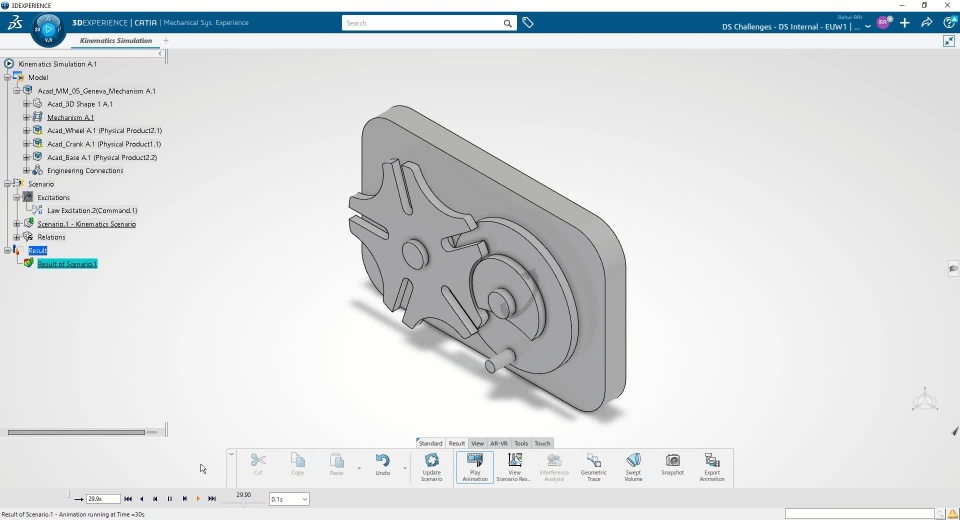

✅Kinematic Simulation
✅Real Time Visualization

What is required for xDesign?
✅Web Browser
✅Internet

Recommended course:
Explore the 3D Innovator Role

Using 3DEXPERIENCE CATIA

💪Powers of Mechanical System Design(MSD)
✅ Contact (⭐ friction, collision, etc.)
✅ Gravity ⭐
✅ Axial Spring
✅ Bushing

💪Powers of Mechanical System Experience(MSE)
✅ Position Excitation
✅ Velocity Excitation
✅ Force Excitation
✅ Torque Excitation
✅ Sequence of Excitation
✅ Probes (⭐ position, speed, acceleration, joint force, etc.)
✅ Plots
✅ Traces

Recommended courses:
Practice CATIA Mechanical Systems Design
Practice CATIA Mechanical Systems Experience
