Ever designed a cool part in SOLIDWORKS and wondered, "How would this actually be made?" That’s exactly why I explored mold design—because in the real world, a design is only as good as its manufacturability!
Injection molding and casting are among the most widely used manufacturing methods—so knowing how to design molds isn’t just a bonus, it’s a game-changer. It’s more than creating 3D models; it’s about designing parts that are ready for real-world production.
🔹 Why mold design matters:
✅ Helps you think like a manufacturer, not just a designer
✅ Prepares you for real-world production challenges
✅ Makes your CAD skills more valuable in the industry
This is how I designed this mold in SOLIDWORKS:
🔧 Define parting lines for a proper mold split.
🔧 Create core & cavity halves for mass production.
🔧 Add clearances for ejector pins and guiding components.

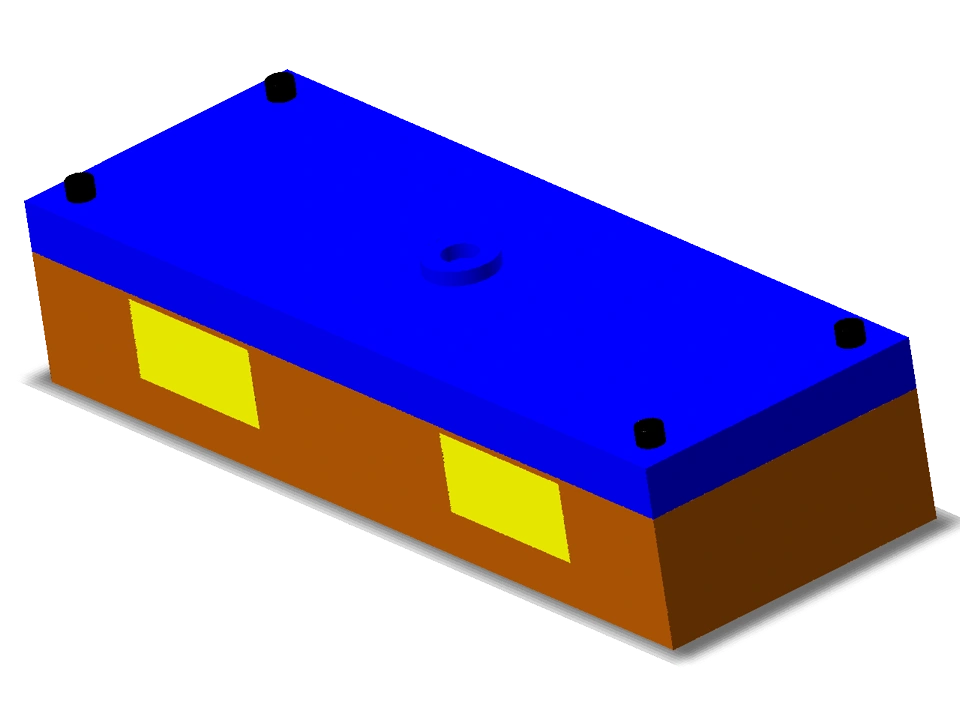

🔧 Assemble the mold for a complete injection molding setup.
🔧 Create one pouring cup at top surface and runner to enter the material.
🔹 Explore the Model Yourself!
I’m sharing the 3DXML file so you can open it, rotate, and explore how everything fits together. It’s a great way to understand how molds are structured. Try it out and let me know what you think!

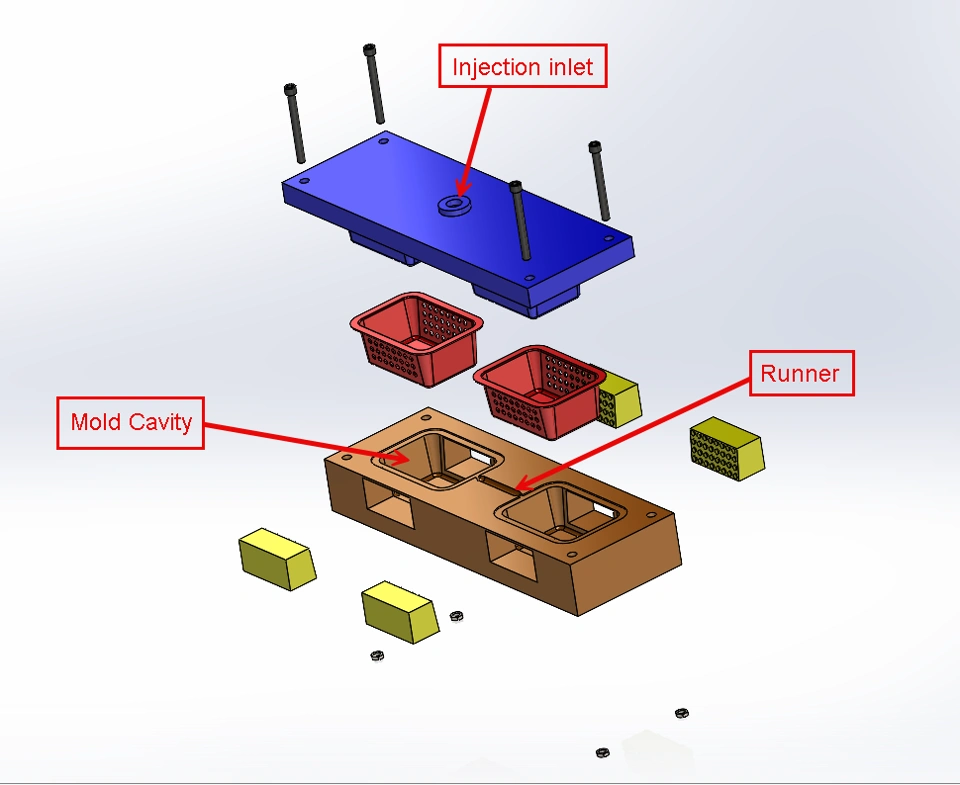

Check out the exploded view of my mold below 👇
and feel free to ask questions or share your thoughts! Would you try mold making in SOLIDWORKS?
