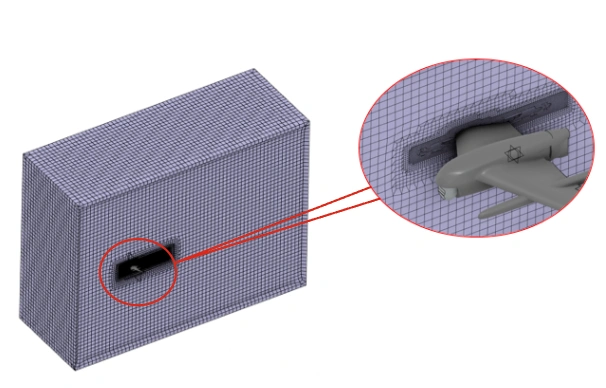

The Fluid Model Creation app helps you design and manage fluid simulation models by defining the fluid domain, material assignments, fluid/solid behavior, and meshes for simulation. Geometry and materials must be pre-defined, either using 3D modeling tools on the 3DEXPERIENCE (CATIA, xDesign etc.)  platform or imported from other software.



Scenarios with multiple analysis cases, including steps, loads, and interactions, are created and run in Fluid Scenario Creation. After simulations, Physics Results Explorer provides tools for analyzing and sharing results.

For guidance on materials, meshing, and verification, see the Materials for Simulation, Mesh Creation, and Fluid Verification guides.

Test cases can be used to validate model accuracy and compare results to expected solutions.
