Definition
A chuck is a device that radially holds tools or workpieces, primarily used in lathes and drill machines. Depending upon their work holding technique, there are various types of chucks, such as magnetic chucks, milling chucks, jaw chucks, etc., and jaw chucks are the most popular among them. A jaw chuck is a clamping device that holds objects with its jaws. It is generally attached to a spindle nose for turning applications. Depending on the machine’s spindle nose configuration, you can attach various types of jaw chucks to it, such as 3 jaw chuck and 4 jaw chuck. The major difference between 3 jaw chucks and 4 jaw chucks is the number of jaws they provide for work holding.
Working of the Jaw
A 4-jaw chuck has four equally spaced jaws used to hold workpieces or tools of various sizes and shapes. Depending on the chuck's configuration, you can move each jaw separately or simultaneously. To achieve simultaneous movement, it uses a rotating scroll plate connected to all four jaws. When the scroll plate rotates, the jaws connected to it also move. For driving the jaws separately, 4-jaw chucks use a screw mechanism where each jaw is connected to a separate screw, and rotating the screw with a tool moves the corresponding jaw. Note that a 4-jaw chuck with an independent jaw adjustment mechanism is more flexible than a self-centering 4-jaw chuck. In addition to these, there are many different types of 4 jaw chucks, and each has its own advantages and limitations.
Types
- Jaw-independent 4-Jaw Chuck
- 4 Jaw Self-centering Chuck
Applications
- The jaw configuration on a 4-jaw chuck works best on cylindrical, square, rectangular, and octagon-shaped workpieces. Also, with four jaws, you can grip and hold heavy workpieces tightly.
- 4 jaw chucks are primarily employed in woodworking and metalworking applications.

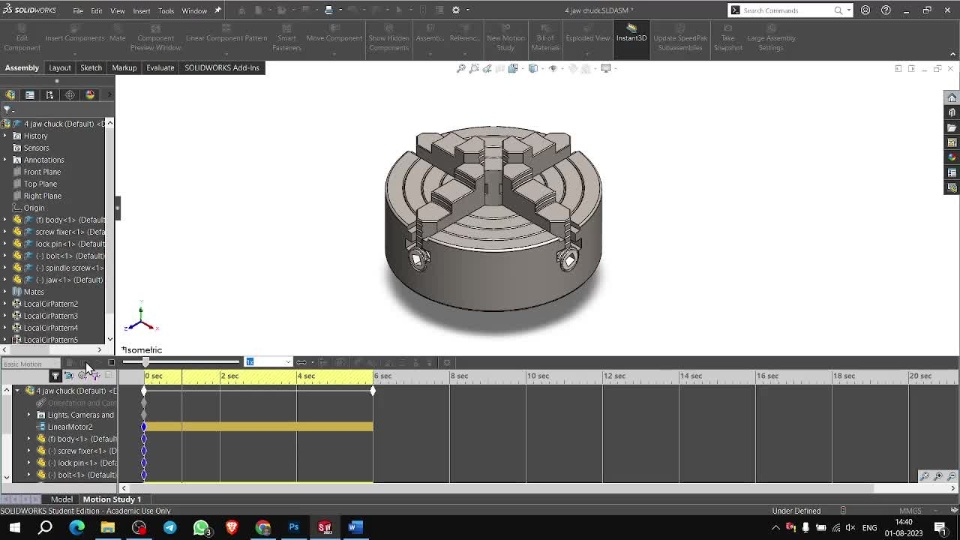

Animation using SOLIDWORKS
