I’ve completed my first Fluid-Structure Interaction (FSI) simulation using 3DEXPERIENCE SIMULIA apps! This marks the beginning of my journey into coupled multi-physics simulations. Understood how Port Region works. Fluid-Structure Interaction (FSI) works through a continuous, two-way exchange between a moving fluid and a deformable solid. First, the fluid's forces (like pressure and friction) act upon the structure, causing it to deform or move. Simultaneously, this very deformation of the structure alters the shape of the fluid's boundaries, which in turn changes the fluid flow pattern. This iterative feedback loop means neither the fluid nor the structure can be analyzed in isolation, as each's behavior directly dictates the other's response.
Apps Used:-
Fluid Model Creation
Fluid Scenario Creation
Material Definition
Mechanical Scenario Creation
Physics Results Explorer
Structural Model Creation.

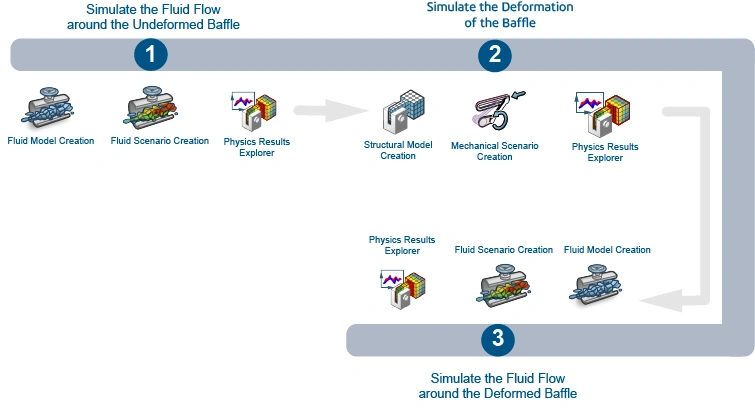

Workflow:-

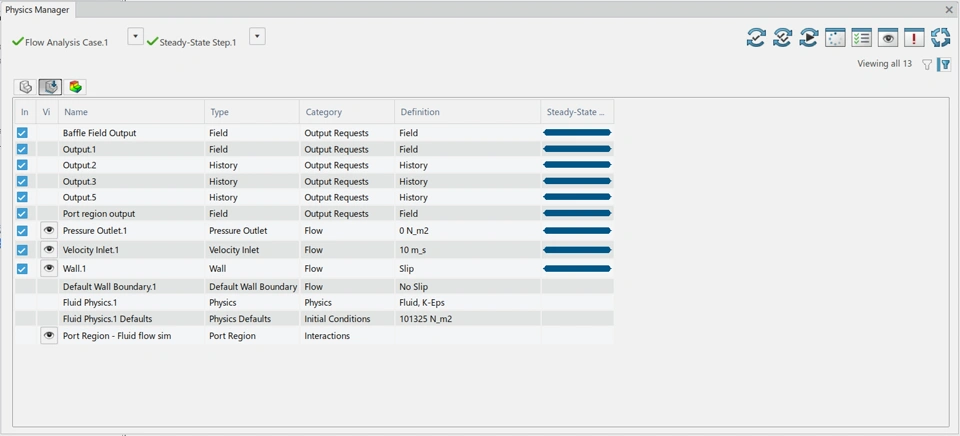

Physics Manager for Fluid Simulation:-
Results for Flow Simulation over a Baffle:-

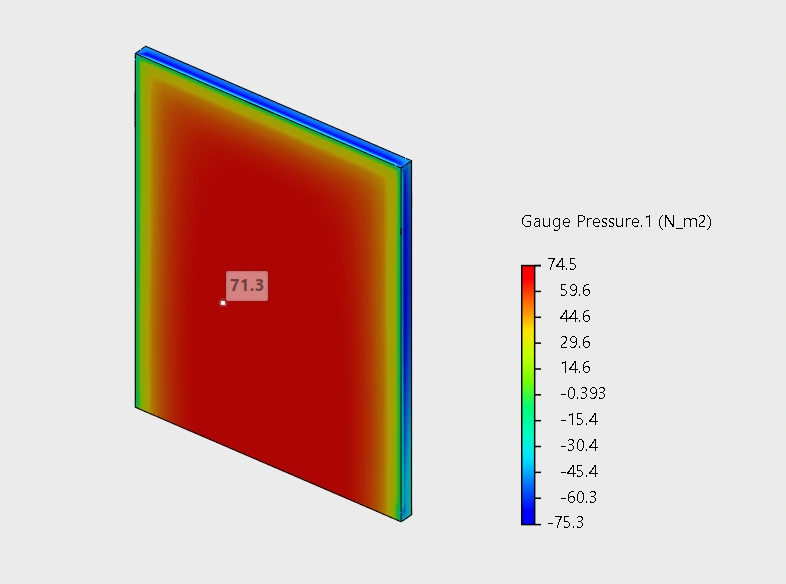

| Gauge Pressure This image shows how pressure is distributed over a Baffle plate. As air flows over the baffle, pressure is highest where it's directly obstructed, then rapidly diminishes and becomes negative along the leading and trailing edges. |

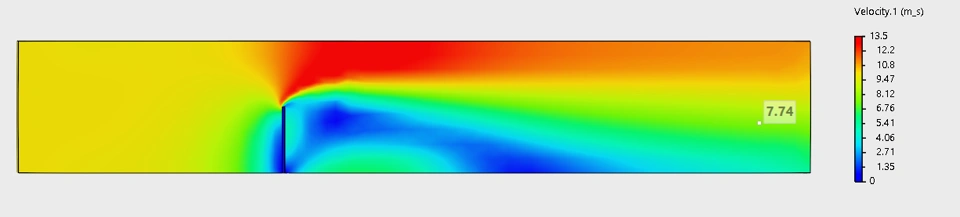

Velocity This image presents a contour plot illustrating the velocity distribution of air flowing over a flat, thin, rectangular obstacle, likely a flat plate or a slender wall, within a channel. As the uniform yellow flow (around 10 m/s) approaches from the left, it sharply encounters the obstacle, causing the air directly in front to decelerate significantly, indicated by the dark blue region signifying near-zero velocity where the flow effectively stagnates. |
For Structural Simulation:-
Fluid-Structure Interaction works by constantly adjusting the structural response based on the fluid's influence. The fluid exerts dynamic pressure and viscous forces directly onto the solid's surface, causing the structure to deform, vibrate, or even undergo large displacements. In turn, these structural deformations modify the exact shape of the boundaries that the fluid "sees," directly changing the fluid's flow path and thus altering the forces it applies back onto the structure. This continuous, reciprocal exchange means that an FSI analysis for a structure is not static; its behavior is perpetually influenced and updated by the surrounding fluid's dynamic forces.

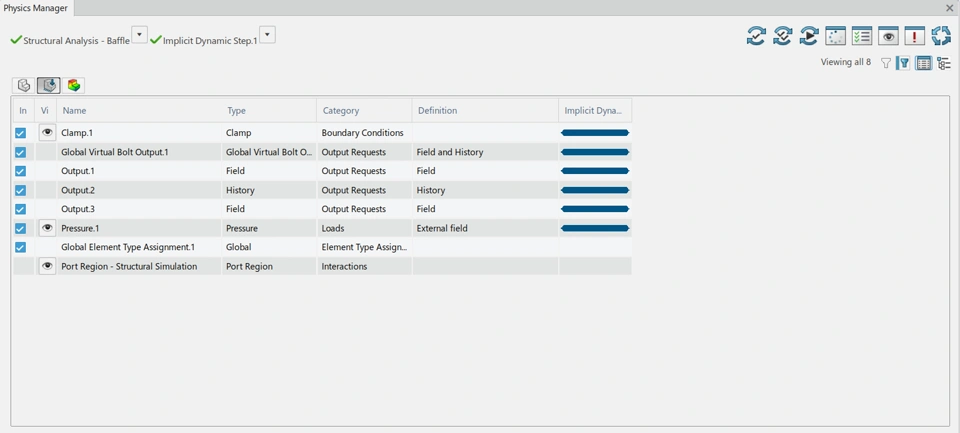

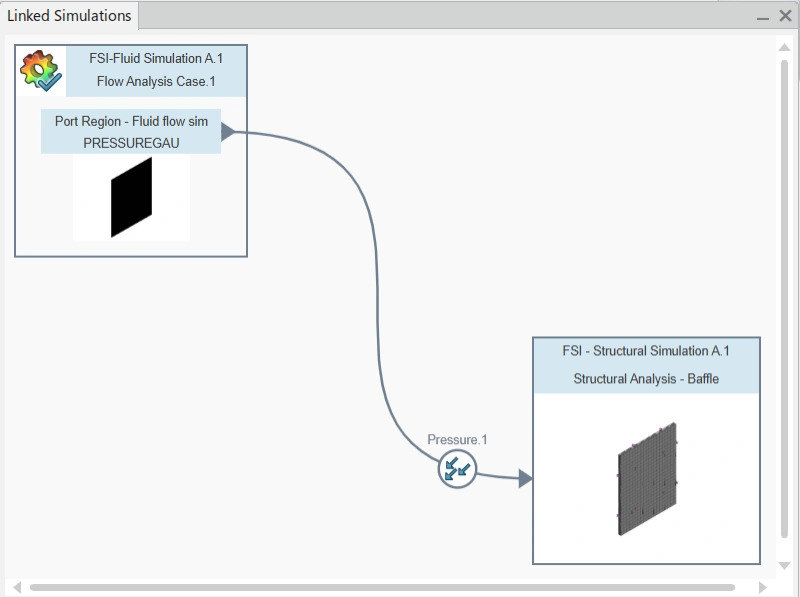

Port Region:-
The term "port" implies an access point or interface. In simulation, it's a dedicated region on the boundary of your computational domain that acts as an entry or exit point for the simulated physical quantities. It helps to abstract and simplify the complex real-world connections of your component to the larger system it operates within.
Structural Simulation Results:-

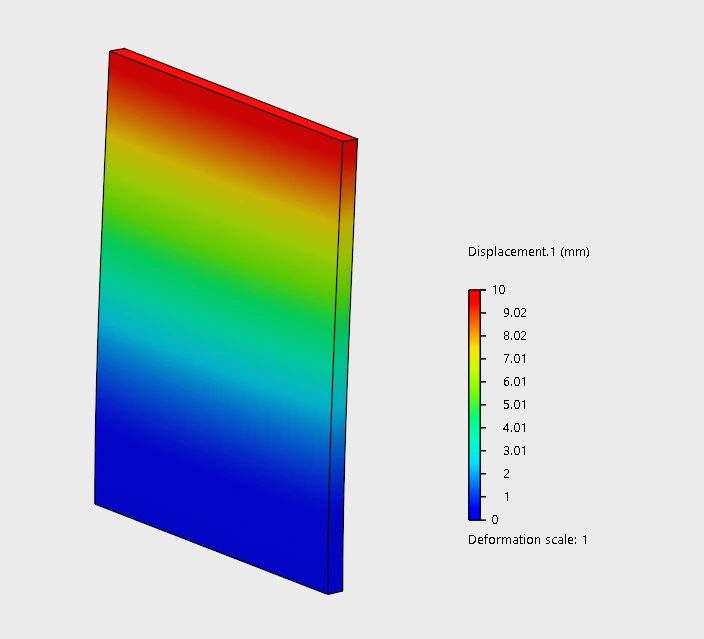

| Displacement:- This image illustrates the structural displacement of a baffle, showing it's fixed at the bottom (0mm displacement) and experiencing its maximum deflection of 10mm at the top edge, likely in response to fluid forces. |

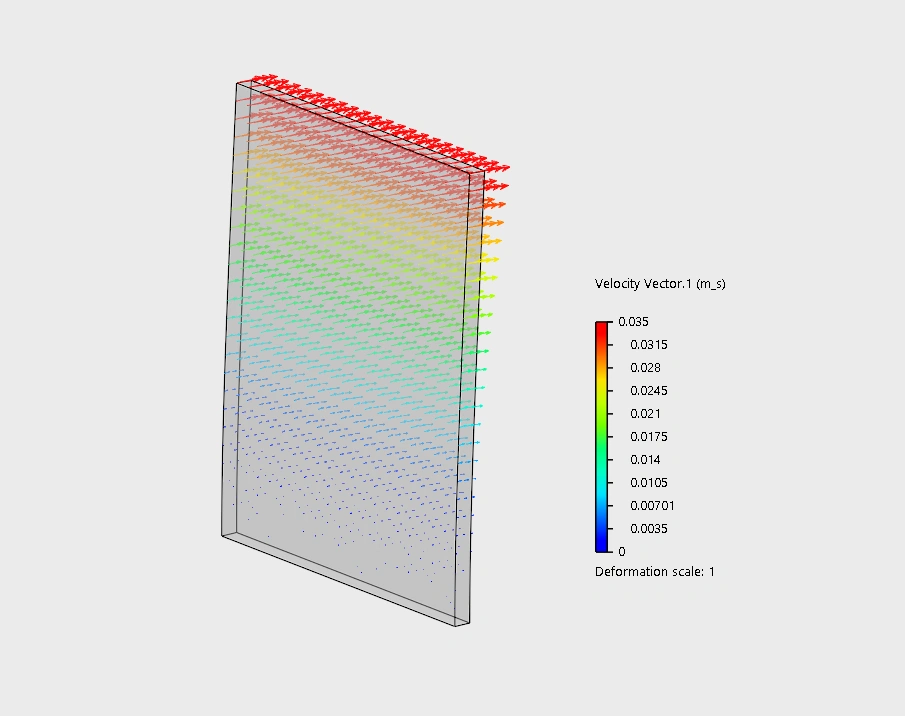

| Velocity Vectors:- The image visualizes a velocity profile where the fluid speed gradually increases from zero at the bottom (likely a fixed boundary) to a maximum at the top, characteristic of fluid flow developing along a solid surface. |
Conclusion:-
In conclusion, Fluid-Structure Interaction (FSI) represents a critical and complex phenomenon where the behavior of a fluid and a solid structure are mutually dependent, neither able to be accurately analyzed in isolation. It is the intricate, two-way coupling where fluid forces drive structural deformation, and that deformation, in turn, modifies the fluid flow, creating a dynamic feedback loop. Understanding and accurately simulating FSI is paramount in diverse engineering fields for predicting performance, ensuring safety, and optimizing designs where fluid-induced loads or flow-induced vibrations play a significant role.
