Hello Everyone,

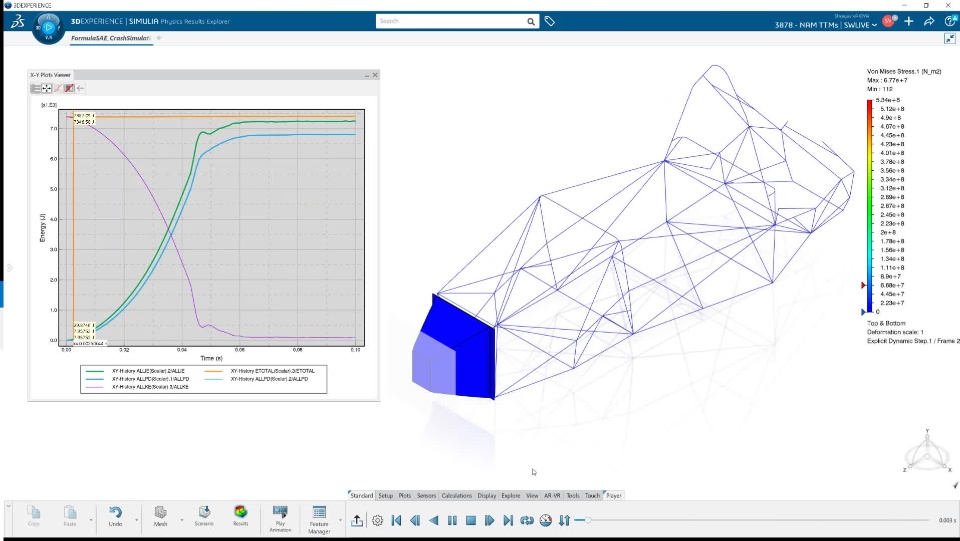

Last year I presented during a SOLIDWORKS LIVE event showcasing a crash test simulation using Structural Mechanics Engineer role on the 3DEXPERIENCE Platform. Below is a quick results animation from the simulation

Following are some key points I cover during this presentation:

1. Geometry preparation - Splitting the beams to create a node-to-node connection

2. Creating beam profiles

3. Beam meshing considerations

4. Connecting beams, shells and solids

5. Element type assignment for linear brick elements

6. Material Calibration

Here's a link to the YouTube event if you want to catch up on some advanced simulation over the weekend: https://youtu.be/KdULOl8nPYw

Enjoy!

FEA Friday ​​​​​​​Edu ​​​​​​​
