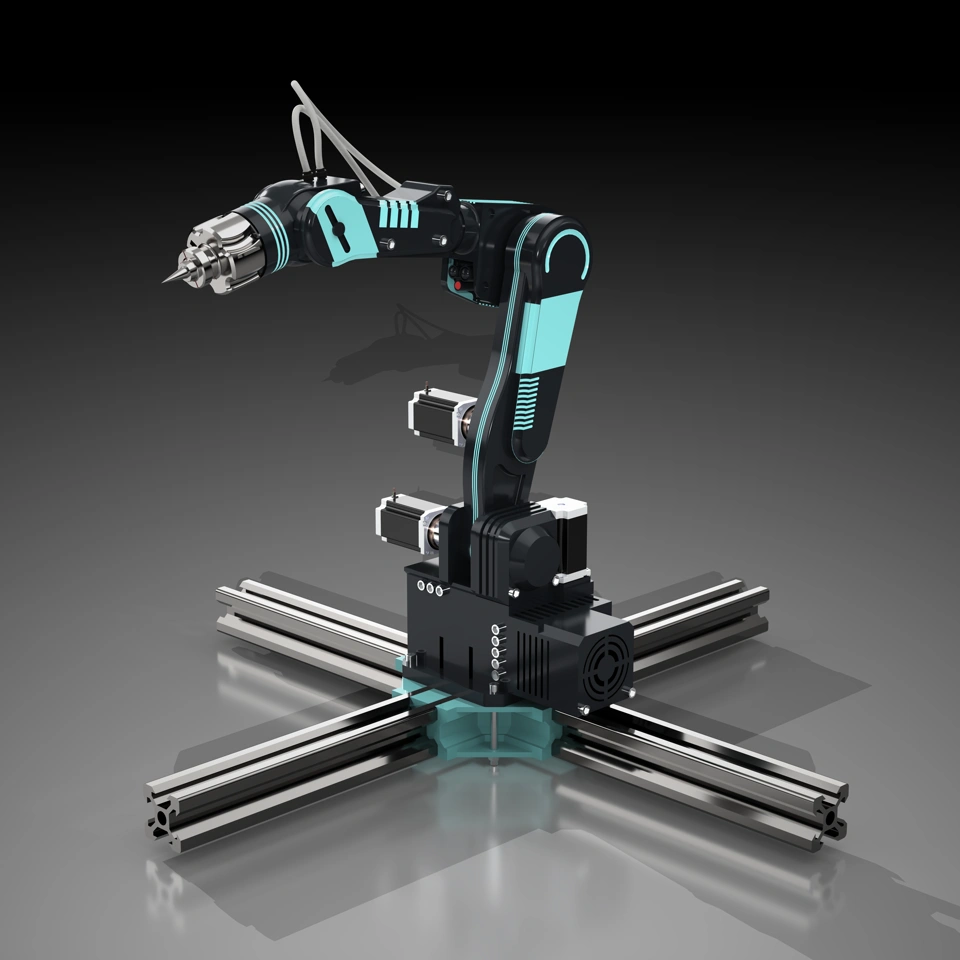

I’m excited to share my recent tutorial where I performed topology optimization on a robotic arm link using 1060 Aluminum Alloy, under a 100 N load using SOLIDWORKS and 3DEXPERIENCE Edu from Dassault Systèmes.
Mass topology optimization is essential in modern engineering because it enables the design of lightweight, cost-effective components without compromising strength or performance. By removing low-stress material, it enhances energy efficiency, crucial for robotics, aerospace, and automotive applications.
It also supports sustainability by minimizing waste and aligns perfectly with advanced manufacturing methods like 3D printing. This approach leads to innovative, high-performance designs that are both practical and environmentally responsible.
⚜️ Objective
Reduce weight while maintaining structural performance — ideal for energy-efficient robotics!
⚜️ Step-by-Step Topology Optimization in SOLIDWORKS

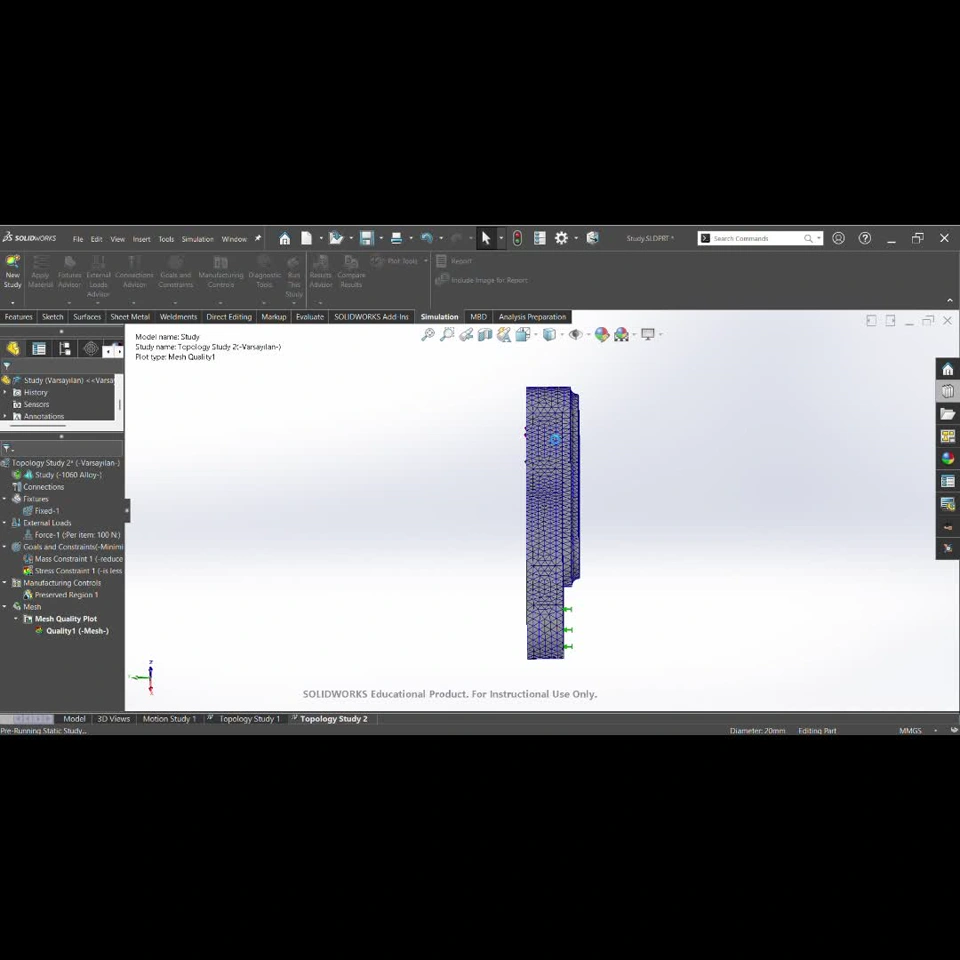

- Create Topology Study --------> Open a new Topology Study.
- Material Selection ---------------> Assigned Aluminum 1060 Alloy
- Apply Fixtures --------------------> Fixed one end to simulate the mounted base of the link.
- Apply Load -------------------------> Applied a 100 N force to the opposite end to represent operational stress.
- Define Goals ----------------------> to goal Minimize mass and set preserved regions to maintain interfaces or bolt zones.
Meshing -----------------------------> Generated a fine mesh for higher accuracy and resolution.
➡️Run the Topology Optimization
SOLIDWORKS analyzed low-stress zones and suggested material removal.
➡️Result Interpretation
Reviewed the optimized material layout. Exported the result and remove all unnecessary area
⚜️ This test reflects how engineering + optimization + the right material can transform robotic design.
Follow me for more🔥 ...........
