I've been exploring the fascinating world of Compliant Mechanisms—designs that utilize flexible structures to achieve motion, eliminating the need for traditional rigid joints. This approach leads to lightweight, cost-effective, and efficient solutions in various applications.
Steps I Followed:
- Took a reference image of an existing product for sketching.
- Modified the design to fit the required functionality.
- Checked dimensions to ensure smooth operation.
- Adjusted for 3D printing to enhance printability.
Key Benefits of Compliant Mechanism:
- Reduced Part Count: Single-piece designs simplify manufacturing.
- Cost-Effective Production: Compatible with 3D printing and injection molding techniques.
- Enhanced Durability: Fewer moving parts result in less wear and tear.
- Energy Efficiency: Ideal for robotics, medical devices, and adaptive structures applications.

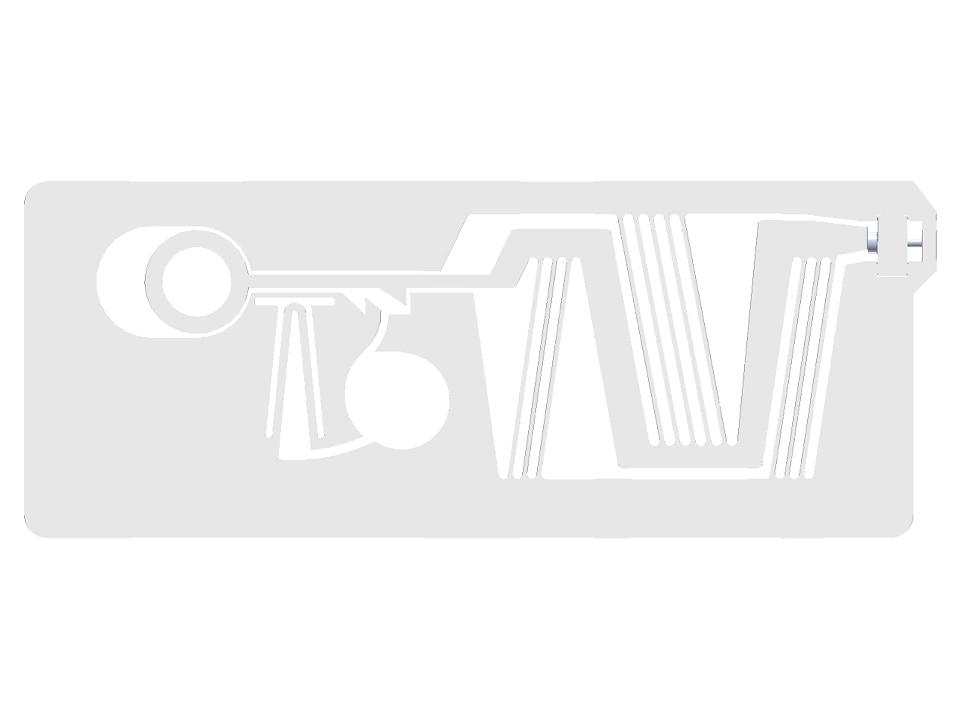

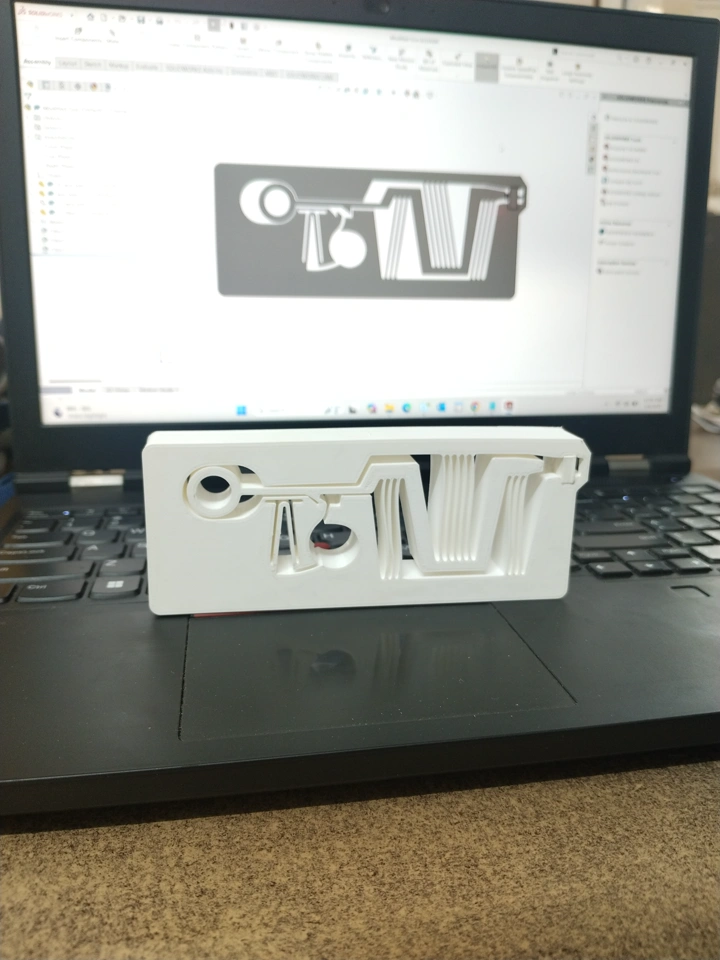

My Project: I designed a compliant mechanism using SOLIDWORKS and brought it to life with a 3D printer. This project demonstrates how elastic deformation can be utilized to design efficient and durable mechanical systems.
See it in Action:
Try It Yourself: I've made the 3D printable model available for you to experiment with.
Working of Mechanism:
To engage the trigger with the extension of a rigid link, the circular end of the link is pulled until it engages with the hole.
Once engaged, the flexible links undergo elastic deformation, bending rather than breaking due to their reduced thickness. These links function as compliant springs, storing and releasing mechanical energy efficiently.
Upon releasing the trigger, the stored elastic energy in the flexible links restores them to their original configuration. This controlled deformation facilitates a straight-line motion transfer to the rigid link, ensuring smooth and precise mechanical operation.
