Um entalhe de dobra de chapa metálica é um pequeno corte ou recuo feito no final de uma linha de dobra em uma peça plana de chapa metálica. Isso foi projetado para ajudar os operadores de dobradeiras a posicionar o material em uma dobradeira para uma abordagem mais discada. Principalmente sendo usado como um guia visual durante todo o processo de dobra. Este tutorial explica como criar esses entalhes de dobra de chapa metálica no SOLIDWORKS.

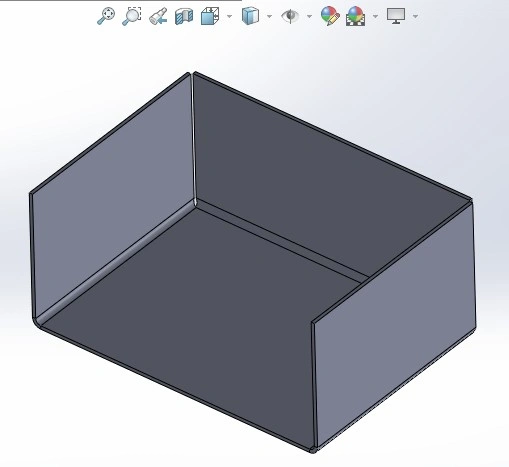

No SOLIDWORKS, abra a peça de chapa metálica Neste exemplo, há três dobras.
Translation: A sheet metal bend notch is a small cut or indentation made at the end of a bend line in a flat piece of sheet metal. This is designed to help press brake operators position material in a press brake for a more dialed approach. It is primarily used as a visual guide throughout the bending process. This tutorial explains how to create these sheet metal bend notches in SOLIDWORKS.In SOLIDWORKS, open the sheet metal part. In this example, there are three bends.

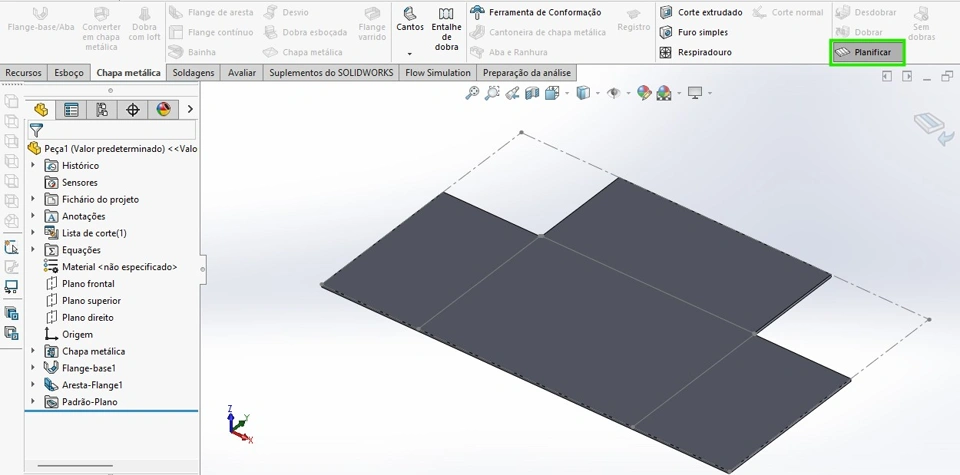

Planifique a peça usando a ferramenta Planificar.
-- Flatten the part using the Flatten tool.

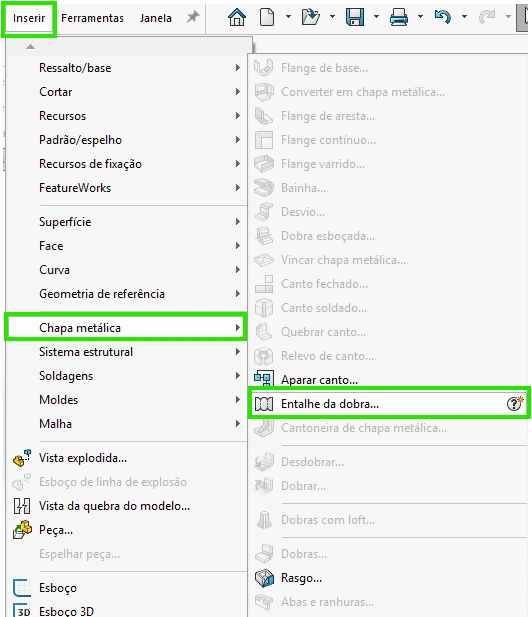

Navegue até Inserir > chapa de metal > “Entalhe de dobra” ou na aba chapa metálica “Entalhe de dobra”
-- Navigate to Insert > Sheet Metal > “Bend Notch” or the Sheet Metal tab “Bend Notch”

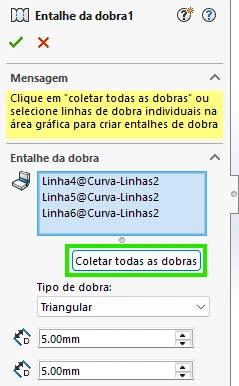

Isso abrirá a tela do PropertyManager para entalhes de dobra. Vamos começar coletando todos as dobras
-- This will open the Bend Notches PropertyManager screen. Let's start by collecting all the bends

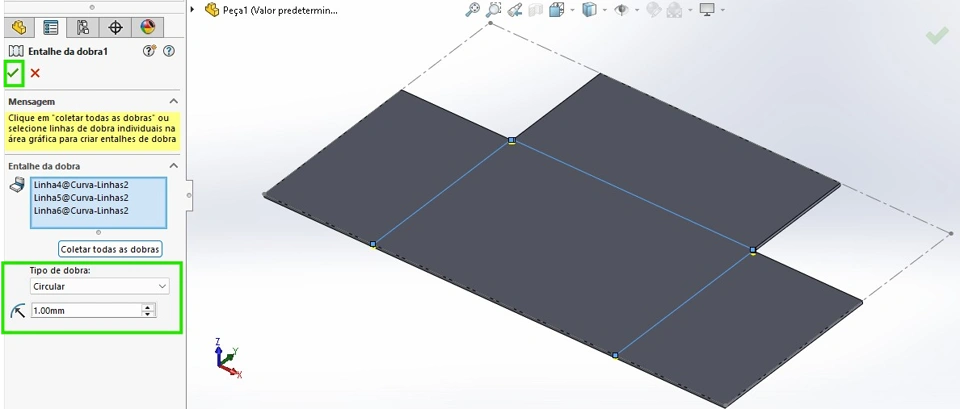

Para Tipo de entalhe, você verá três opções: Triangular, Circular e Retângulo. Para este exemplo, vamos usar circular com um raio de 1mm. Selecione a marca de seleção verde.
-- For Notch Type, you'll see three options: Triangular, Circular, and Rectangle. For this example, we'll use circular with a radius of 1mm. Select the green checkmark.
É importante observar que os entalhes de dobra só serão exibidos no estado Planificado por se tratar de um recurso pós planificação na árvore de projeto.
-- It is important to note that bend notches will only be displayed in the Flattened state as it is a post-flat feature in the design tree.
