I modeled and simulated both Arch and Beam Bridges in SOLIDWORKS to study their differences in strength, span, and construction. Here’s a quick breakdown:
| Arch Bridge | Beam Bridge |
|---|---|
| Curved design, distributes load through compression into abutments | Straight beam, load carried through bending (compression at top, tension at bottom) |
| Very strong, suitable for long spans (up to ~1000 ft) and heavy loads | Best for shorter spans (up to ~200 ft), strength depends on material & supports |
| Complex, higher cost, but elegant & iconic | Simple, quick, cost-effective, but less aesthetic |
🔍 Key Takeaway:
The arch bridge excels in strength and durability because of its efficient load distribution—this is why many historic arch bridges still stand today. It is ideal for long spans and iconic structures, though it comes with higher construction costs.
The beam bridge, on the other hand, is one of the simplest and most widely used bridge types. While it can’t span very long distances, it’s perfect for shorter crossings where cost, speed, and practicality matter most.

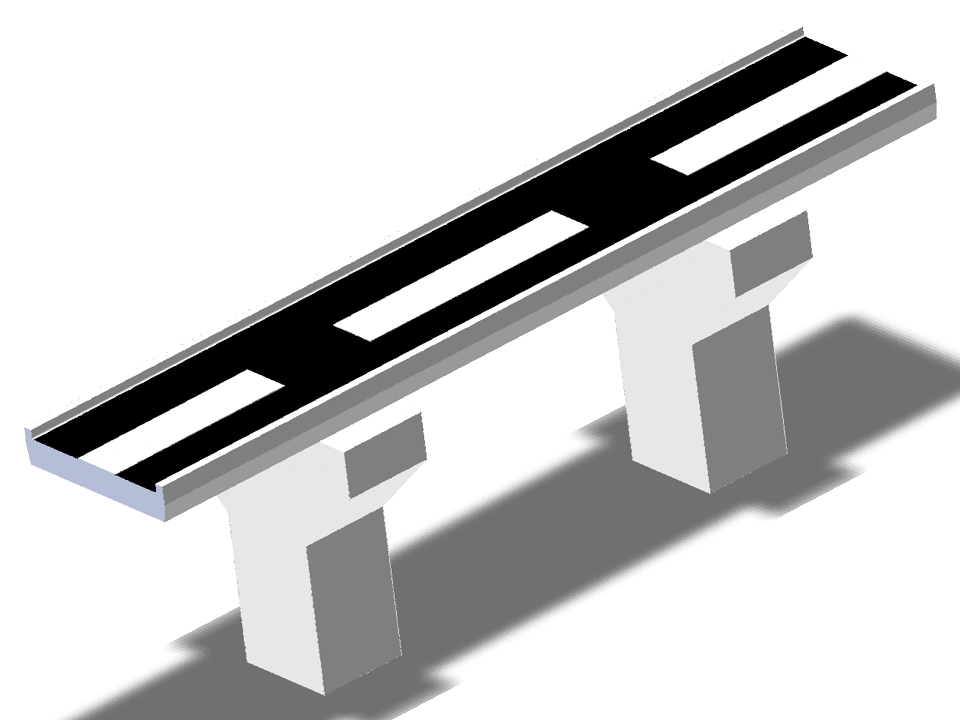

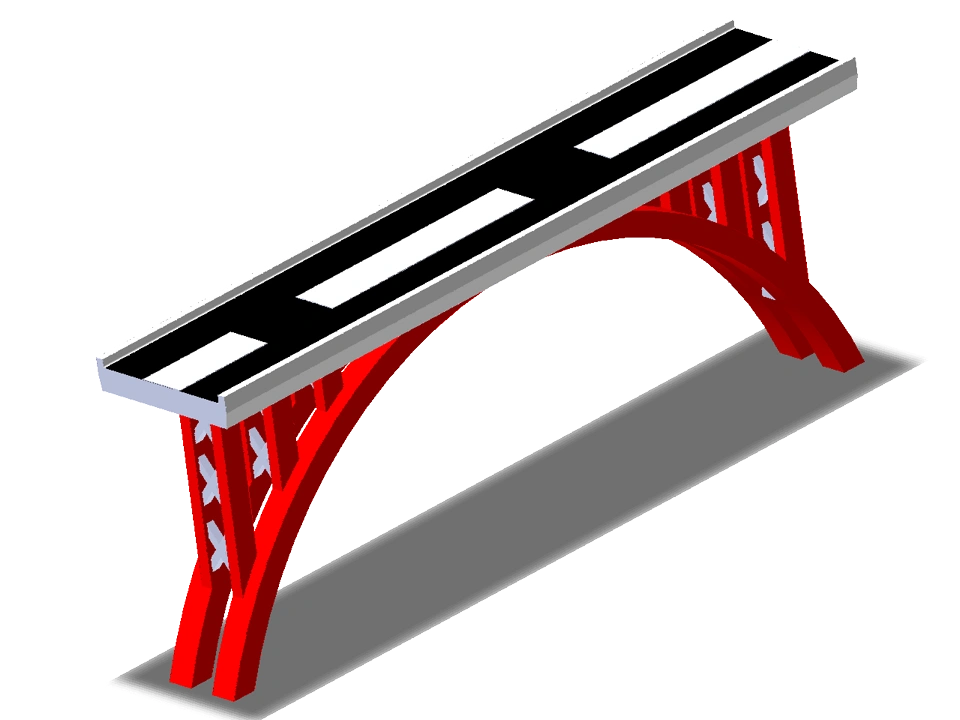

Here are the 3DXML models:
💡 In my SOLIDWORKS simulations, I could clearly see how:

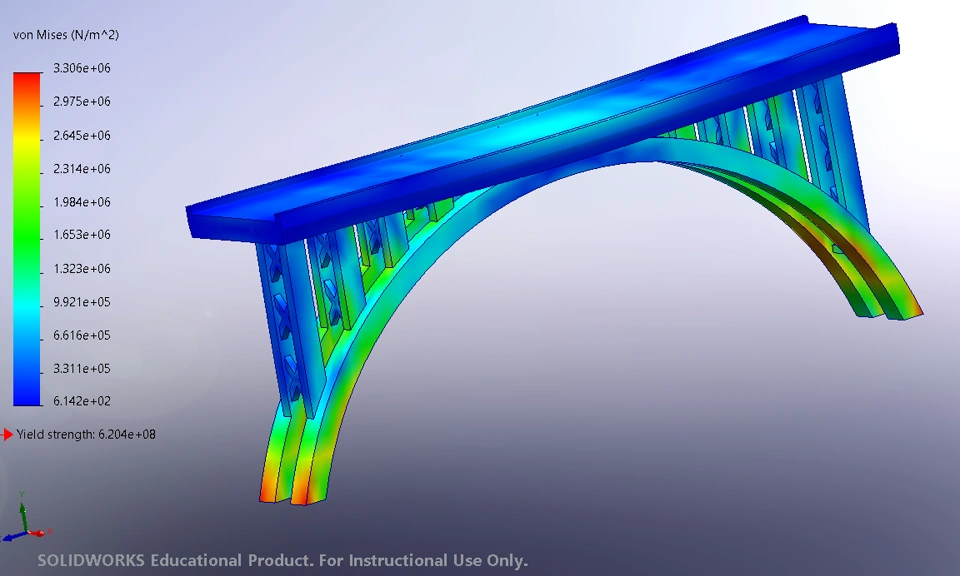

- Arch Bridge → The curved shape naturally pushes the load into the supports (abutments) at both ends. This reduces bending in the bridge and makes it strong enough to handle heavy loads and longer spans.

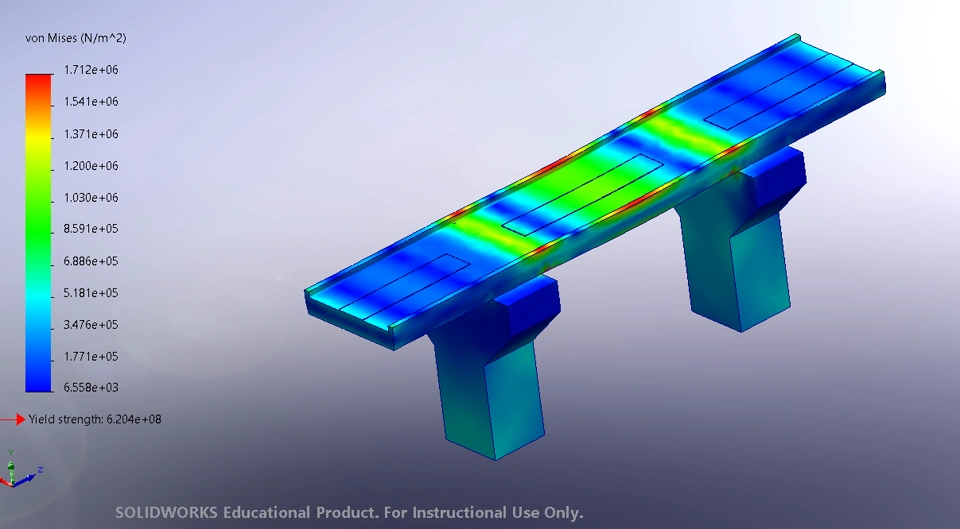

- Beam Bridge → The straight beam takes the load mainly through bending. The top side gets compressed while the bottom side is stretched. Because of this bending stress, beam bridges can’t be made very long and are better suited for shorter spans.
👉 Question for you all: If you were the designer, would you go for the elegance and strength of the Arch Bridge or the simplicity and efficiency of the Beam Bridge?
