Hello 3DEXPERIENCE Community!
For my submission to the "Let's Design Challenge," I wanted to tackle the intersection of sports and engineering: How exactly does a football behave during a high-speed, spinning free-kick?
This is my very first deep dive into CFD. Using SOLIDWORKS and Flow Simulation, I modelled a classic 32-panel football from scratch to establish a scientific baseline before attempting "next-generation" panel designs. Here is a breakdown of my methodology, calculations, and my first steps into aerodynamics.
1. Why the 32-Panel Design?
The traditional 32-panel geometry remains the gold standard for stability. The deep seams between the panels act as "turbulators." They intentionally trip the boundary layer of air from laminar to turbulent. This added kinetic energy delays flow separation at the back of the ball, reducing the low-pressure wake and preventing the unpredictable "knuckleball" effect.
2. CAD Modeling & Material Layers

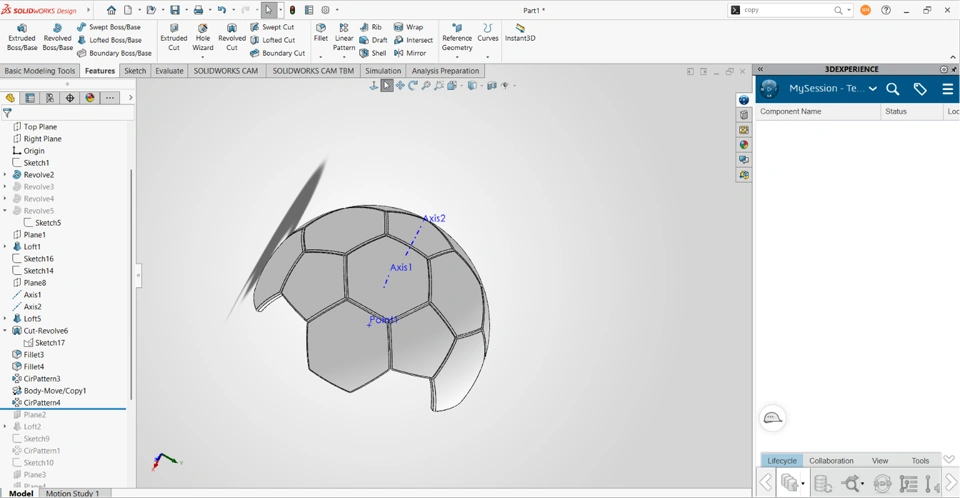

Building a mathematically perfect Truncated Icosahedron required careful geometric planning. I established core axes to define the precise dihedral angles between the pentagonal and hexagonal faces, generating surface lofts for the primary panels.

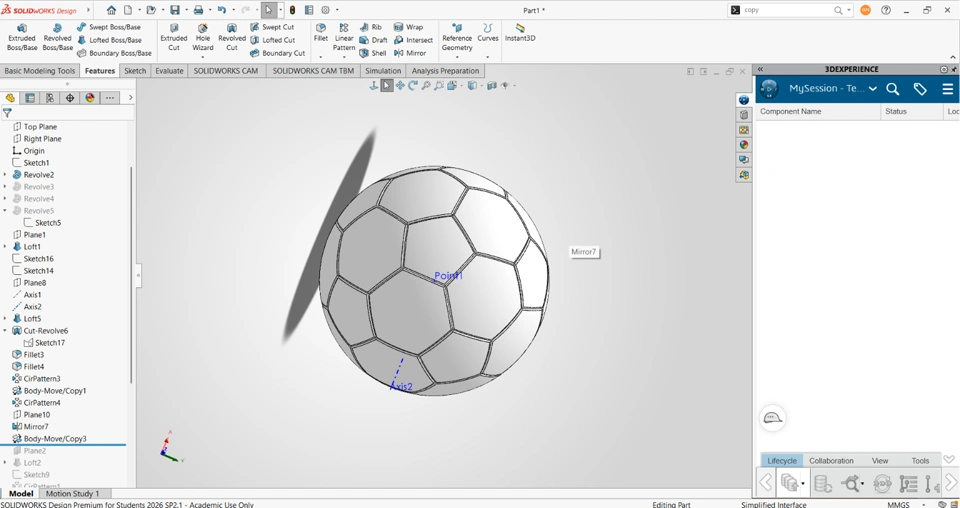

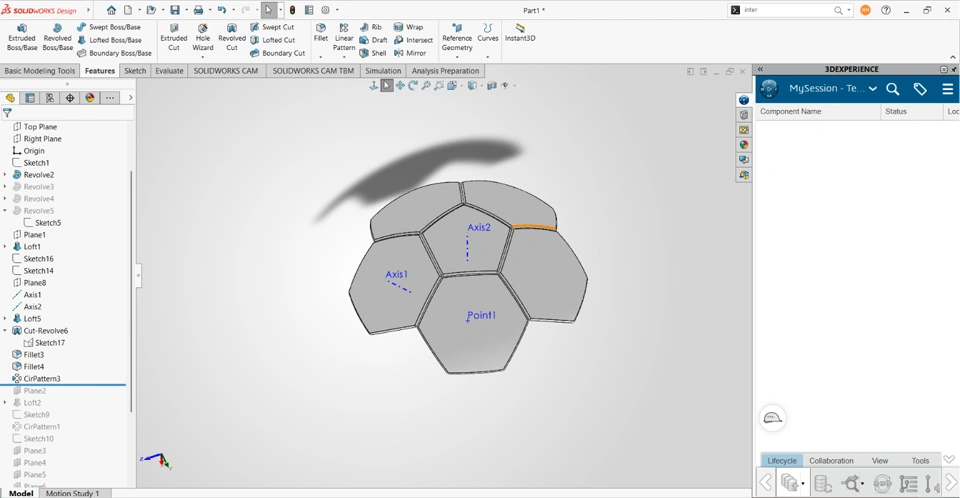

Creating the deep seam channels the primary aerodynamic drivers was crucial. I utilized revolve and cut features, then used a circular pattern to generate the solid bodies for the full sphere.

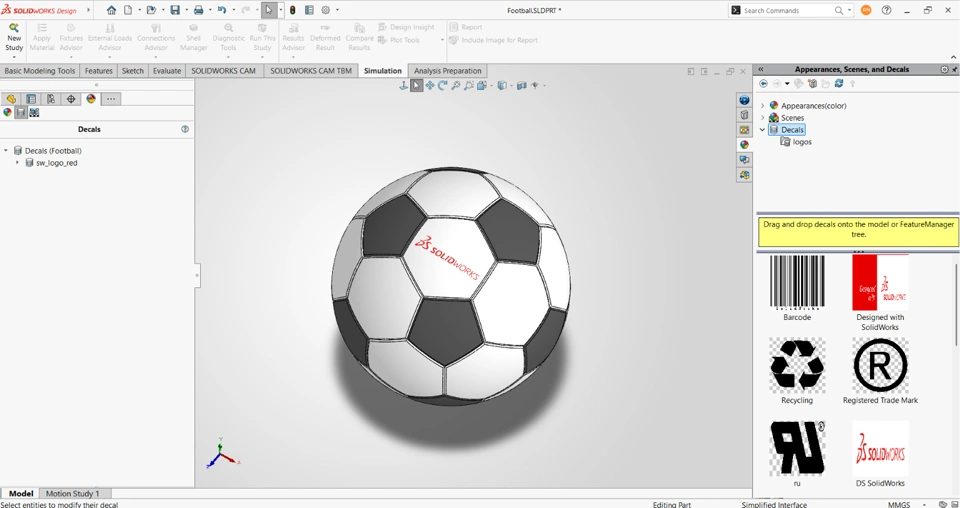

Material Specifications: To accurately represent a match ball, I modeled strictly to FIFA Size 5 regulations (220mm diameter, 1.5mm seam depth). While modeled as a solid body for this external CFD test, a real ball consists of distinct layers:
- Outer Casing: Polyurethane (PU) synthetic leather (resists water absorption and wear).
- Lining: Multiple layers of polyester/cotton fabric bonded with latex adhesive (provides structure and bounce).
- Bladder: Butyl or latex rubber (holds air pressure).
3. CFD Setup & Mathematical Validation

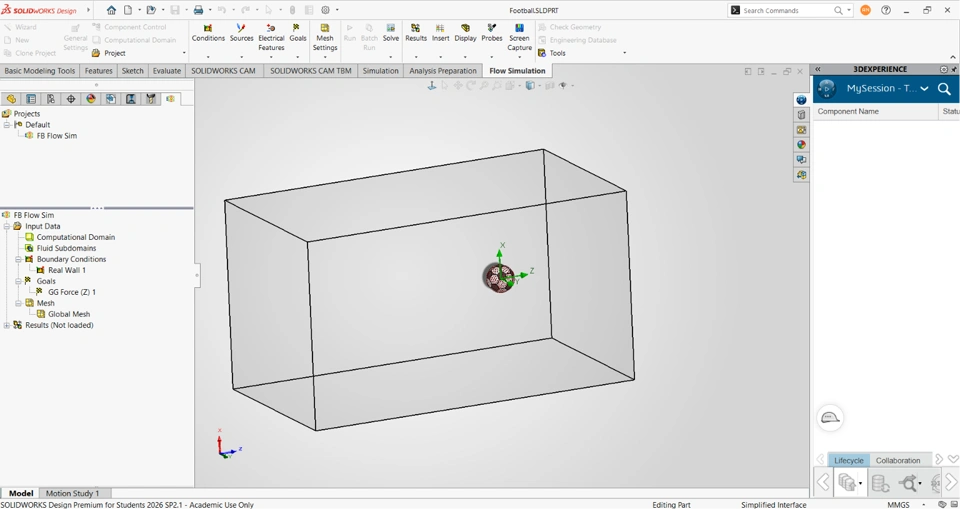

To mimic a real-world free-kick at 108 km/h (30 m/s) with heavy spin, I expanded the computational domain and set the boundary conditions.

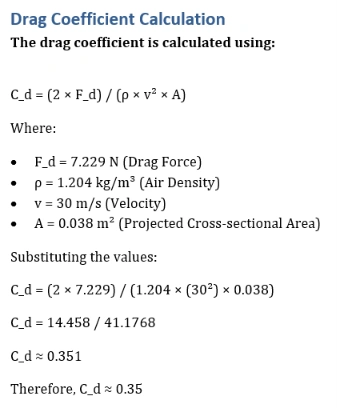

The Calculation: My SOLIDWORKS Goal Plot resulted in an Averaged Z-Axis Force (Drag) of 7.229 Newtons. To prove this design is aerodynamically sound, I calculated the Drag Coefficient (C_d):
A C_d of 0.35 proves mathematically that the 1.5mm seams are successfully tripping the boundary layer and stabilizing the wake!
4. Results & The Learning Curve

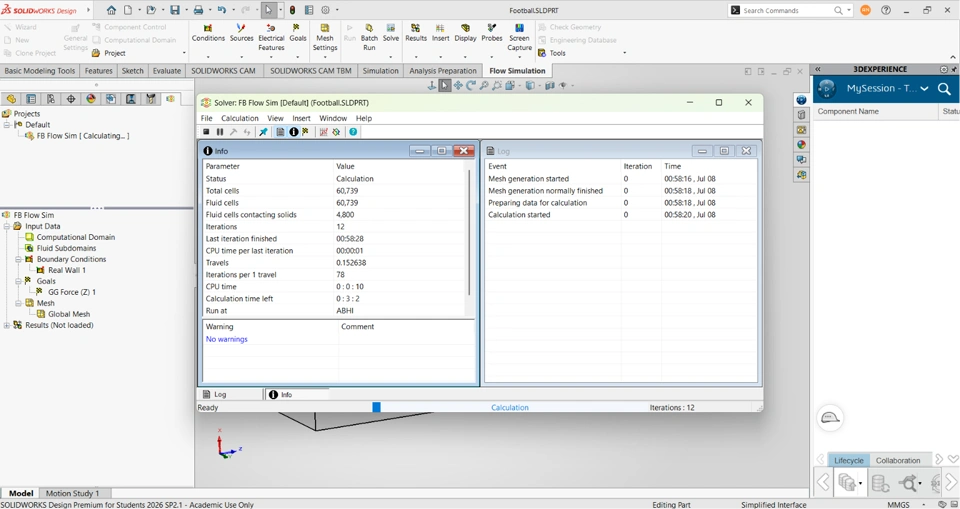

As this was my first CFD project, extracting the data was a massive learning experience. My initial flow trajectories generated arrows across the entire domain, which was too broad.

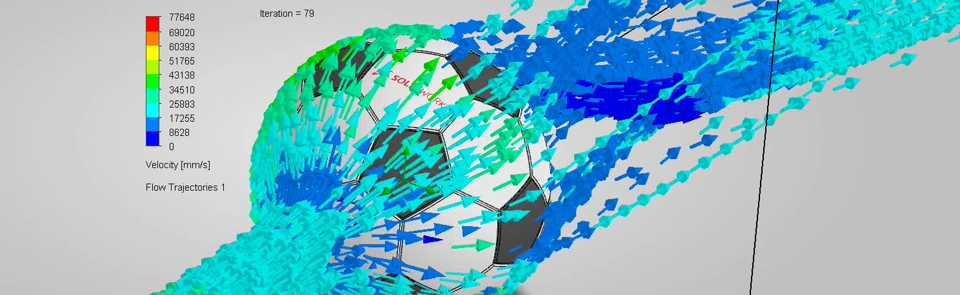

Finally, generating 3D arrow trajectories perfectly captured the chaotic, turbulent zone of the wake!
5. Conclusion
This project was a fantastic deep dive into surfacing and aerodynamics. Establishing this baseline mathematically proves the efficiency of traditional seam topologies.
Thanks for reading! 3DART EngineeringWorldCup
