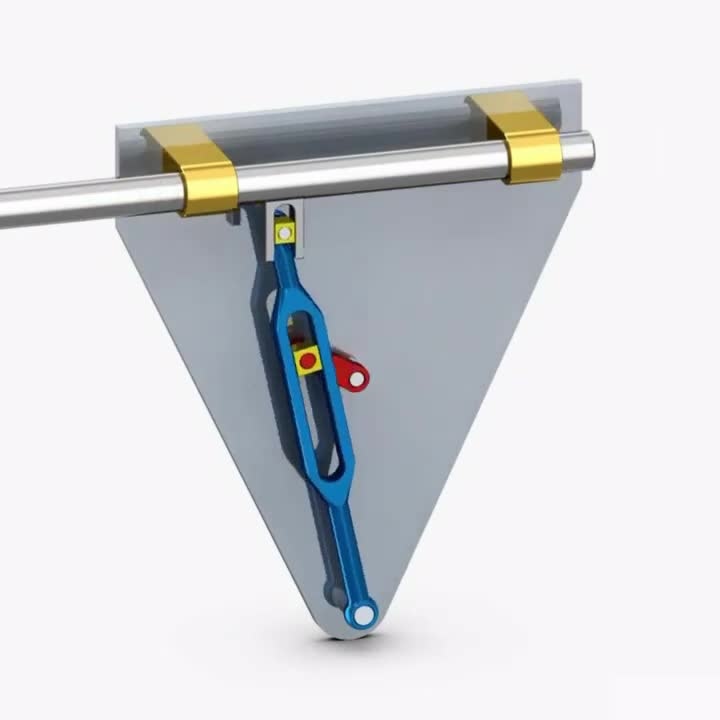

A quick return motion mechanism is a mechanical device that converts a rotary motion into a reciprocating motion, where the return stroke is faster than the forward stroke. This mechanism is commonly used in machines that require a fast return stroke, such as in shapers, slotting machines, and metal-cutting machines.

The quick return mechanism typically consists of a crankshaft, a connecting rod, and a slider-crank mechanism. The crankshaft rotates and is connected to the connecting rod, which in turn is connected to a slider that moves back and forth. The slider is attached to a tool or workpiece, and the reciprocating motion of the slider is used to perform the required task.

The quick return mechanism is designed such that the forward stroke of the slider is slower than the return stroke. This is achieved by adjusting the length of the connecting rod and the position of the crankshaft. The mechanism is widely used in industries for metal forming and shaping processes, such as punching, cutting, and shearing.
