I and my friends @AA and @SA were working on a course project named Design of EOT. In this course project. I had to deal with the design and rendering of the EOT and the design took me a week to complete of course I had college work too. We had decided to design a 10-tonne double girder EOT. I referred to the PSG design data book and calculated all safe dimensions for the components. When I started to design the EOT I found out that dimensions are not enough to fully design the components so I had to assume so many dimensions. The design includes Rope, Sheave, Bearing, Axle, Hook, Thrust Bearing, Nut, Cross piece, Shackle Plate, Drum, Hoisting motor, Drum shaft, Bearing for drum shaft. I downloaded the bearings from the SKF website. For other components like a girder, base support I referred to the images from google and design them accordingly.

I design it in SOLIDWORKS.

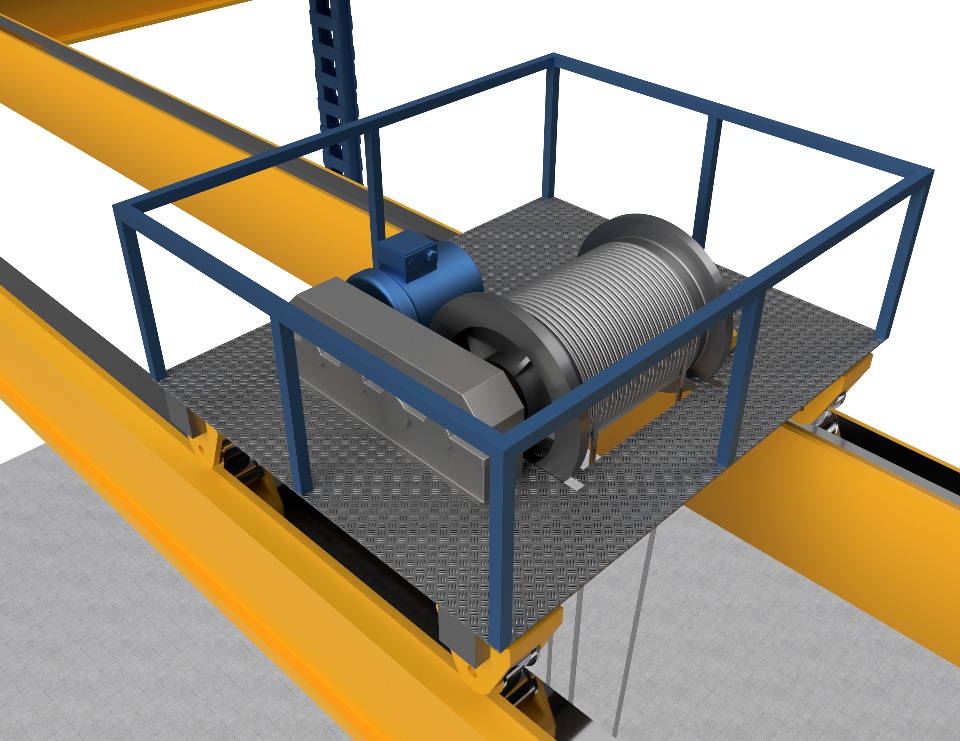

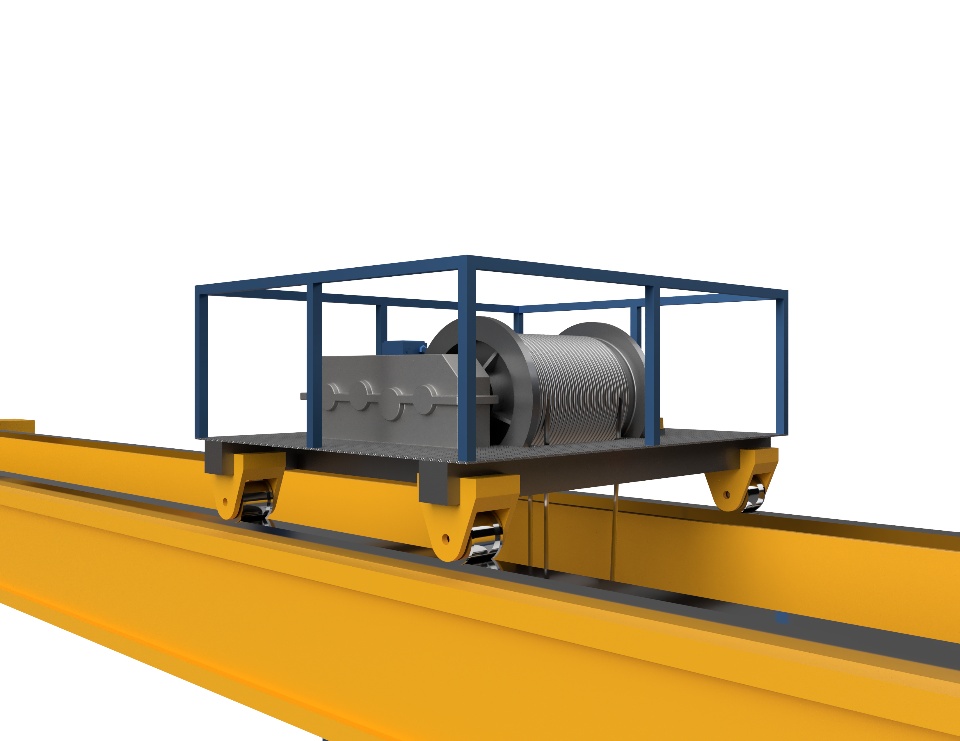

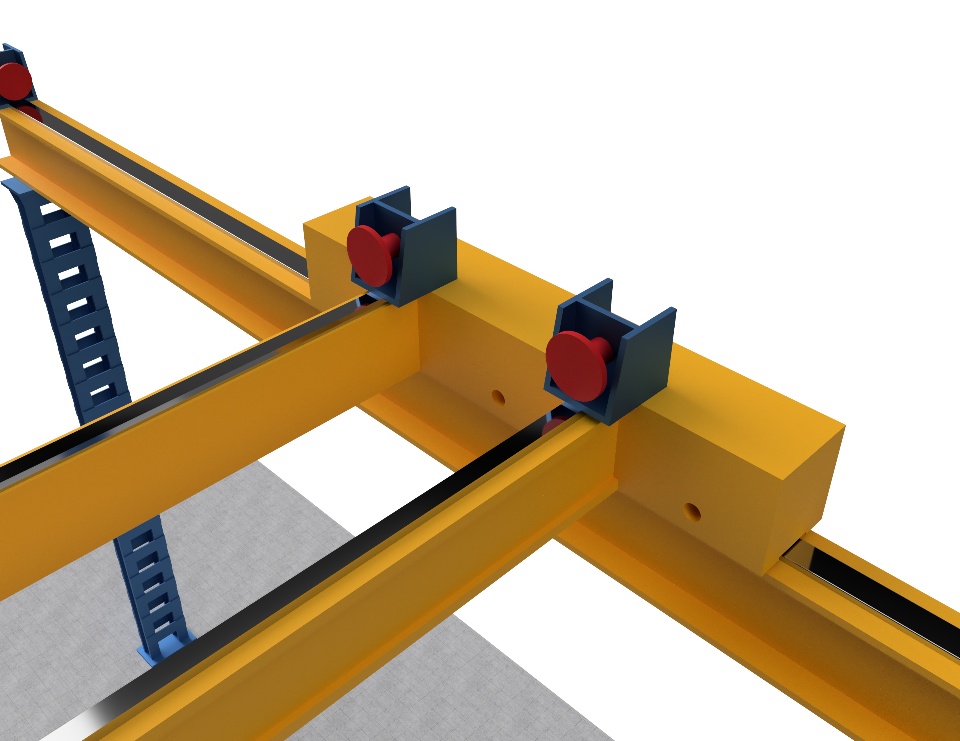

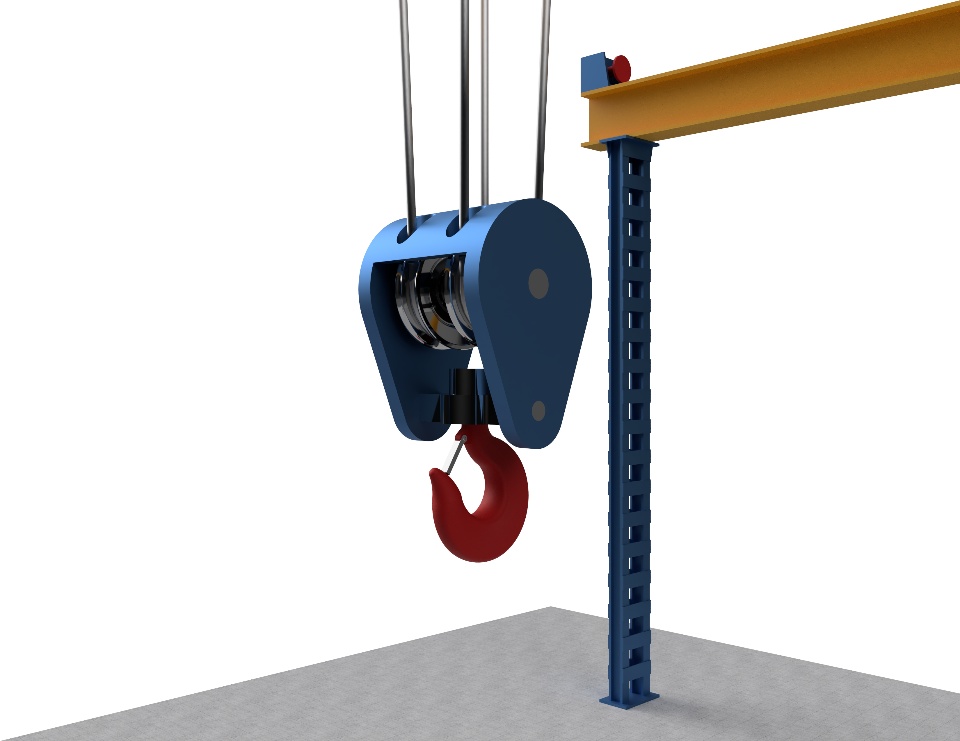

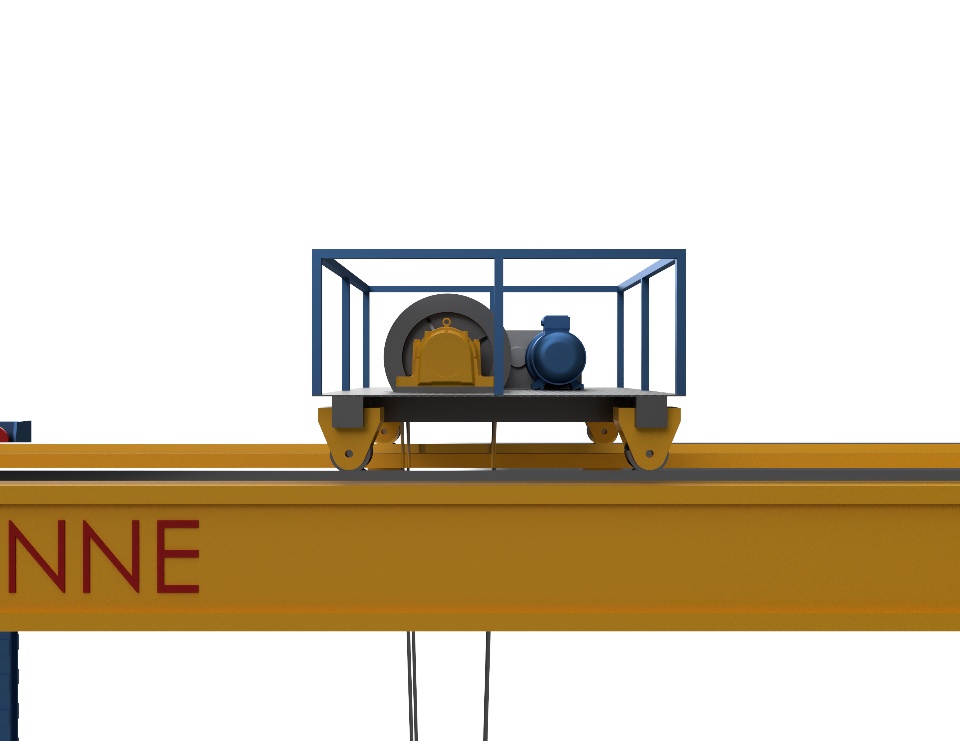

Here are the rendering images of the EOT
