Nikola Tesla's System of Electric Lighting

Nikola Tesla's System of Electric Lighting introduced an innovative method of controlling electric lamps using high-frequency alternating current and an electromagnetic switching mechanism. Unlike conventional lighting systems that relied on simple mechanical switches and direct current distribution, Tesla's design incorporated an electromagnetically operated contact assembly to regulate the flow of electrical energy to multiple incandescent lamps. This invention demonstrated a more reliable and efficient approach to electric lighting control while supporting the practical implementation of alternating current power systems.


The system consists of an alternating current source connected to a pair of electromagnetic coils, a movable armature with an electrical contact, and one or more incandescent lamps connected to the output circuit. When current flows through the upper electromagnetic coil, a magnetic field is generated that actuates the movable contact mechanism. This action controls the electrical circuit, allowing current to pass through the lower coil and subsequently to the connected lamps. The energized lamps produce stable illumination, while the return path completes the electrical circuit back to the power source. The coordinated operation of the electromagnetic coils and switching mechanism provides reliable electrical control with reduced mechanical wear and improved circuit performance.

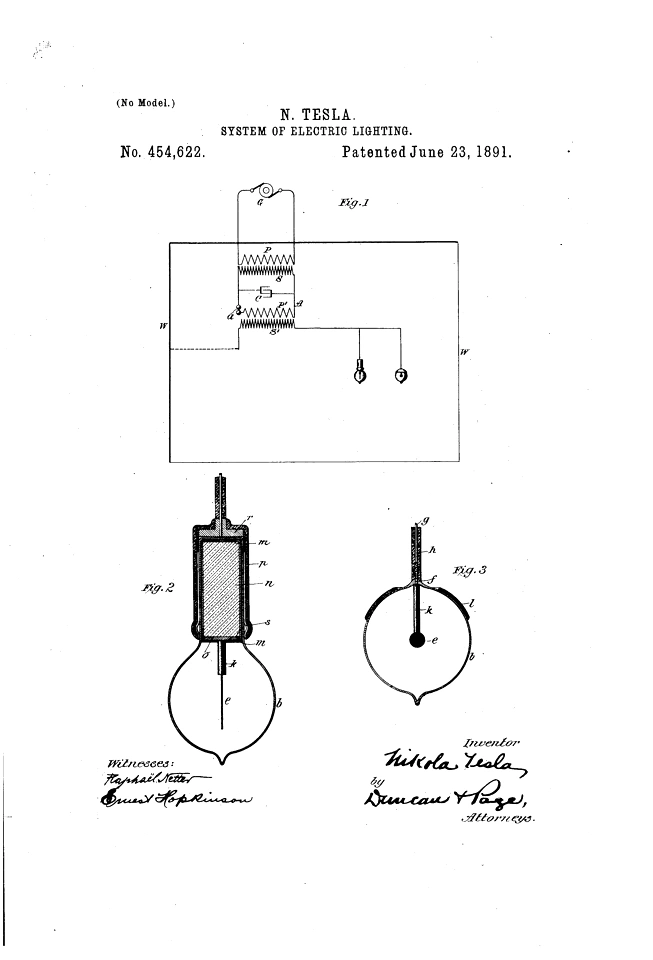

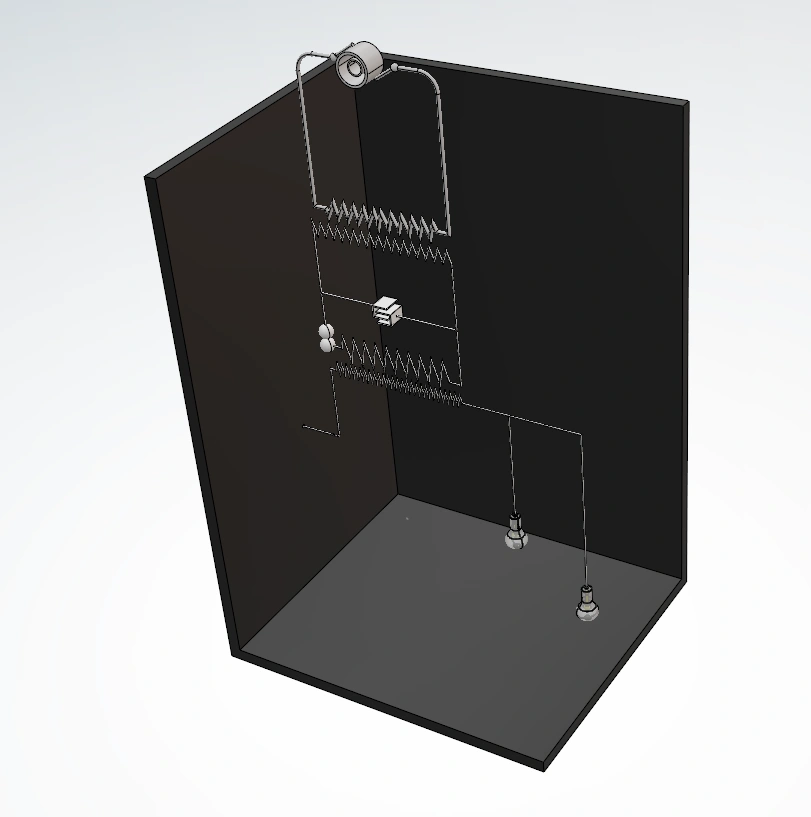

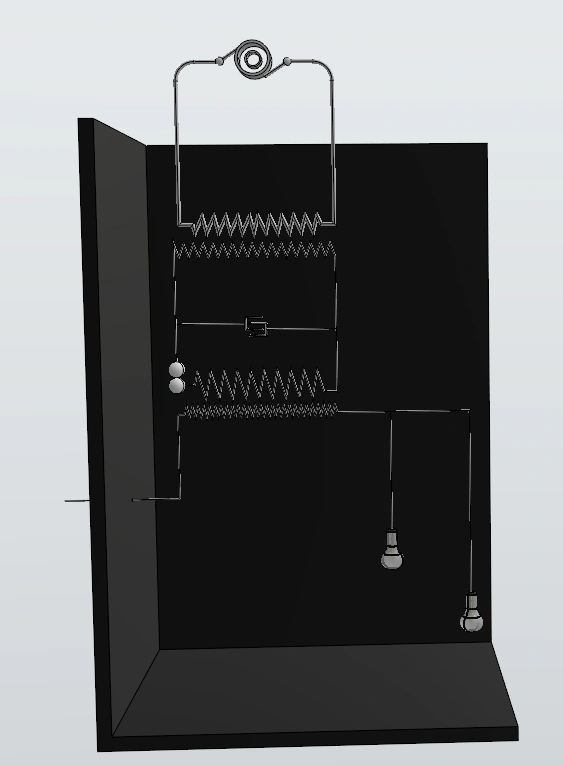

The CAD model illustrates the complete lighting system assembly, including the alternating current source, upper and lower electromagnetic coils, movable contact mechanism, electrical conductors, and incandescent lamps mounted on the output circuit. It demonstrates the complete current flow from the power source through the electromagnetic switching assembly and finally to the lighting load before returning to the supply. The model highlights Tesla's innovative application of electromagnetic control in electric lighting, showcasing one of his early contributions to alternating current switching technology and practical electrical power distribution.

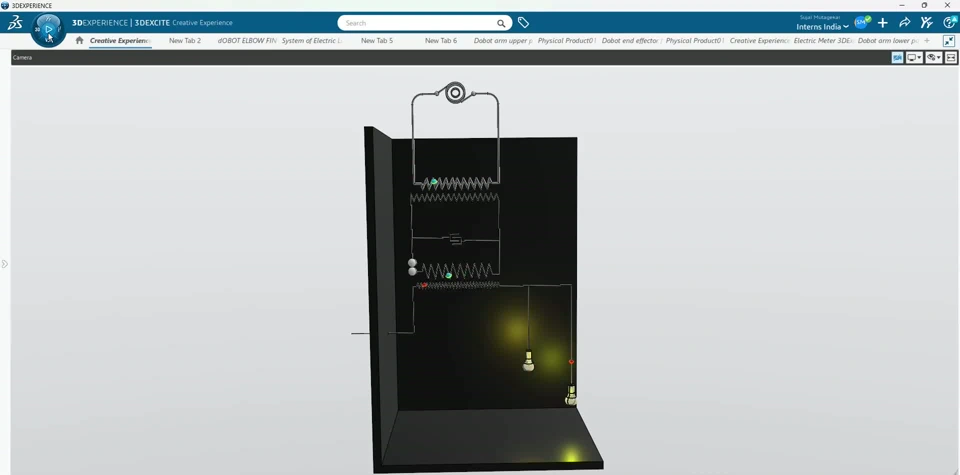

The CAD model was further enhanced using 3DEXCITE Creative Experience to create an interactive animation demonstrating the complete operation of Tesla's System of Electric Lighting. The visualization highlights the current flow, electromagnetic switching mechanism, and lamp illumination through realistic animations and dynamic rendering.
