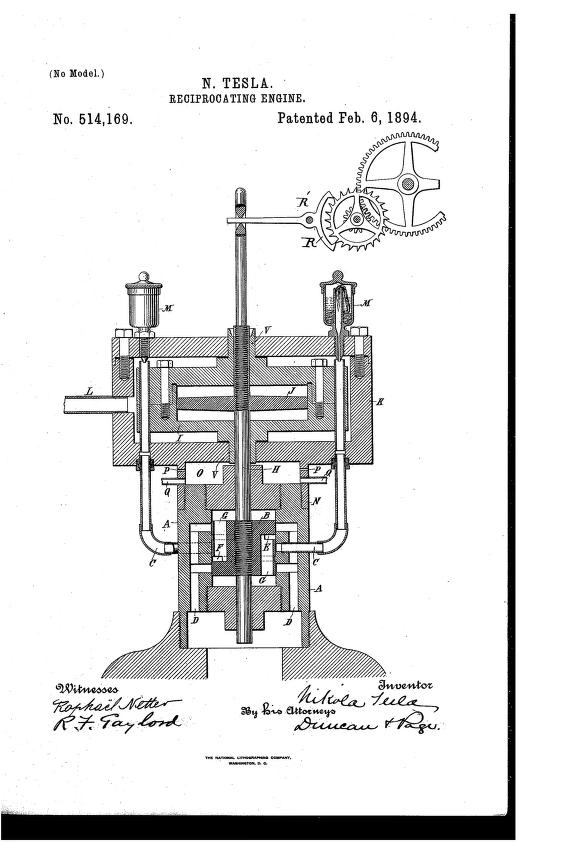

Nikola Tesla's Reciprocating Engine (Patent No. 514,169 | February 6, 1894)

Nikola Tesla's Reciprocating Engine introduced a unique approach to converting the energy of steam or compressed air into mechanical motion. Unlike conventional engines that relied on complex crank mechanisms and numerous moving components, Tesla designed a system that efficiently transformed the linear oscillation of a piston into continuous rotary motion through a compact gear and ratchet arrangement. This reduced mechanical complexity while improving smoothness, reliability, and overall operating efficiency.


The engine operates by admitting pressurized steam or compressed air alternately to either side of the piston, producing a reciprocating motion within the cylinder. This linear movement is transmitted to a vertical piston rod connected to a ratchet-and-gear mechanism, which converts each upward and downward stroke into continuous unidirectional rotation of the output flywheel. By utilizing both strokes of the piston, the engine maximizes energy conversion while minimizing mechanical losses.



Tesla's design also incorporates a carefully engineered valve system that automatically controls the admission and exhaust of the working fluid, ensuring continuous operation without unnecessary complexity. The simplified mechanism reduces wear on moving parts, provides smoother power delivery, and demonstrates Tesla's vision of creating highly efficient mechanical systems using elegant engineering principles.

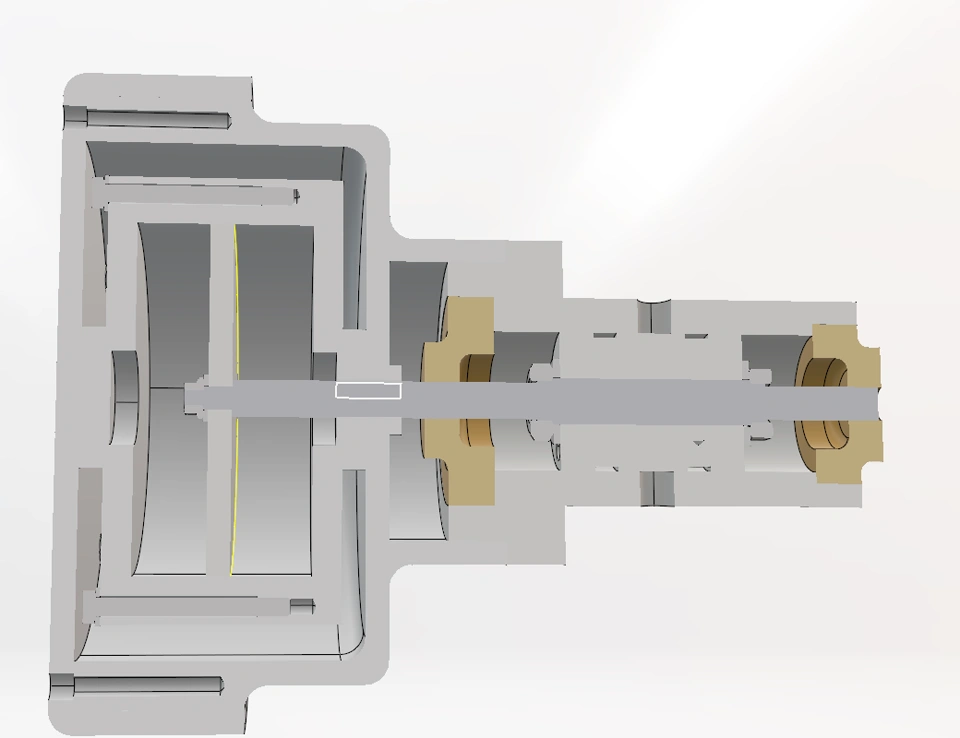

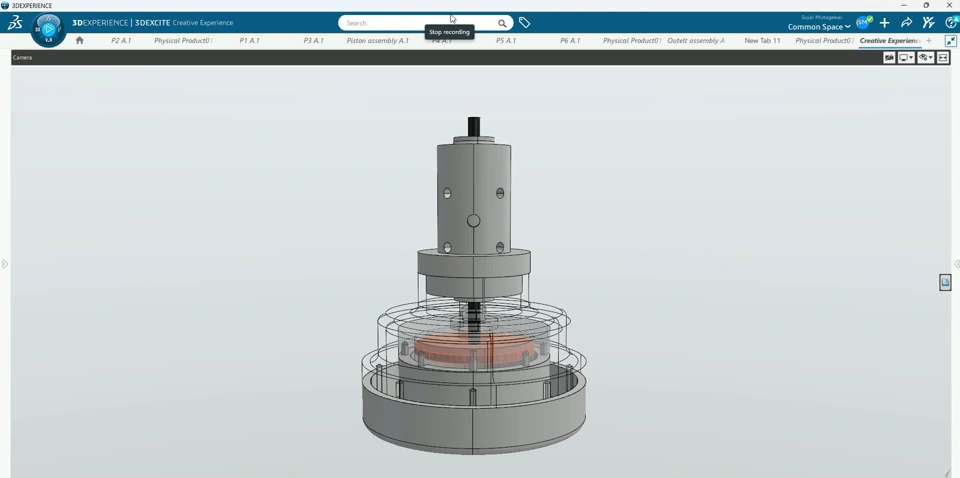

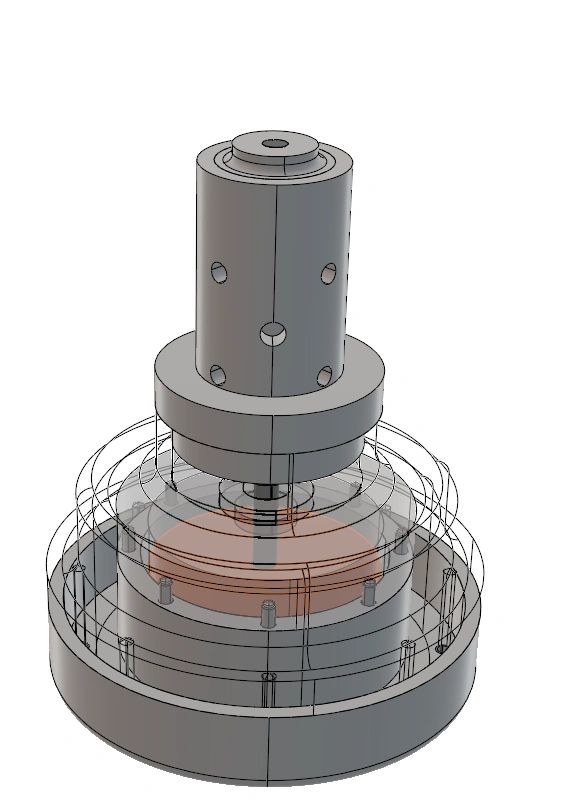

To better understand this remarkable invention, I recreated Tesla's original patent as a fully detailed 3D CAD model and animation using 3DEXCITE Creative Experience. The visualization demonstrates the complete working sequence—from the reciprocating piston and automatic valve operation to the ratchet mechanism and rotating flywheel—bringing a historic 1894 patent to life through modern digital engineering tools.
