Hello everyone and welcome back to Motion Monday! 🚀

We've all seen it before...

A block of mass m placed on an inclined plane at an angle θ.

It's one of the most common problems in Engineering Mechanics, but this week I decided to take it beyond the textbook and see how the theory compares to a SOLIDWORKS Motion simulation.

Three identical Nylon blocks were placed on ramps inclined at 25°, 35°, and 45°, with a coefficient of kinetic friction (μₖ) of 0.10.

Before running the simulation, the acceleration of each block was calculated using:

a = g(sinθ − μₖcosθ)

Theoretical accelerations:

• 25° → 3.26 m/s²
• 35° → 4.82 m/s²
• 45° → 6.24 m/s²

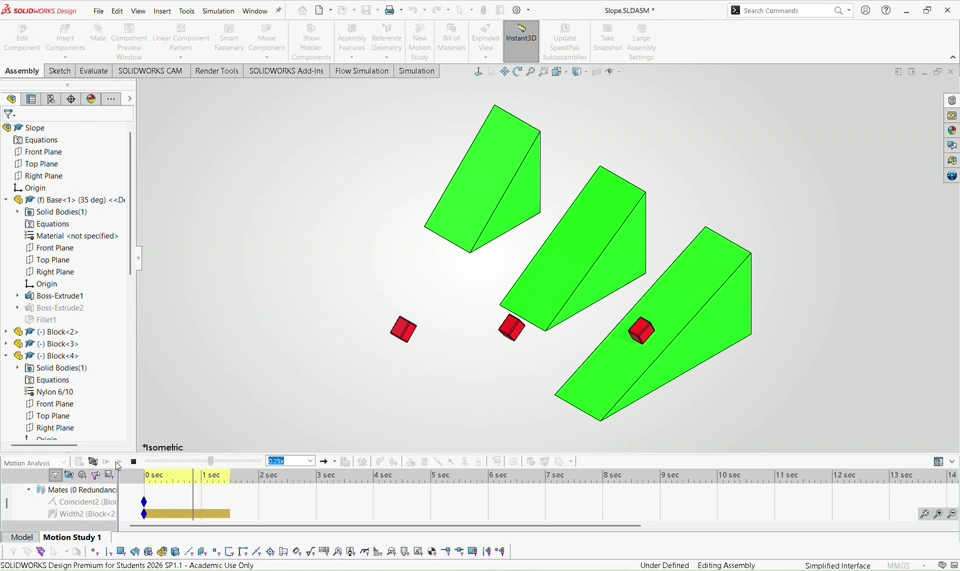

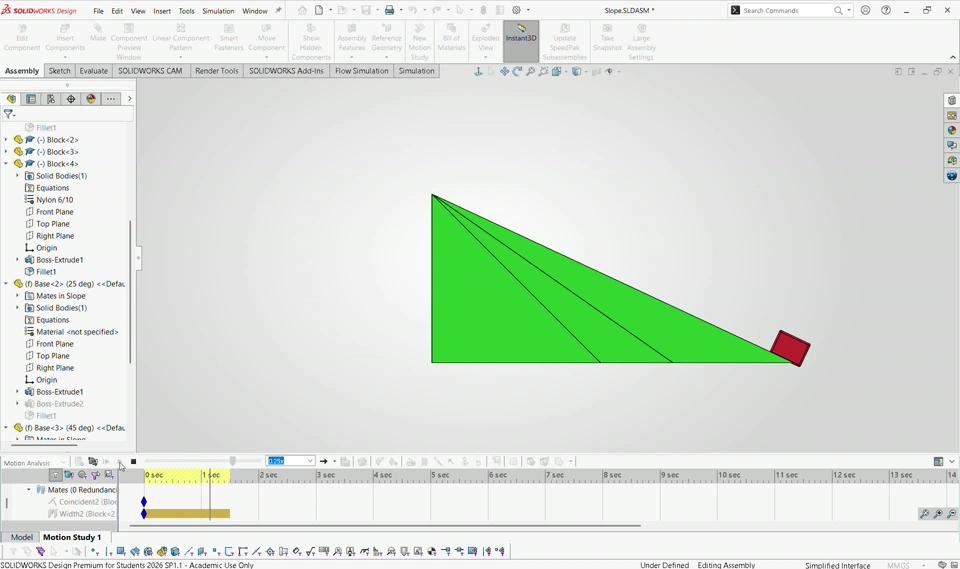

ISOMETRIC VIEW	SIDE VIEW

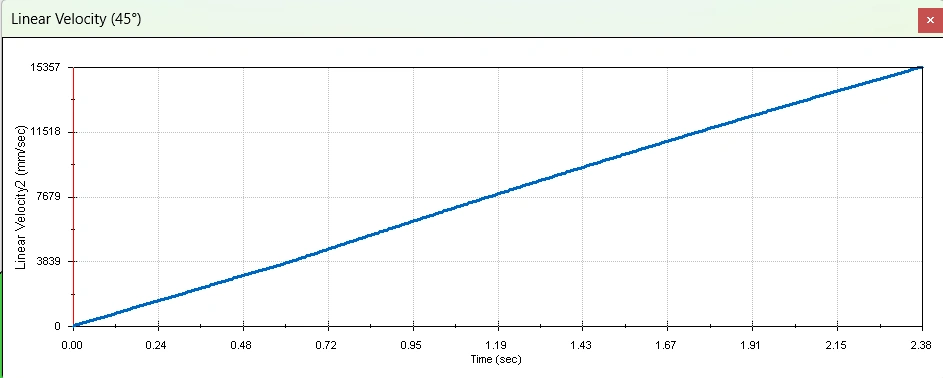

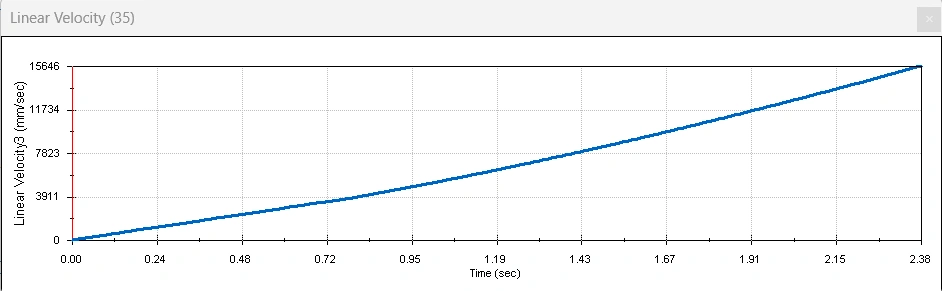

The velocity-time graphs from the Motion study matched these predictions closely.

As expected, the 45° ramp produced the steepest velocity curve, meaning its velocity increased the fastest. The 35° ramp followed, while the 25° ramp showed the slowest increase in velocity.


25° Ramp
35° Ramp
45° Ramp

What I find interesting is how a relatively small change in ramp angle creates a noticeable difference in motion. The calculations predict the behavior, but the simulation makes it much easier to visualize how those differences develop over time.

It's always satisfying when theory and simulation agree.

Have you ever used simulation to verify a problem you first solved by hand?

See you next Motion Monday! ⚙️
